23. Cockpit Sunshade (oponal)
If installed, an oponal cockpit sunshade is available to provide protecon from the sun. The cockpit
sunshade consists of a rail on the hardtop and a canvas.
Operaon
To extend the sunshade, simply push the pins on the back of the hardtop rails and slide the sunshade
rail out. The pins will re-engage and lock the rail when fully extended. To install the sunshade canvas,
slide the welng (piping) located on front edge of the sunshade through the sunshade track installed
on the hardtop. Next connect the sunshade to the sunshade rail using the zippers on the edge of the
sunshade. Finally, connect the sunshade straps to the eyelets on the deck.

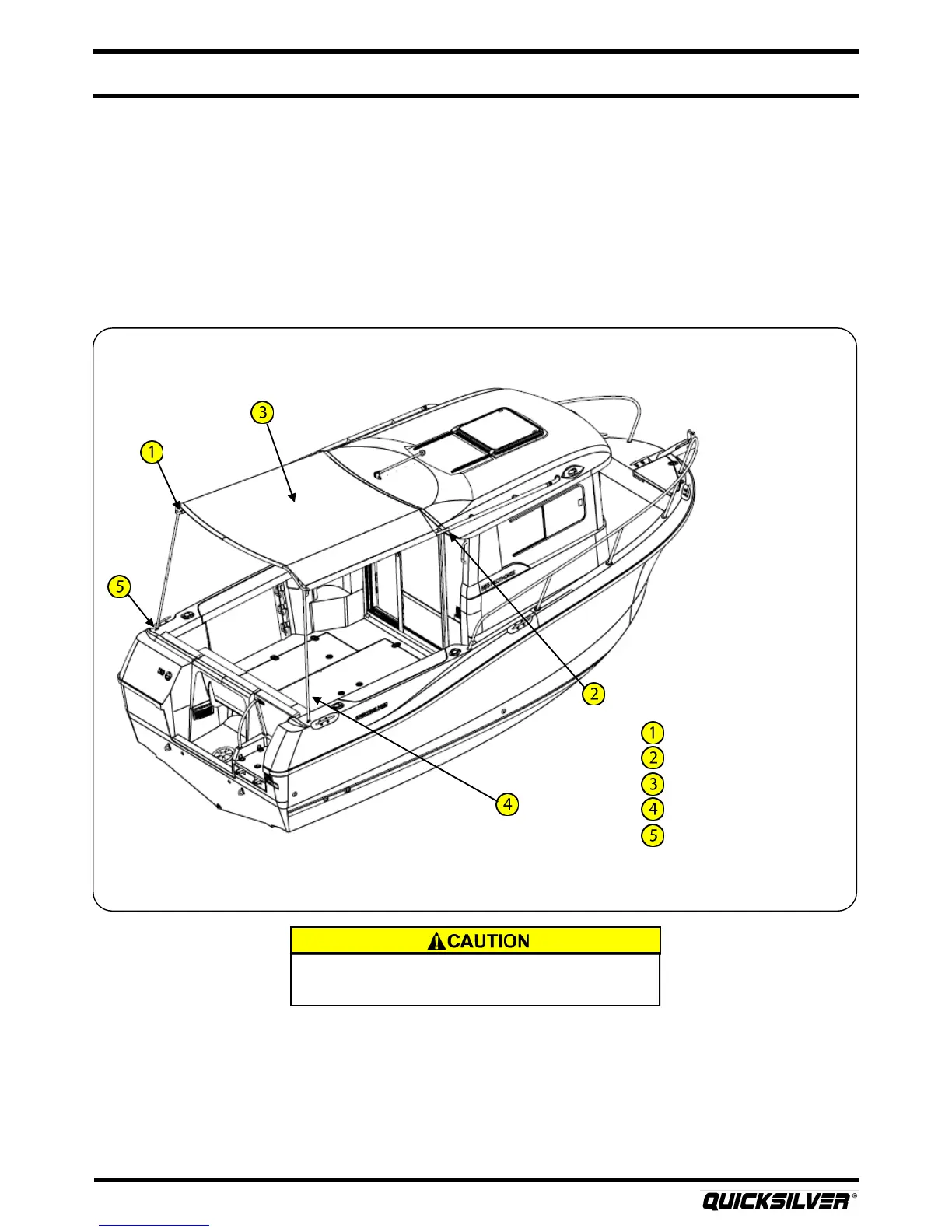

Cockpit Sunshade
In rough seas, the sunshade should be stored to avoid
damage to the rail and or canvas.
Sunshade rail
Pull pin (P&S)
Sunshade canvas
Sunshade strap (P&S)
Deck eyelets
