Instruction Book
9828 0934 73 29

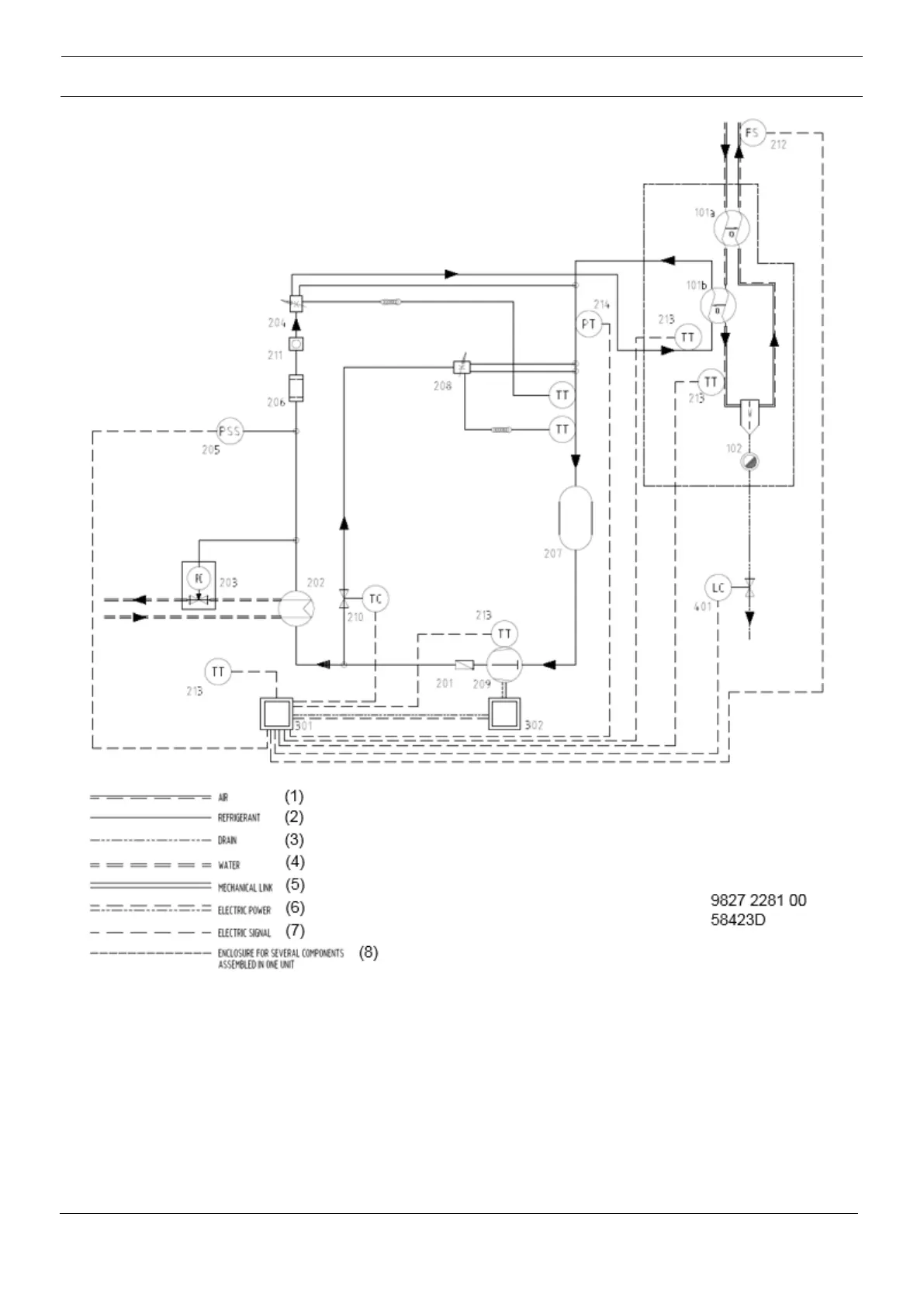

Air and refrigerant flow diagram for water-cooled QPVS-650 (ES 310 VSD), QPVS-850 (ES 410 VSD) and
QPVS-1050 (ES 510 VSD)
