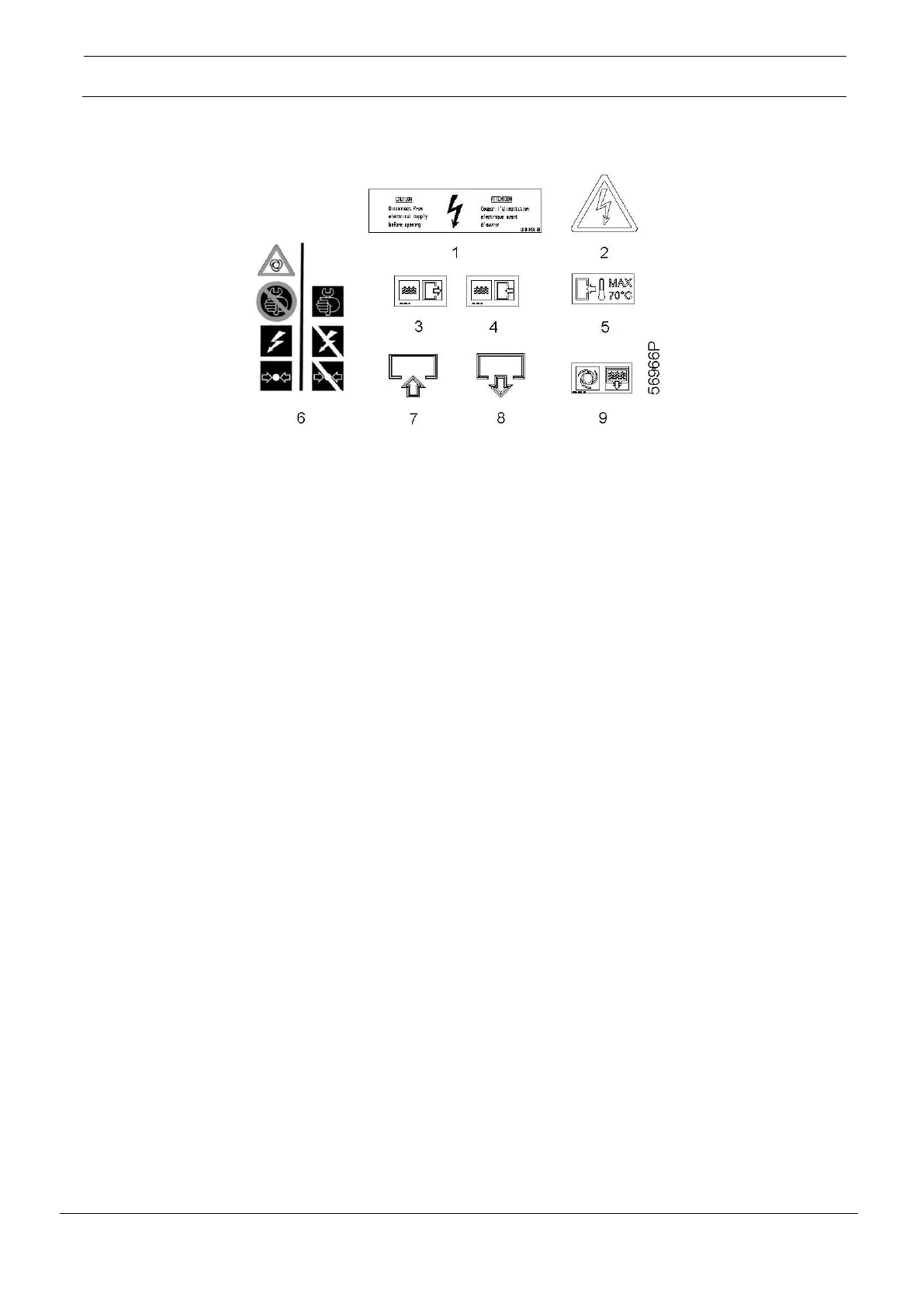

4.5 Pictographs
Explanation of pictographs
1. Disconnect from electrical supply before opening (Only for 60 Hz units)
2. Warning, voltage
3. Cooling water outlet (Only for water-cooled dryers)
4. Cooling water inlet (Only for water-cooled dryers)
5. Maximum air inlet temperature of 70 ˚C (158 ˚F)
6. Switch off and depressurise the dryer before starting maintenance or repair
7. Compressed air inlet
8. Dry air outlet
9. Automatic condensate drain
