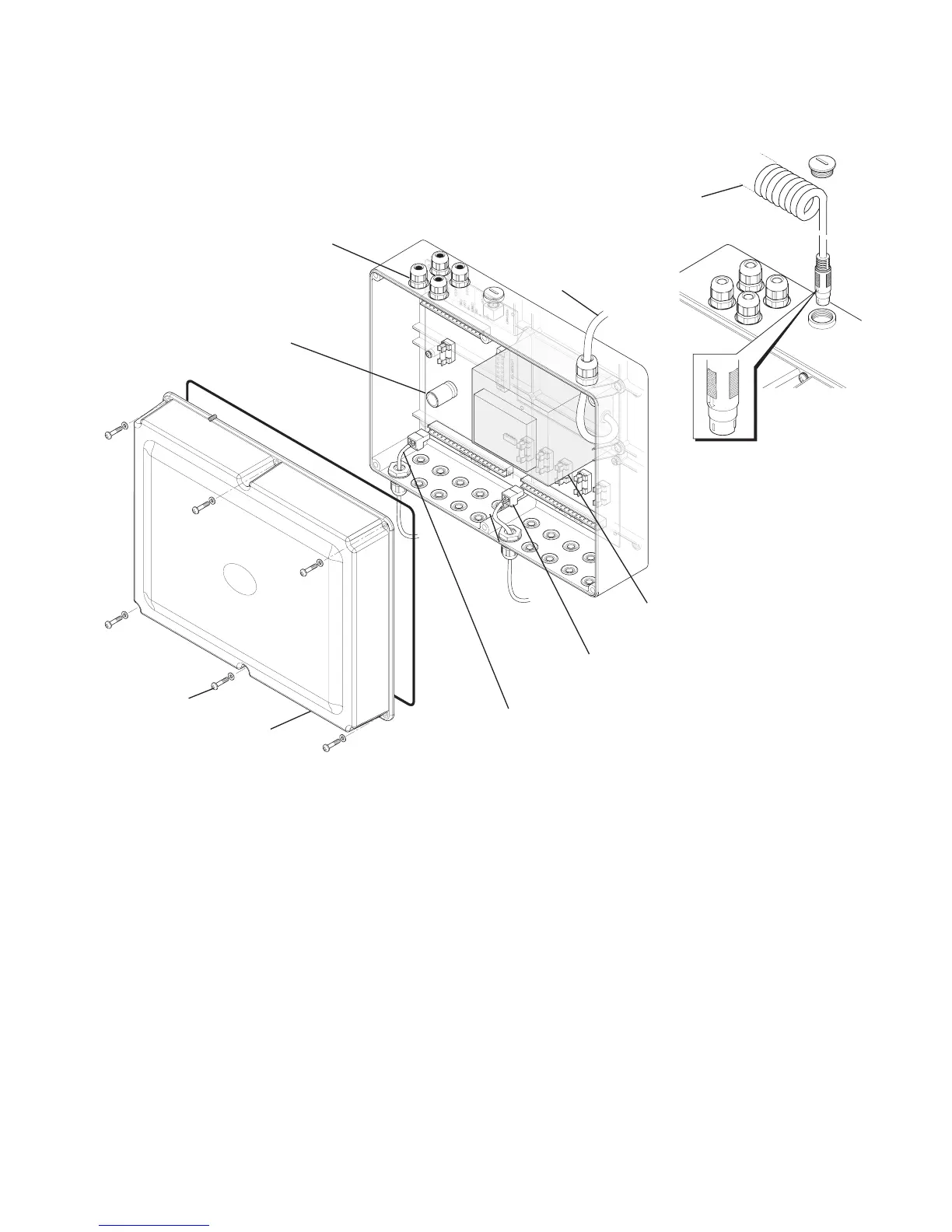

Installation of the Rada Pulse Control Box
Plug-in Connections
to Solenoid Valves
Plug-in Connections
to Pulse Sensors
Transformer
PCB
Cover Screws
Cover
Connections to Auxiliary Units
e.g. Fan, Light , Disinfection
(refer to section: 'Description,
4. Accessories, 4.1 Rada Pulse
Relay Box')
Connection to Mains
Power Supply
7. Connect the transformer to the mains electrical supply.
8. The control box will now require commissioning, refer to section: 'Commissioning
/ Programming'. Factory setting is 'Showers On' for 30 seconds).
Connection to Hand
Held Programmer
To Next Page
