rada Pulse Series User Manual

31
3.2 SV2022/SV2028 Solenoid Valve
Important! The SV2022 and SV2028 Solenoid Valves must be tted horizontally
(with the Solenoid Coil at the top).
1. Connect the pipework to the inlet/outlet of the valve (Refer to illustration). We
recommend the use of union type ttings (not supplied) to ease removal of the
valve if required.
2. Unscrew the electrical connector retaining screw and remove the electrical
connector. Remove the retaining screw from the connector.
3. Lever the insert out of the electrical connector using a small screwdriver.
4. Fit the electrical wiring through the cable gland and connect it to the terminals
in the insert. Wiring polarity is not important.
5. Reassemble the electrical connector and ret it to the solenoid coil. Tighten
the retaining screw.

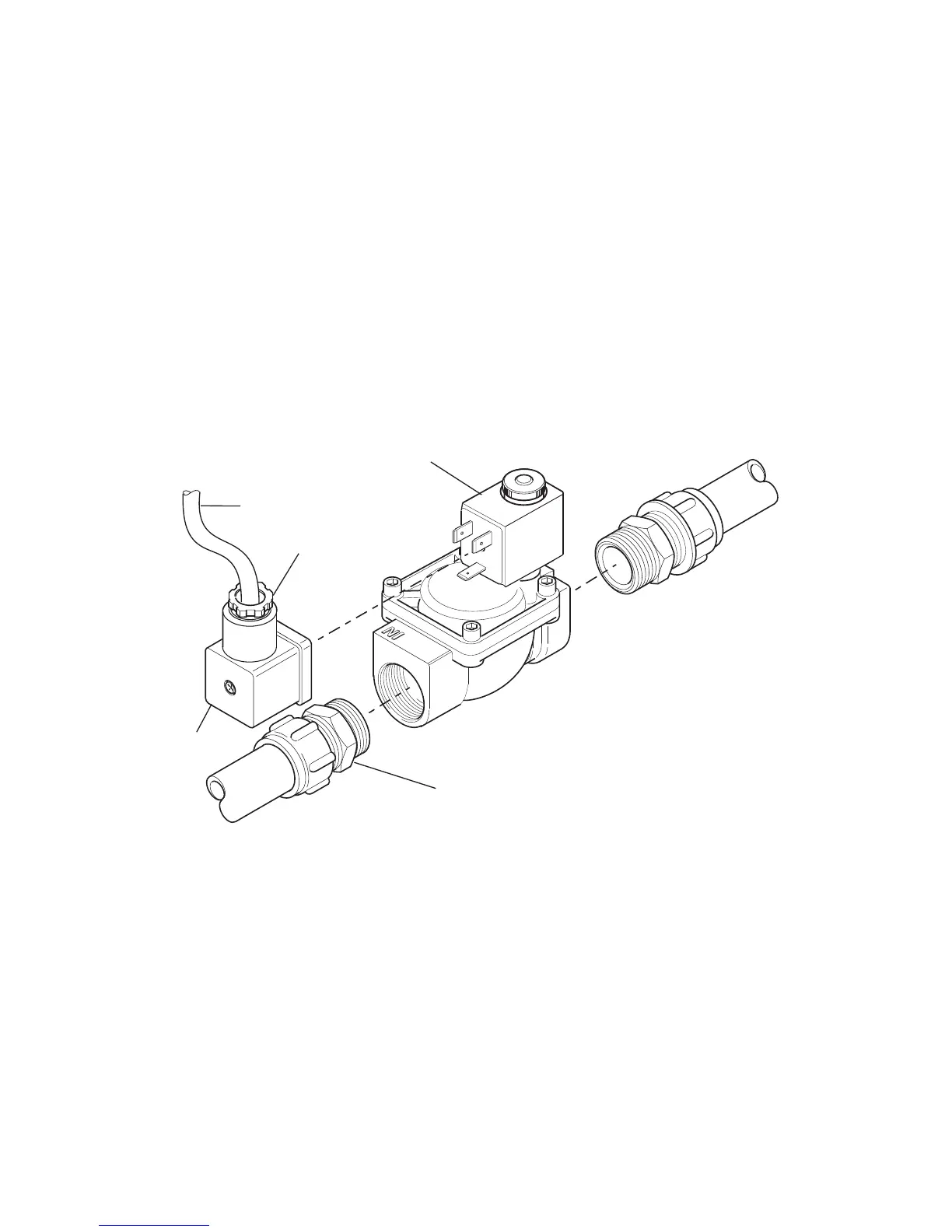

Installation of SV2022/SV2028 Solenoid Valves
Electrical
Connector
Solenoid Coil
Cable Gland
Electrical Wiring
Union Type Fitting
