Extension cable - Optional Accessory
3.0 metres of sheathed cable and two 3M
TM
connectors. Use to extend any Rada
Pulse sensor to a maximum of 6.0 metres.
3. Solenoid Valves
General
Operating voltage (see note) 10.2 to 13.5 Volts AC.
Note! Operation over the full range of pressure and operating voltage is guaranteed
for uid temperature up to 70°C.
Between 70°C and 90°C the following restrictions apply:
The installer must ensure that a minimum voltage of 12 V is present across the coil
to make sure that the valve will open over the full pressure range.
Maximum ambient temperature 40°C.
Maximum uid temperature for 100% full range operation 70°C.
Maximum combined uid and ambient temperature 130°C.
3.1 Rada SV1015 (HP) Solenoid Valve
Supply Voltage: 12 V AC, 50/60 Hz.
Rating: 5 VA.
Body Material: PA66 Reinforced Fibreglass
Connections: 15 mm compression connections.
1/2" BSP union connections (with at-faced inserts).
Min / Max Pressures: 20 to 1000 kPa (0.2 to 10 bar).
Inlet Isolating Valve: Brass ball valve (supplied).
Type: Servo assisted.
2.5 m
0.4 m
0.4 m
0.4 m
2.5 m
3.0 m
Sensor detection area for single
urinal applications (125 sensor)
Sensor detection area for group
urinal applications (126 sensor)
Sensor detection area for single
basin applications (124 sensor)
2.5 m Max

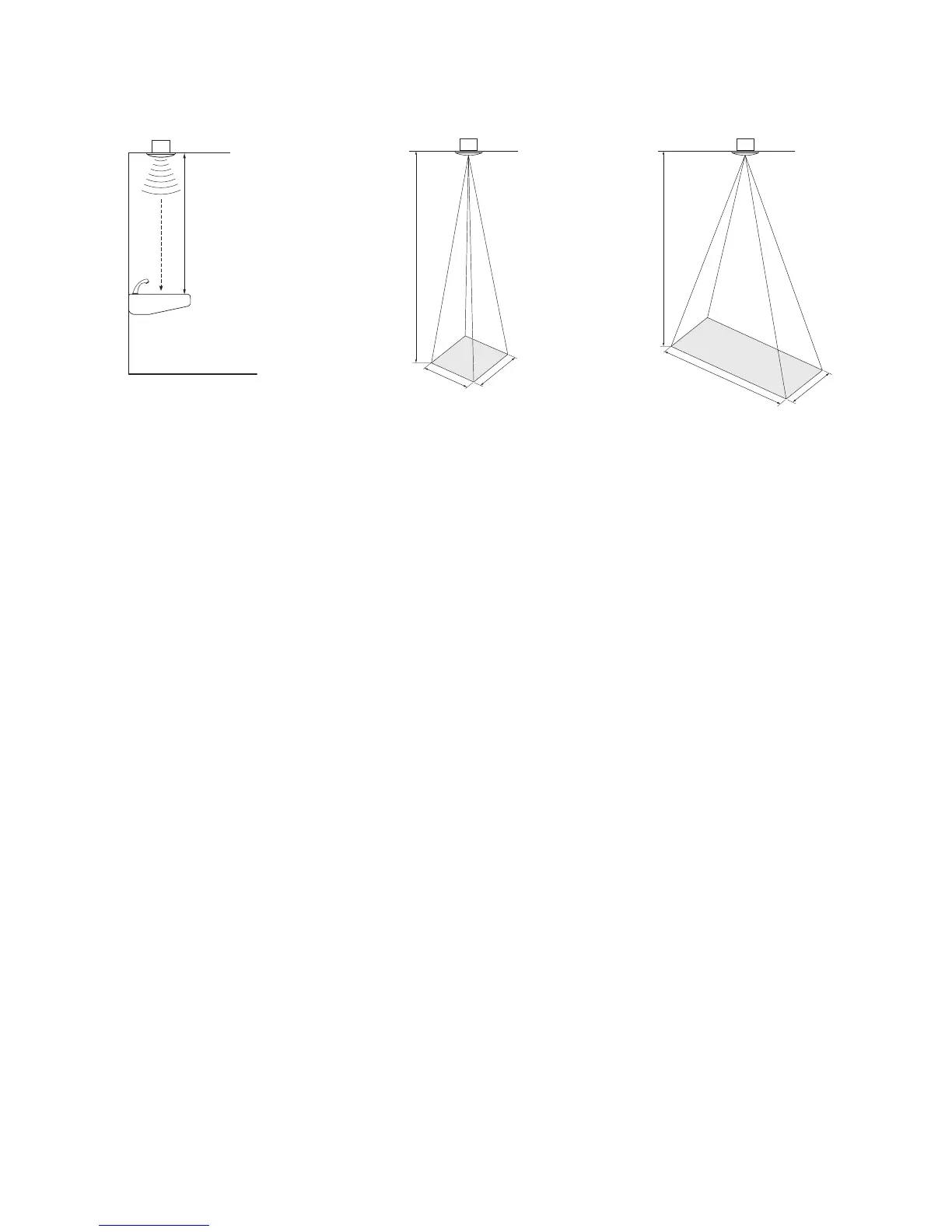

124, 125 and 126 Sensor Detection Area Diagrams
To Next Page
