Installation of SV1015 Solenoid Valve
3. Install the Solenoid Valves
3.1 Rada SV1015 (HP) Solenoid Valve
1. Connect the pipework to the inlet/outlet ttings.
For 15 mm compression connections: Use the compression nuts and olives
supplied.
For 1/2" BSP union connections: Fit the at-faced inserts (supplied) to the
inlet/outlet ttings.
Note! Make sure that the water ow follows the directional arrow indicated on
the valve.
2. To connect to the pipework, offer up the pipes to the inlet/outlet of the valve
and hand tighten the union nuts. Hold the adaptor when tightening the union
nuts so that you do not twist or damage the valve.
3. Unscrew the electrical connector retaining screw and remove the electrical
connector. Remove the retaining screw from the connector.
4. Lever the insert out of the electrical connector using a small screwdriver.
5. Fit the electrical wiring through the cable gland and connect it to the terminals
in the insert. Wiring polarity is not important.
6. Reassemble the electrical connector and ret it to the solenoid coil. Tighten
the retaining screw.
Note! The direction of the electrical connector can be moved by repositioning
the solenoid coil. Push down, rotate and lift the coil to remove. Reposition and
ret in reverse order.
Important! Cross bond copper pipework to maintain earth continuity.

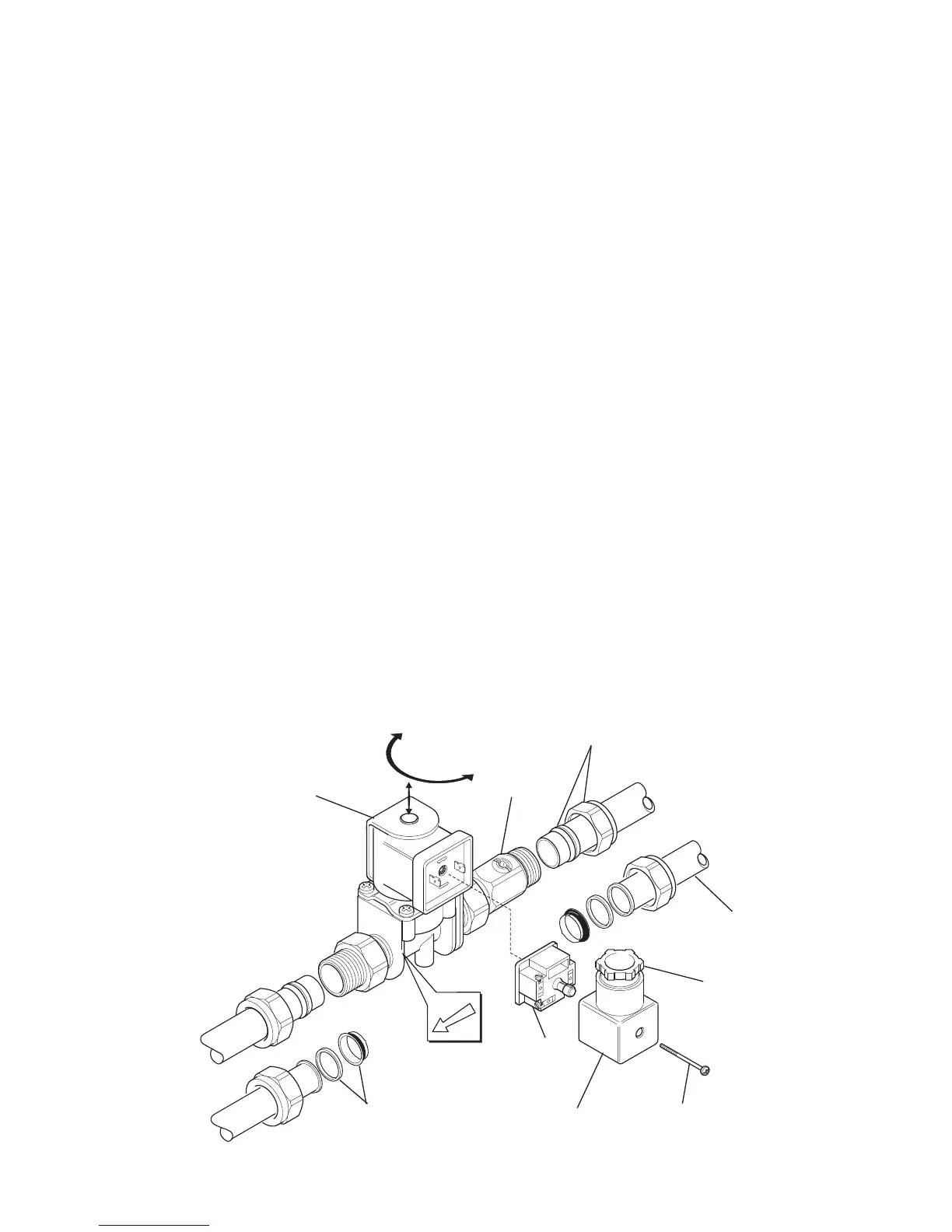

15 mm Compression
Nut and Olive
End Feed
Pipe
Flat-faced Insert
Isolating
Valve
Direction of
Flow Arrow
Solenoid Coil
Push down, rotate and lift to
move the electrical contacts
Electrical Connector
Insert
Retaining
Screw
Cable Gland
