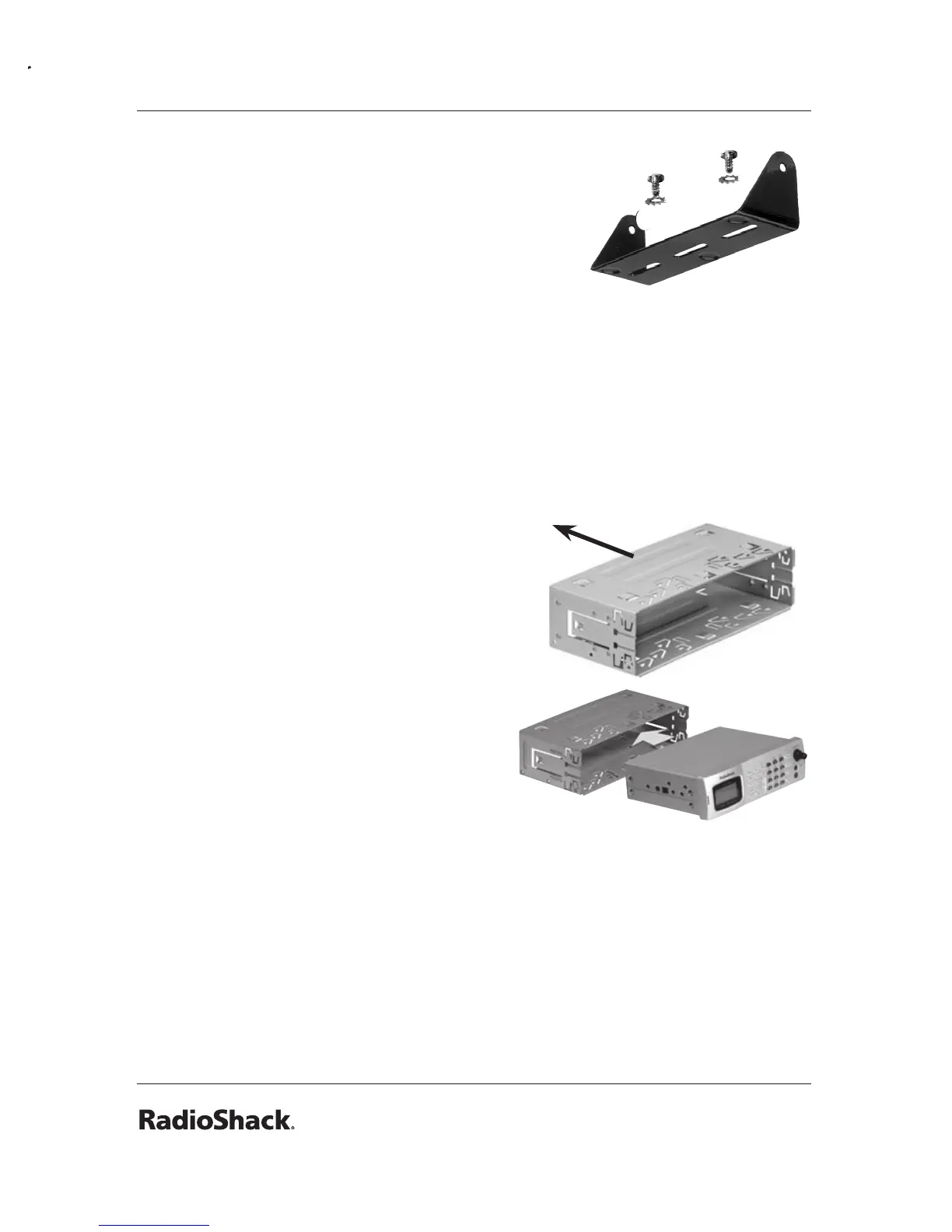

3. Remove the paper backing from each
washer and stick one inside of each
bracket’s ear, aligning the washer’s hole
with the bracket’s hole.
4. Attach the mounting bracket to your
vehicle’s surface using the supplied
screws and lockwashers.
Dashboard Installation
If you are unsure how to install your scanner in your vehicle, consult
your automobile manufacturer, dealer, or a qualied installer.
To mount in your dashboard, you must connect an external
antenna and speaker.
1. Before installing, conrm your
scanner ts in the desired
mounting area and you have all
the necessary materials. Your
scanner requires a 2 x 7
1
/
8
x 5
5
/
16
inch (50 x 180 x 135 mm) space.
2. Remove the four rear screws and
pull off the black case before
installing your scanner.
3. Install the DIN sleeve into the
opening in your dashboard, lip
facing out.
4. Push out the top and bottom tabs to hold the sleeve rmly in
place.
5. Slide the scanner into the sleeve until it locks in place.
