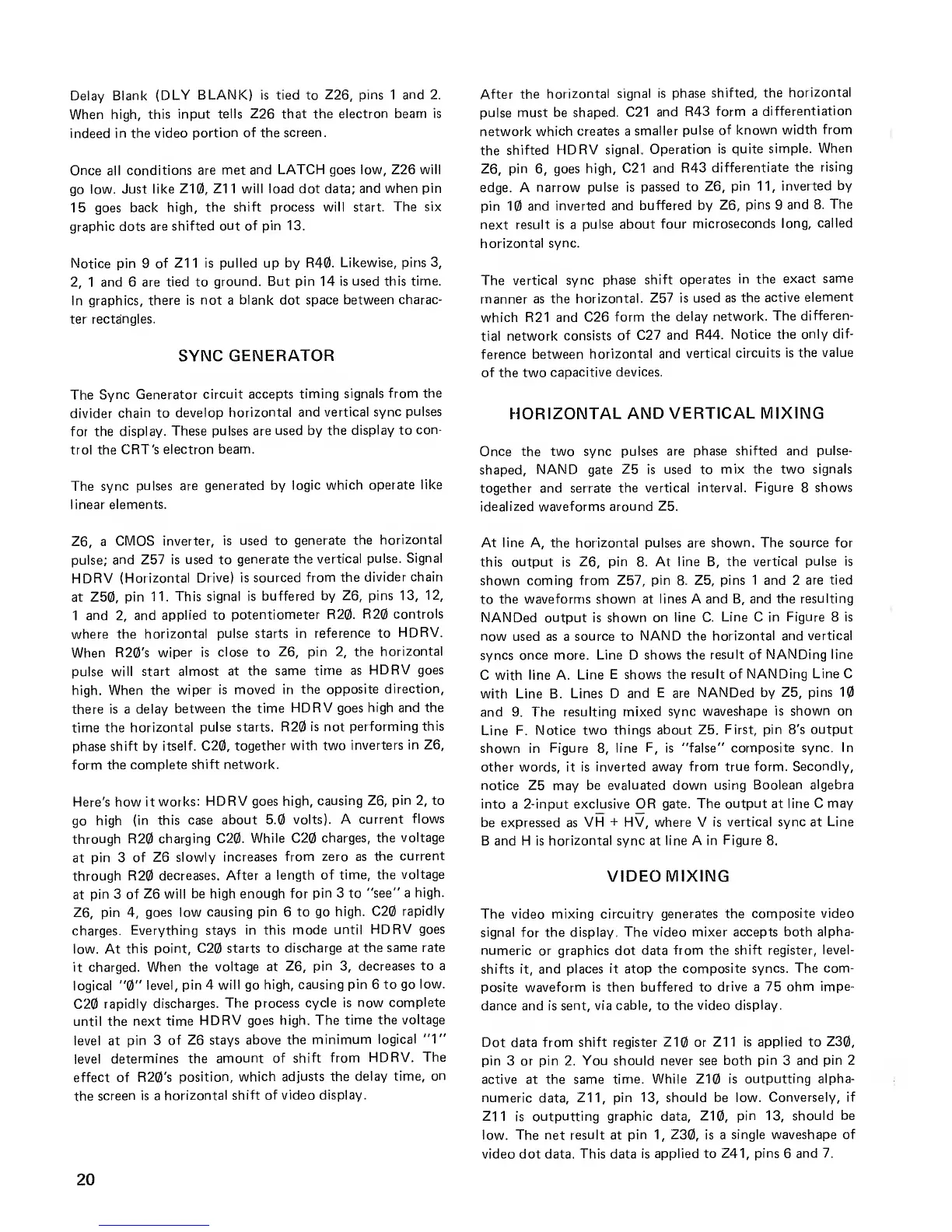

Delay Blank
(DLY BLANK) is tied to
Z26,
pins 1
and 2.
When high, this
input
tells Z26 that the electron beam is
indeed in
the video
portion of the
screen.
Once all
conditions
are met and
LATCH
goes
low, Z26 will
go
low.
Just like
Z10, Z1
1
will load dot data; and
when pin
15 goes
back high,
the shift process will start.
The six
graphic dots
are shifted
out of pin 13.
Notice
pin
9 of
Z1 1 is pulled up by R40.
Likewise, pins
3,
2,
1
and 6 are
tied
to
ground.
But pin 14 is used this
time.
In graphics,
there is not a
blank dot space between
charac-
ter
rectangles.
SYNC
GENERATOR
The
Sync
Generator
circuit accepts
timing signals
from the
divider
chain to
develop
horizontal
and vertical
sync pulses
for the
display.
These pulses
are used by
the display to
con-
trol the
CRT's
electron beam.
The
sync pulses are
generated
by logic
which operate
like
linear elements.
Z6, a
CMOS inverter,
is used to
generate the
horizontal
pulse;
and Z57 is
used
to
generate
the
vertical pulse.
Signal
HDRV
(Horizontal
Drive)
is
sourced
from the
divider chain
at Z50, pin
11. This
signal is
buffered by
Z6,
pins
13,
12,
1 and
2,
and
applied to
potentiometer R20.
R20 controls
where the
horizontal
pulse starts
in reference to
HDRV.
When R20's
wiper is
close to
Z6,
pin
2,
the
horizontal
pulse
will start
almost at the
same time as
HDRV goes
high. When
the wiper
is moved in
the opposite
direction,
there is a delay
between
the time
HDRV goes
high and the
time the
horizontal pulse
starts. R20
is
not
performing this
phase
shift by
itself. C20,
together with two
inverters
in Z6,
form
the
complete shift network.
Here's how it
works:
HDRV goes high,
causing
Z6, pin
2,
to
go
high (in
this
case about 5.0
volts).
A current
flows
through R20
charging C20.
While C20
charges, the
voltage
at
pin 3 of
Z6 slowly
increases
from zero as
the
current
through R20
decreases. After a
length of
time, the
voltage
at
pin
3
of
Z6
will
be high enough for
pin 3 to
"see" a
high.
Z6, pin
4,
goes low
causing pin 6 to go
high.
C20
rapidly
charges.
Everything
stays in this
mode until
HDRV
goes
low. At
this point,
C20 starts to
discharge at
the same
rate
it charged.
When the
voltage at
Z6, pin
3,
decreases to a
logical
"0"
level, pin
4 will
go
high,
causing pin
6
to go
low.
C20
rapidly
discharges.
The process
cycle is now
complete
until the
next time
HDRV goes high.
The time
the voltage
level at pin
3 of
Z6 stays above
the
minimum logical
"1"
level
determines the
amount of
shift from
HDRV.
The
effect
of
R20's
position,
which adjusts the
delay time,
on
the
screen is a
horizontal
shift of video display.
After
the
horizontal
signal is phase
shifted, the
horizontal
pulse
must be shaped.
C21
and R43
form a
differentiation
network
which creates a
smaller
pulse
of known
width from
the
shifted
HDRV signal.
Operation is
quite simple.
When
Z6, pin
6,
goes
high,
C21 and R43
differentiate the
rising
edge.
A narrow
pulse is
passed to
Z6, pin
11,
inverted
by
pin 10
and inverted
and
buffered by
Z6, pins 9
and 8.
The
next
result is a
pulse about
four
microseconds long,
called
horizontal sync.
The
vertical sync phase
shift
operates
in the
exact
same
manner
as the
horizontal.
Z57 is
used
as
the
active
element
which R21 and
C26 form
the
delay network.
The
differen-
tial network
consists of
C27 and
R44.
Notice the
only
dif-
ference between
horizontal
and
vertical
circuits is the
value
of the two
capacitive
devices.
HORIZONTAL AND
VERTICAL
MIXING
Once the two sync
pulses are phase shifted and
pulse-
shaped,
NAND gate
Z5
is
used
to
mix the two signals
together and serrate
the vertical
interval. Figure
8
shows
idealized waveforms around
Z5.
At line A, the horizontal
pulses
are shown. The source for
this output is
Z6,
pin
8. At line B, the
vertical pulse is
shown coming from
Z57, pin 8. Z5, pins 1 and 2
are tied
to
the waveforms shown at
lines A and B, and
the resulting
NANDed output is shown
on line C.
Line C in Figure 8 is
now used as a
source
to
NAND the
horizontal and vertical
syncs once more. Line D shows
the result of
NANDing
line
C with line A.
Line
E shows the result
of NANDing
Line C
with Line B.
Lines D and
E
are
NANDed by
Z5, pins
10
and
9. The resulting
mixed sync
waveshape
is shown on
Line
F. Notice
two things
about Z5.
First, pin 8's output
shown in
Figure
8,
line
F,
is "false"
composite sync. In
other words, it
is inverted away from true form.
Secondly,
notice Z5
may
be evaluated down
using Boolean
algebra
into
a
2-input exclusive OR
gate. The output at line
C may
be expressed as
VH
+
HV, where V
is vertical sync at Line
B and H is
horizontal sync
at
line A in
Figure
8.
VIDEO
MIXING
The video mixing circuitry
generates the
composite video
signal
for
the display.
The video mixer accepts
both alpha-
numeric or graphics dot
data from the shift
register, level-
shifts it, and places
it
atop
the composite
syncs. The com-
posite waveform is then
buffered
to
drive a 75
ohm impe-
dance and is sent,
via cable, to the
video display.
Dot
data
from shift register
Z10
or
Z11 is applied to
Z30,
pin 3 or pin 2.
You
should
never see both pin 3 and
pin 2
active at the same
time. While Z10 is
outputting alpha-
numeric data,
Z11, pin
13,
should be low.
Conversely, if
Z11
is
outputting graphic data,
Z10, pin
13,
should be
low. The
net
result at pin
1,
Z30,
is a
single waveshape of
video dot data.
This
data
is applied to
Z41, pins
6
and 7.
