12 RD1000™ Operation Manual
Section 3 Getting Started
3.1 Using the Display Unit
The Display Unit has 8 buttons numbered 1 to 8, larger Pause and
Camera buttons as well as buttons to increase and decrease the
screen Contrast and Brightness.
Turn on the system by pressing any button on front of the Display
Unit. Both red lights will illuminate and after few seconds, the
splash screen and menu will appear.

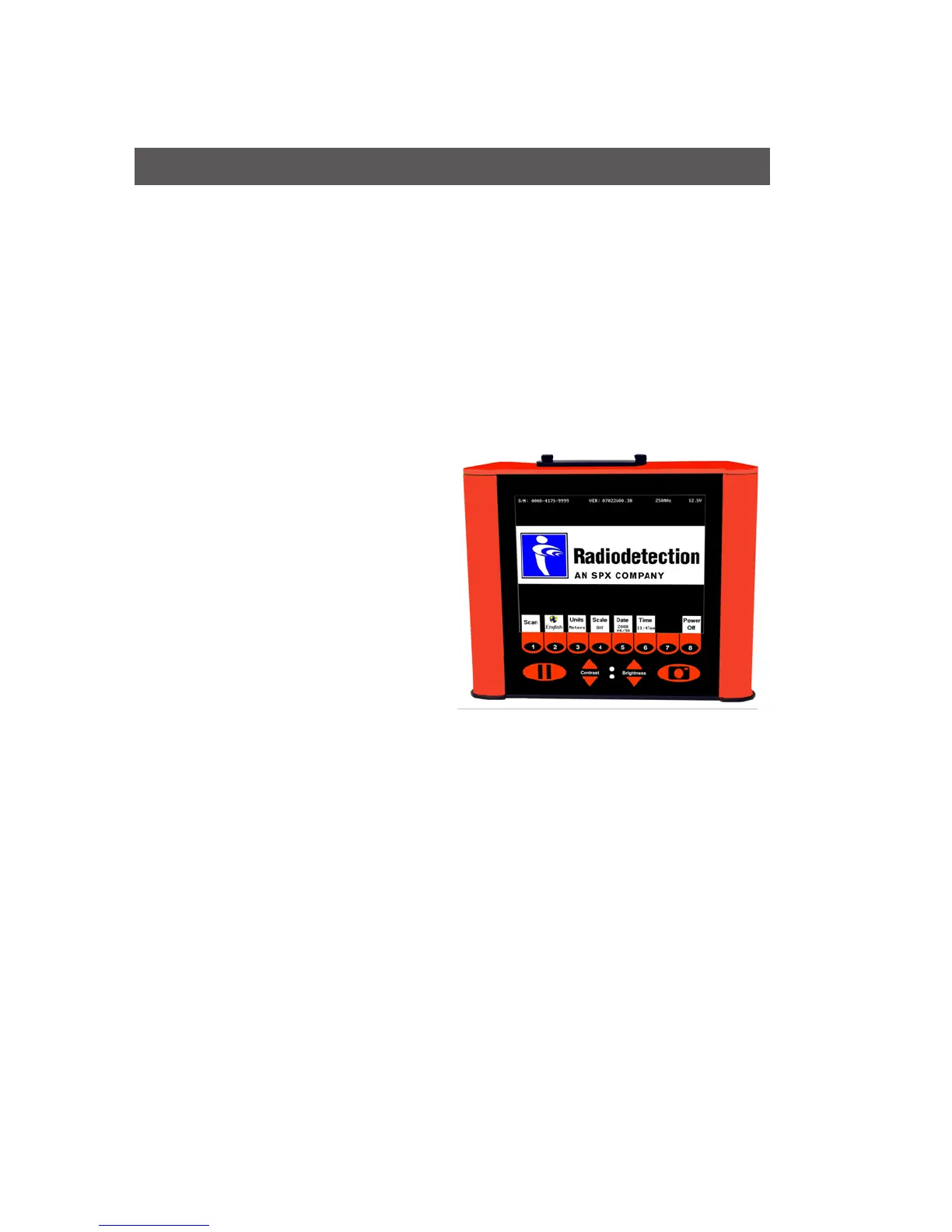

Figure 3.1: display
unit
The menu option on the screen
above the button indicates its
function.
To operate the system:
The first screen displayed
when the system is
powered on is the System
Settings Screen. It has
options to start scanning
or change settings such
as language, measurement
units, date and time (see
Section 3.2).
1.
To start scanning, press Scan to display the Scanning Screen.
When the scale appears on the right side of the screen, push
the cart. The data image scrolls across the screen from the
right (see Section 3.3).
Stop and back up to see the Locating Screen (see Section
3.4) to mark the exact position of a target on the ground and
to access the menu to estimate its depth.
2.
3.
