RD1000™ Operation Manual 13
When you push the cart forward again and reach the point
where you originally stopped and backed up, the system will
automatically start scanning again. Or press Clear Screen to
start fresh.
At any time press the Pause button to change Depth, Color,
Gain etc. using the Image Settings Screen (see Section 3.5)
then press Scan (or Pause again) to continue.
If the Display Unit has Compact Flash disk, pressing the
Camera button saves the current screen image to the
Compact Flash. Later, transfer images to a PC for re-plotting
and printing.
3.2 System Settings Screen
4.
5.
6.

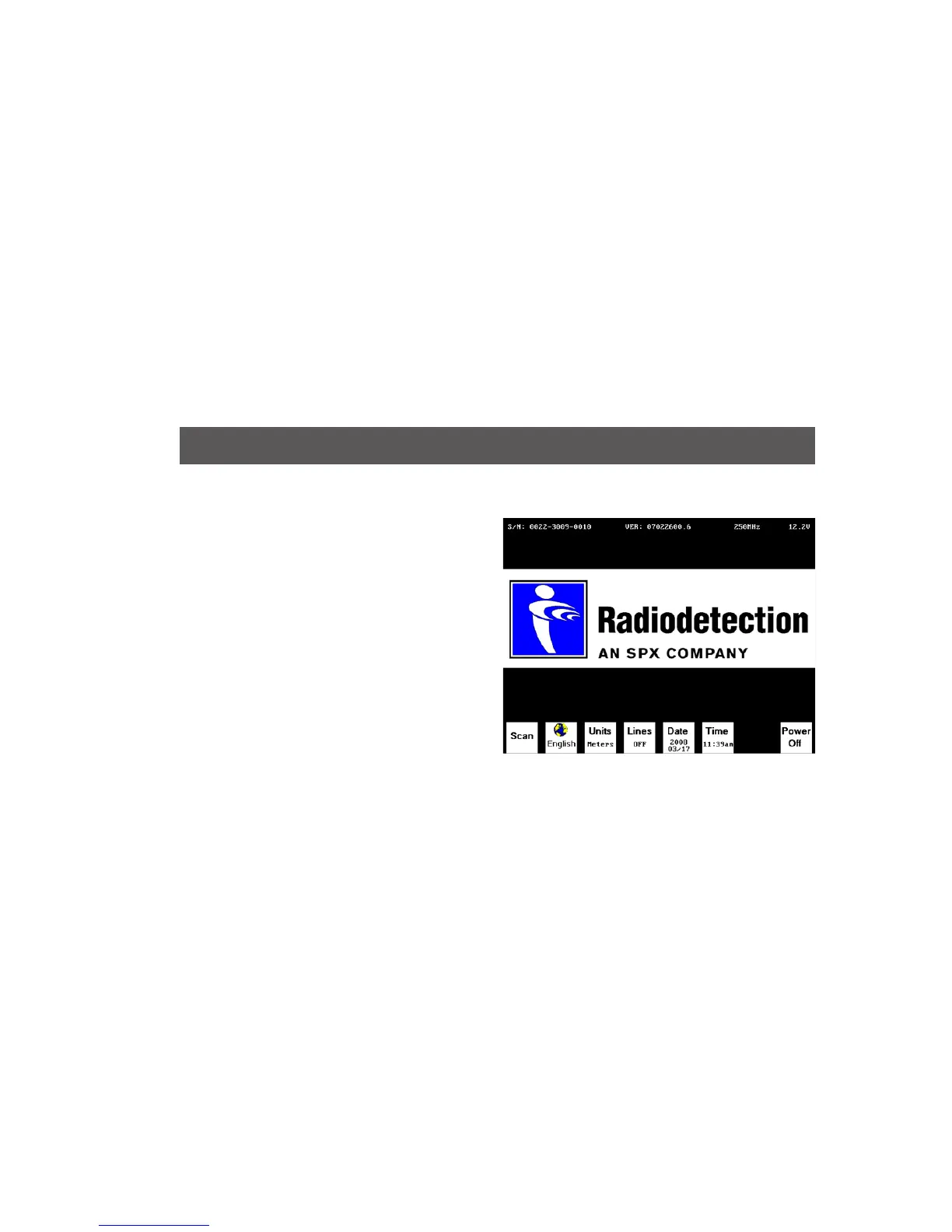

Figure 3.2: system
settings screen
3.2.1 Scan
Press the Scan button to start
scanning (see Section 3.3).
3.2.2 Language
Select the language for the
menus. Current options are
English or Icons. This manual
generally uses the English
menus. See Section 3.7 for a
chart showing all the equivalent
icons.
