RD1000™ Operation Manual 17
Pressing the Pause button opens the Image Settings Screen to
change the current Color Palette, Depth, Filter and Gain (see
Section 3.5).
Stopping and pulling the cart backwards along the same path
automatically opens the Locating Screen (See Section 3.4) used to
pinpoint the position and depth of a target.
3.4 Locating screen
The Locating Screen is accessed by stopping and pulling the cart
backwards while scanning. The cursor moves over the image and
menu options appear at the bottom of the screen.

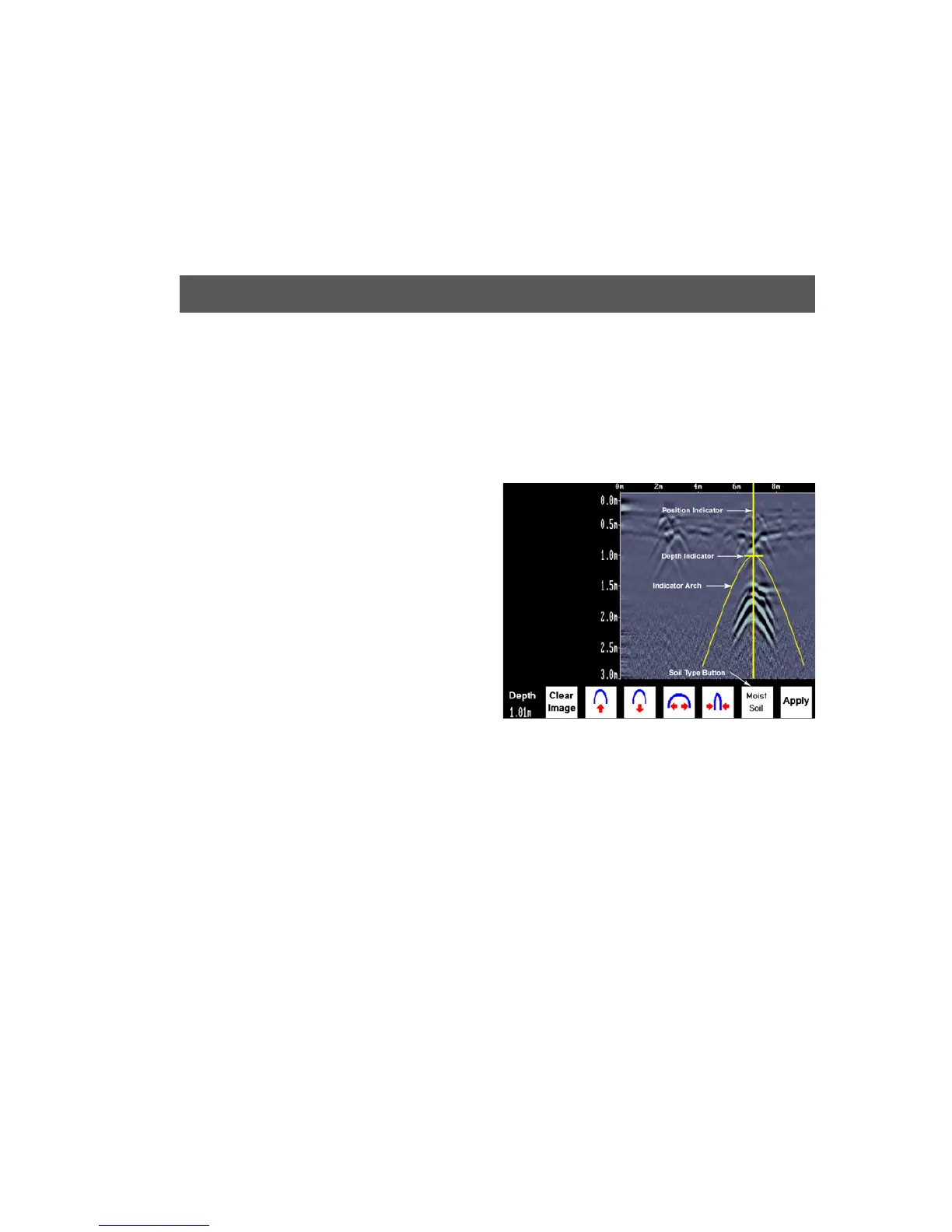

Figure 3.9: locating screen
3.4.1 Locating Cursor
The Cursor consists of 3 parts:
Position Indicator
Vertical cross-hair is tied to the
odometer and corresponds to
the location at the center of
the GPR sensor. As the cart is
pulled backwards, the Position
Indicator moves to indicate the
current location of the cart in the
image.
Depth Indicator
Horizontal cross-hair found at the peak of the soil type indicator
arch indicating the depth. The Depth Indicator moves up or down
using the Arch Up and Down buttons.
