RD1000™ Operation Manual 23

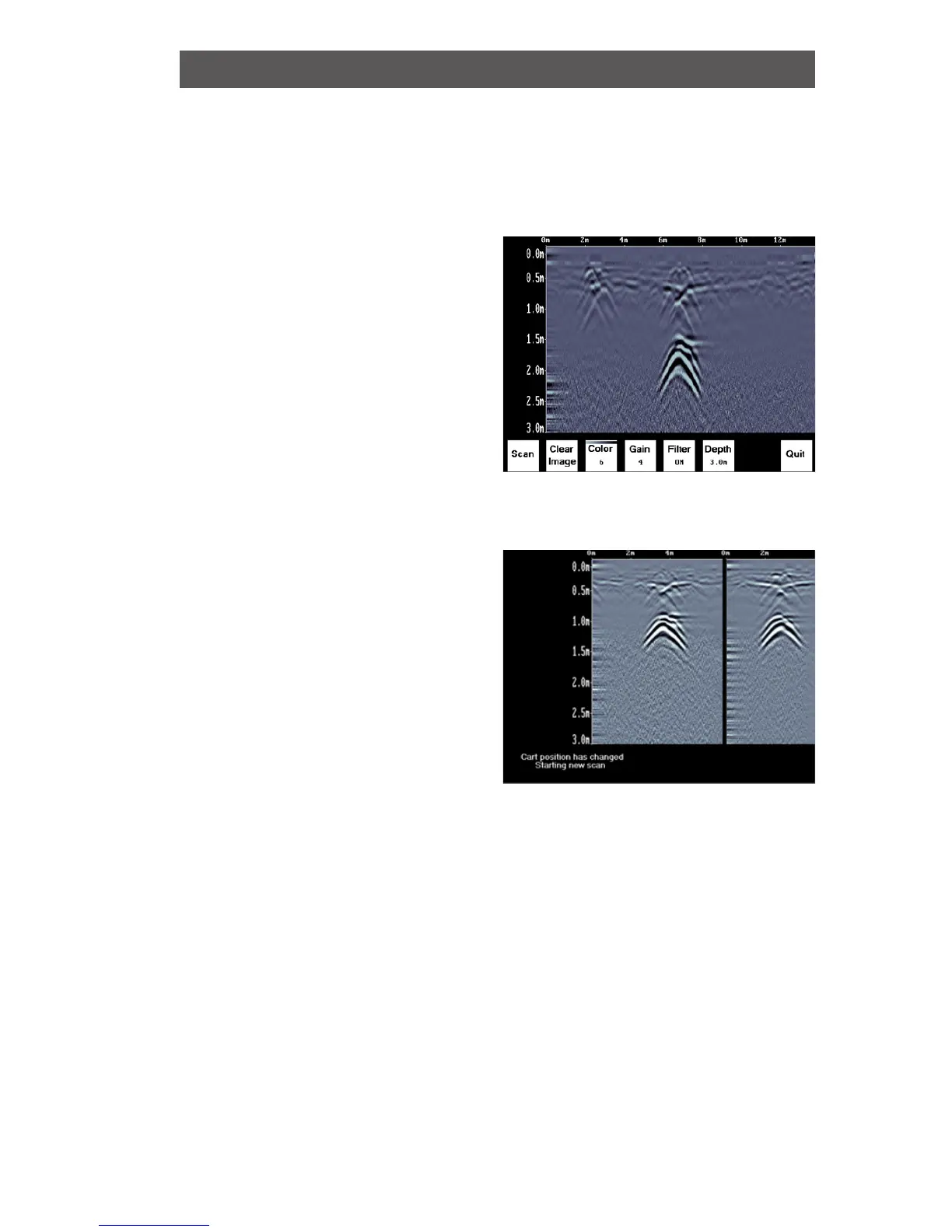

Figure 3.19: scan
screen
3.5 Image Settings Screen
The Image Settings Screen is accessed by pressing the Pause (||)
button while in the Scanning Screen or the Locating Screen. Menu
options appear along the bottom of the screen:
3.5.1 Scan
To exit from the Image Settings
Screen and resume Scanning,
press the Scan button or the
Pause (||) button again (to
resume). The Scanning Screen
returns at the current location
with the position information
preserved.
If, while paused in the Image Settings Screen, the cart has moved
more than a few centimeters, when scanning is restarted, a gap
called a Position Break will appear in the image. The position break
is also indicated by a message on the bottom of the screen and the
Position Axis along the top of the data image resetting to zero.
3.5.2 Clear Image
Deletes the current data image on the display.
