RD1000™ Operation Manual 15
Both means both Depth
Lines and Values are
plotted on the data image:
Off means no Depth Lines
and Values are plotted on
the data image.
3.
4.
3.2.5 Date
Opens the Date Screen to change the current date (see Section
3.5). Images are saved with this date.
3.2.6 Time
Opens the Time Screen to change the current date (see Section
3.5). Images are saved with this time.
3.2.7 Power Off
Opens a sub-menu to confirm powering off the system. There is
also an option to restore the system to factory default settings.
3.2.8 System Information
The top of the Systems Setting Screen displays the serial number
of the GPR sensor, the software version number, the GPR Sensor
frequency (in MHz) and the current battery voltage.

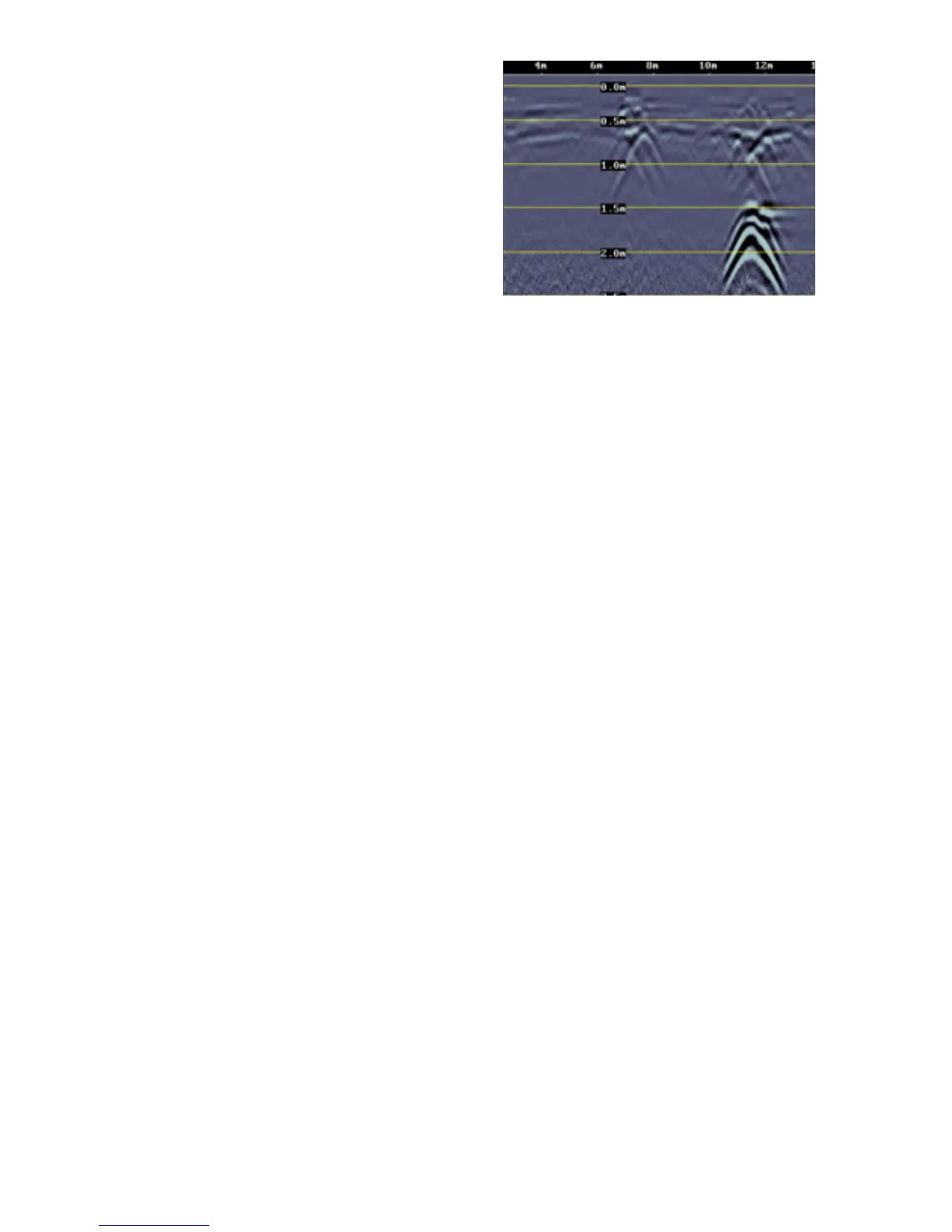

Figure 3.6: text and line
depth markers
