14 RD1000™ Operation Manual
3.2.3 Units
Units for the Position Axis, Depth Axis and Depth Indicator can be
either Meters or Feet.
3.2.4 Scale
The Scale button toggles to four different Scale options:

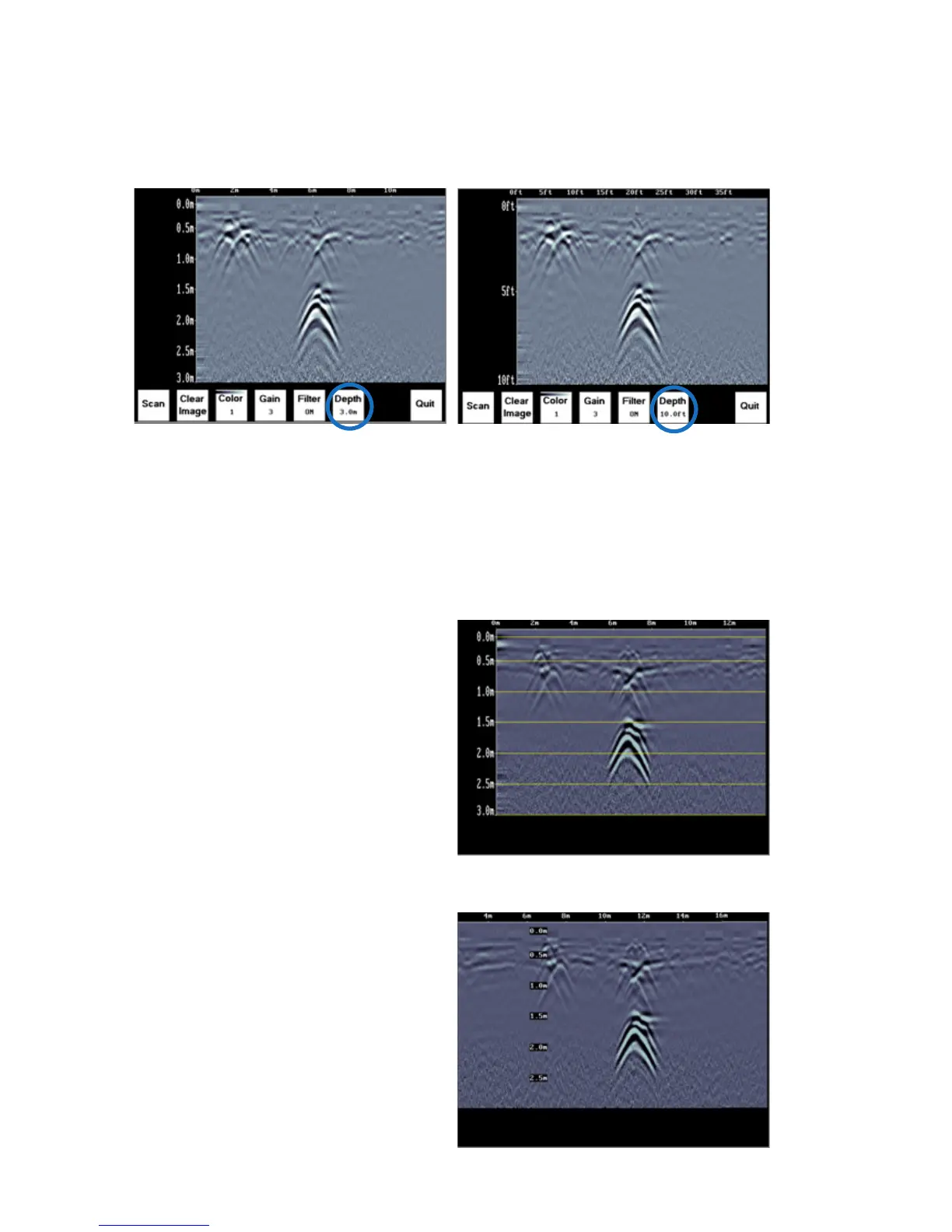

Figure 3.3: units
Lines means Depth Lines
are plotted on the data
image to assist with
determining the depth of
targets (also see Section
3.3).
Text means Depth Values
are plotted in the center
of the data image every 8
metres or 26 feet:
1.
2.
Figure 3.4:
depth lines
Figure 3.5: text
depth markers
