RD4000 Locating System User Manual
Page 11
RD4000T10
The RD4000T10 features:
• LCD display
• Ten-watt power output
• Web-enabling capability enabling the features
to be upgraded using the dedicated Web site
• Multi-meter functions for checking integrity of
cables before and after fault finding
• Up to 16 locate frequencies
• One or two induction frequencies
• FaultFind as standard
• Compatibility with the Radiodetection
Pipeline Current Mapper (PCM)
• Compatibility with Absolute Current Identification- Multi (ACID-M)
• Auto backlight (activated when a key is pressed).

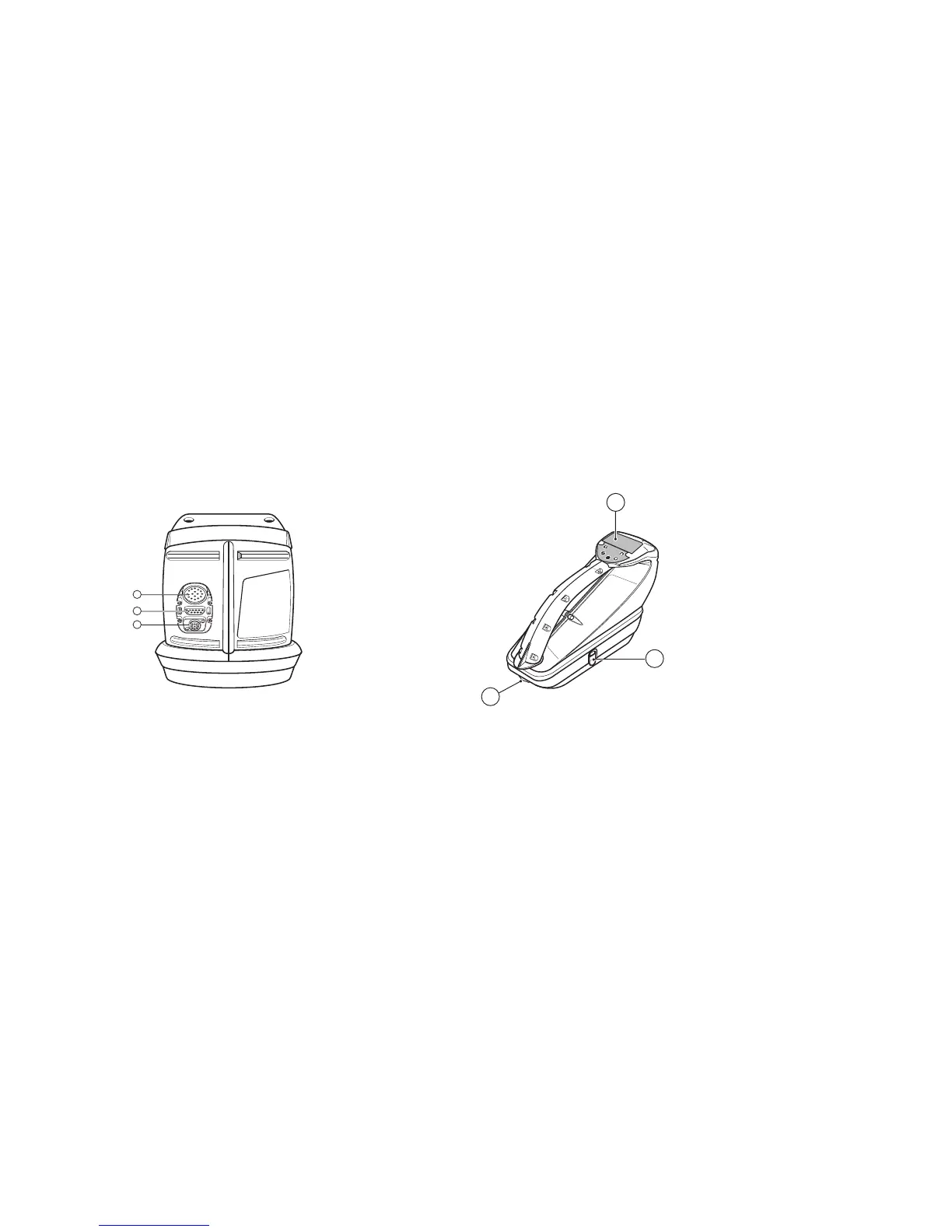

Layout of controls and connectors
(1) Sounder (4) LCD display
(2)RS232 connector. (5) External power supply and optional charging point
(3) Accessory connection socket (6) Battery housing-release catch
Accessories
A wide range of RD4000 accessories is available and increases the usefulness and scope of the system.
Accessories and sondes are described later in the manual.
Auto backlight
The RD4000 receiver features an auto backlight, which automatically illuminates the display in poor lighting
conditions. The backlight cannot be manually switched on or off.
The T10 transmitter backlight automatically illuminates when a key is pressed, regardless of the ambient light
level. The light will stay illuminated for 30 seconds, unless further key presses are made, in which case it will
extinguish 30 seconds after the last key press.
3
2
1
V
Ω
RD4000T10
5
4
6
To Next Page
