RD4000 Locating System User Manual
Page 15

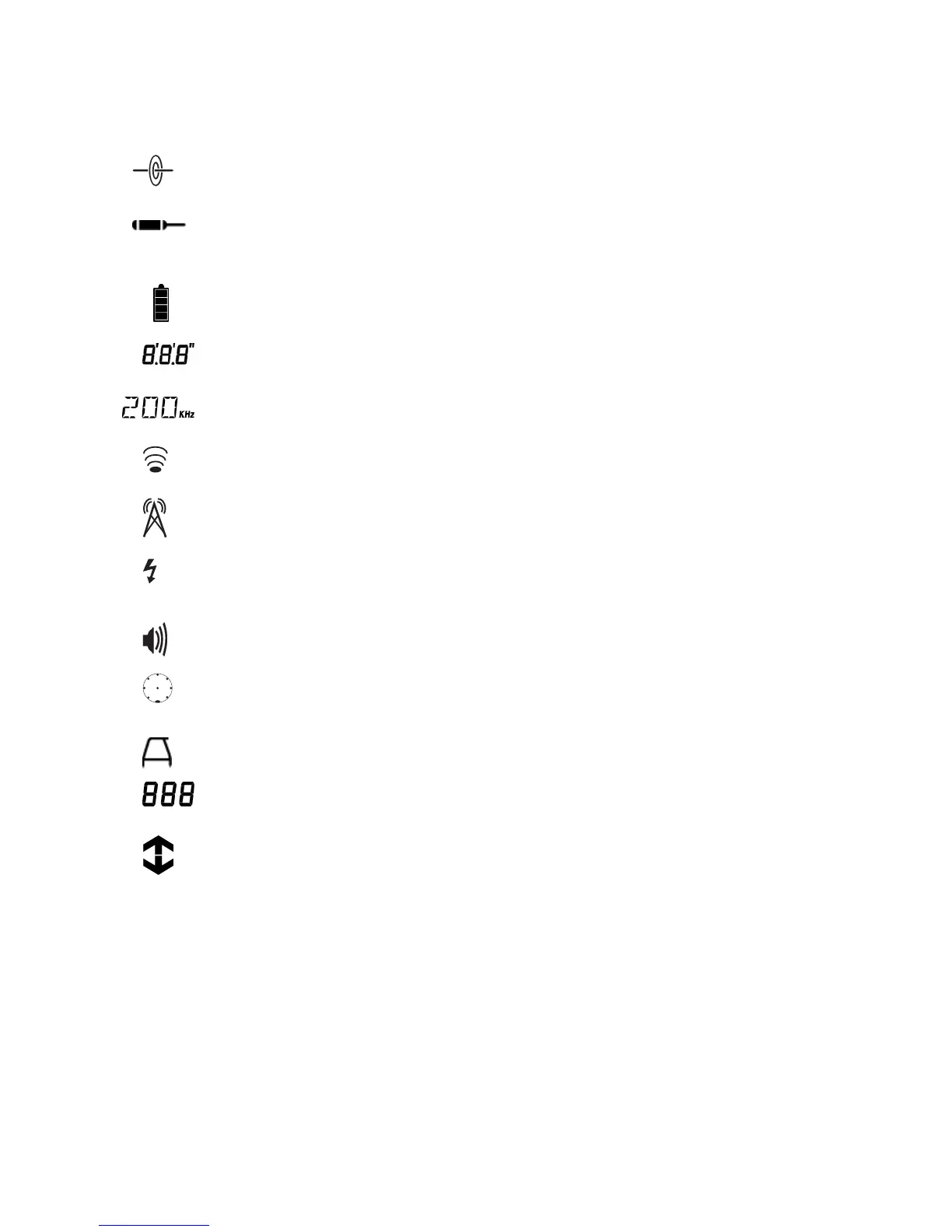

(10) Line selected indication.
Displayed when line measurement is selected.
(11) Sonde indication.
Displayed when sonde measurement is selected.
Note: The sonde option is not available when using some frequencies.
(12) Battery level indication.
Displays receiver battery level.
(13) Numeric display.
Indicates the receiver response to a signal. Also provides information from other functions.
(14) Selected frequency indication.
Displays selected frequency.
(15) Electronic Marker System (EMS) mode symbol (RD4000 MRx option only).
The EMS symbol is displayed when EMS is selected.
(16) Radio mode symbol.
This symbol is displayed when radio mode is selected.
(17) Power mode symbol.
This symbol is displayed when power mode is selected.
(18) Volume level.
Shows volume level (off, low, mid, high).
(19) Accessory indication.
The symbol is displayed when an accessory is fitted.
(20) Fault find mode.
The symbol is displayed when an A-frame is plugged into the accessory socket.
(21) Numeric display.
Displays gain-setting value.
(22) CD mode indication.
The arrows are displayed when the CD frequency is selected.
