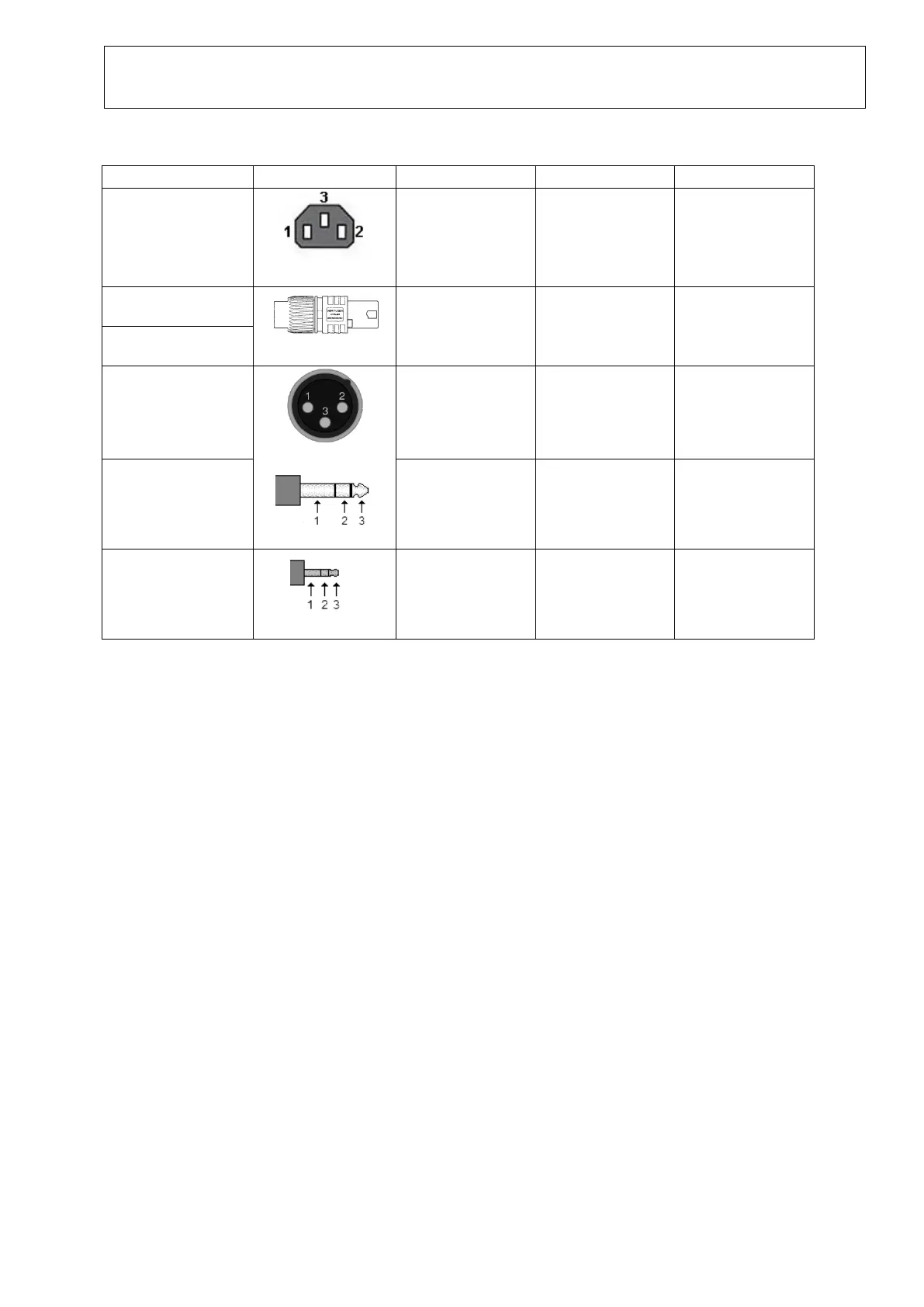

5.1 Pin Assignment
Socket Connector Pin 1 Pin 2 Pin 3
Mains
Live Neutral Earth
IEC C13
Speakers 1
Signal (1+) Signal (1-) -
Speakers 2
SpeakON 2 pol
Input 1
or
- Signal (+) Signal (-)
Input 2 Signal (-) - Signal (+)
XLR / 6.3mm Jack
Remote
Ground -
Remote signal
(5 VDC)
3.5mm Jack
Input & Remote: Mono versions of the jack plugs can be used without problems.
