Radwin 1000 - RADWIN Manager Traps and Events Log

The Events Log Chapter 7
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 7-10
during installation. A value of -5dB from the current RSS is recommended as
a threshold.
The Events Log
The Events Log records system failures, loss of synchronization, loss of sig-
nal, compatibility problems and other fault conditions and events.
Alarms (traps) are displayed in the Events Log in the lower panel of the
main window. The Events Log may be saved as a text file.
The Events Log includes the following fields:
 Sequential number (ID)
 Date and time stamp
 Message
 Trap source
 IP address of the ODU that initiated alarm.
For complete information about traps and alarms see appendix F, MIB Ref-
erence, table F-3.

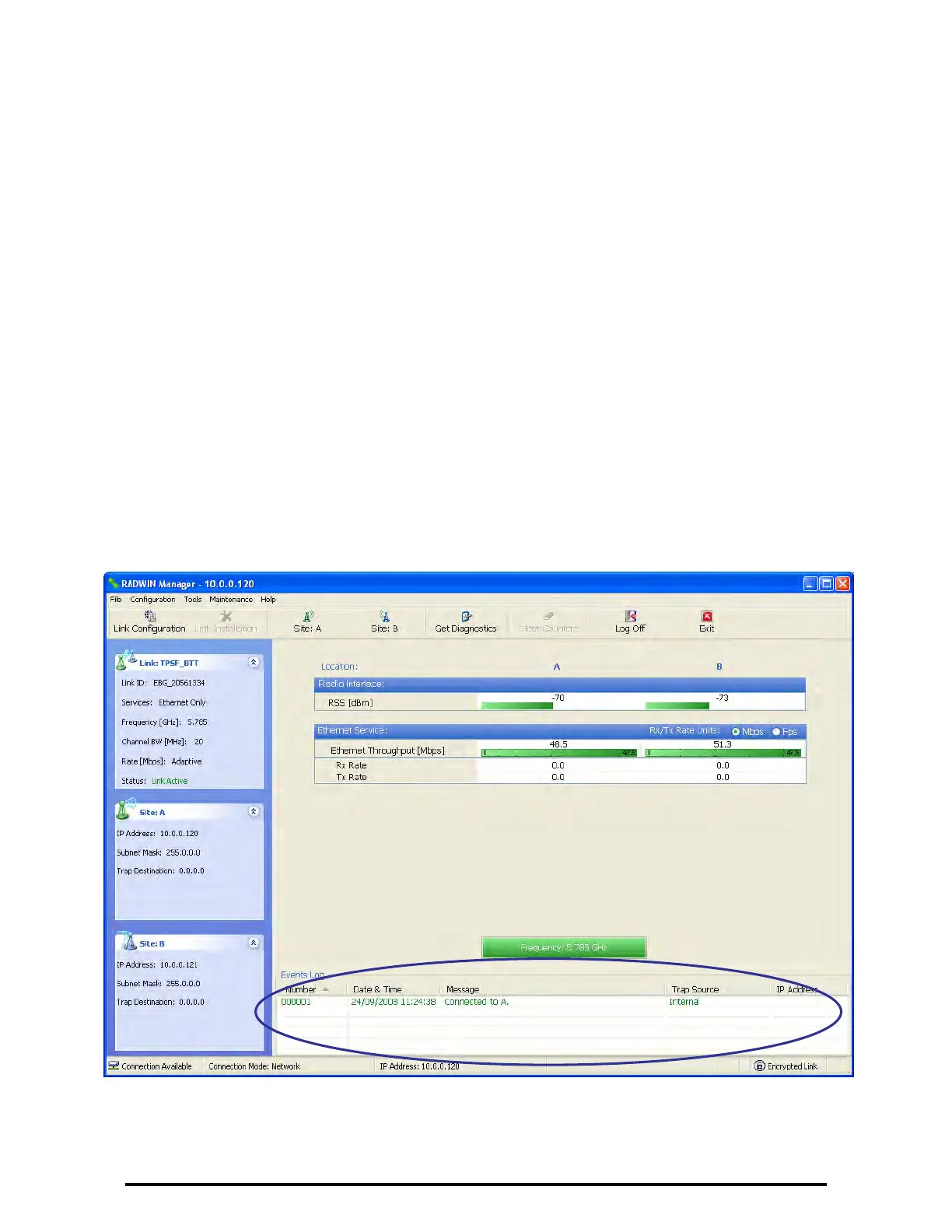

The events are displayed in the Events Log in the lower part of the RADWIN
Manager main window:
Figure 7-6: Events Log Display
