The Radio Outdoor Unit (ODU) Chapter 1
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 1-6

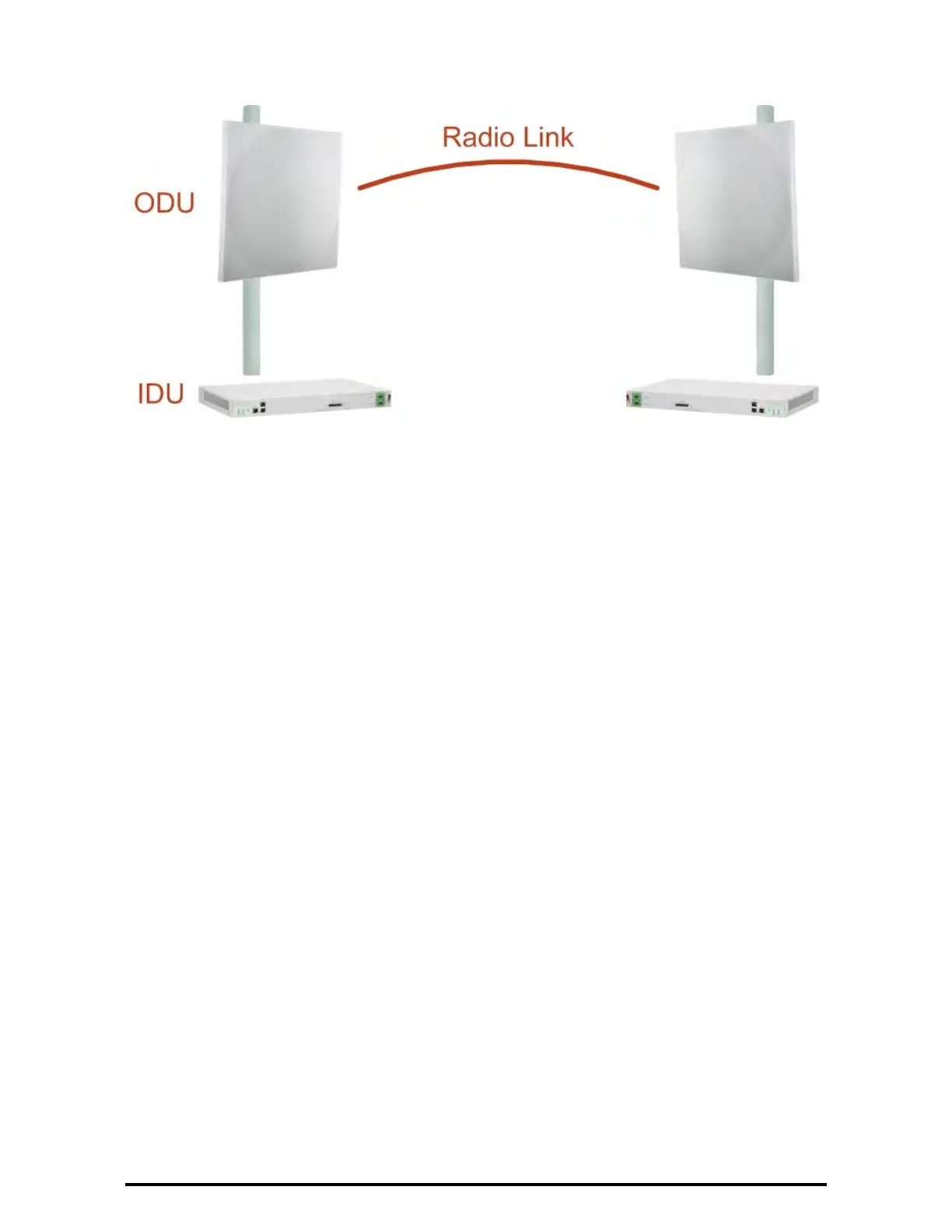

Figure 1-4: Example of Link Architecture - System Components
The Radio Outdoor Unit (ODU)
The ODU is the radio transceiver of the RADWIN 1000/2000/5000 system.
It supports two radios for MIMO operation. It is available with an integrated
antenna (Integrated Antenna ODU) or with connectors for an external
antenna (Connectorized ODU).
The ODU may be mounted on a pole or a wall, and connects to the IDU or
PoE device using a CAT5e cable.
