Radwin 1000 - Saving the Events Log; Figure 7-7 Preferences Dialog Box

RADWIN Manager Traps Chapter 7
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 7-13

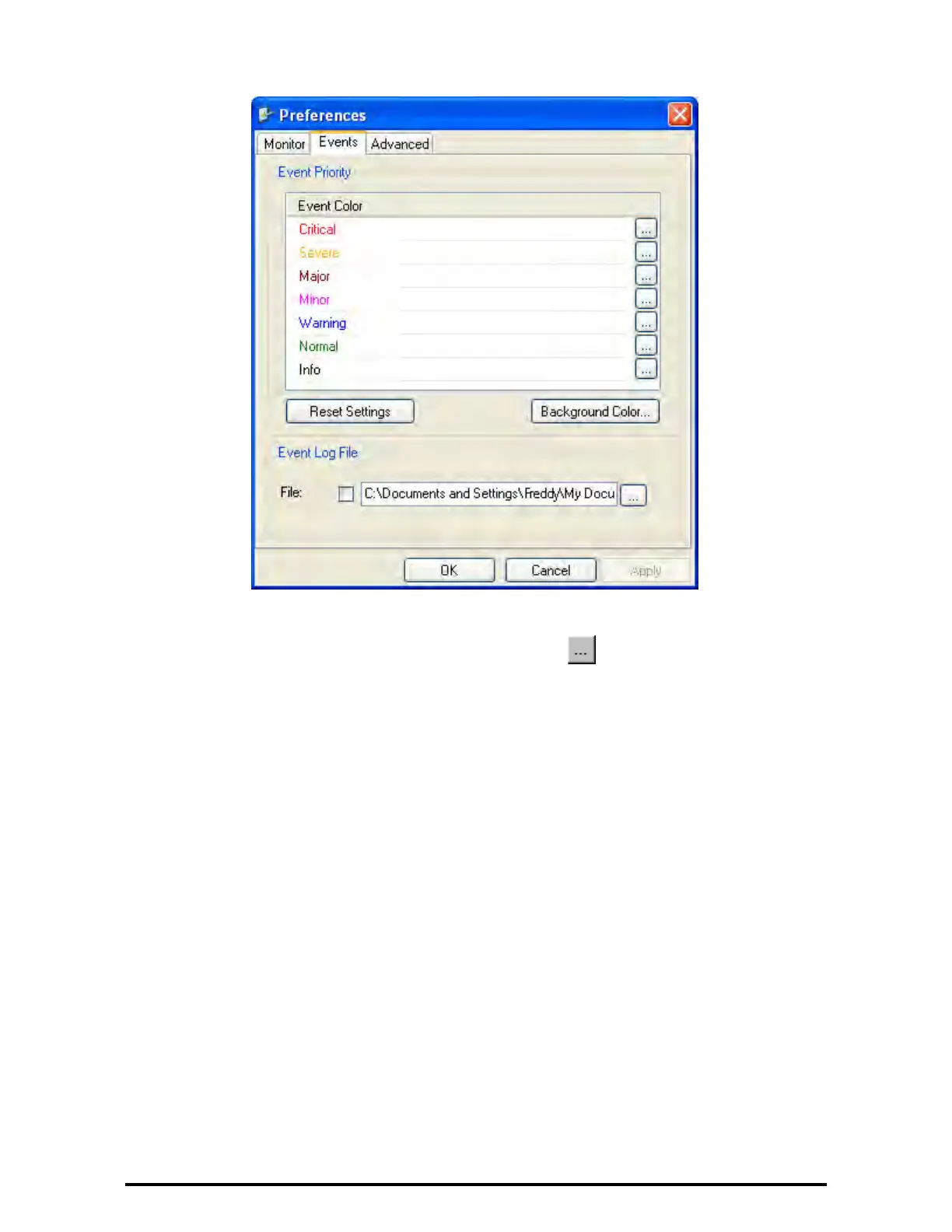

Figure 7-7: Preferences dialog box
3. Select the event type and click on the button.
A color chart opens.
4. Select the desired color.
5. Repeat for all of the event types.
 To set the trap background color:
• Click Background Color to change the text background.
 To reset the event colors:
• Click Reset Settings to return to the default color settings.
Saving the Events Log
You can save recorded events in an Events Log text file. New alarms are
automatically added to the text file, as they enter the Events Log.
 To save the Events Log:
1. From the Tools menu, choose Preferences.
The Preferences dialog box appears
2. Click the Events Tab.
3. Select the file to save.
