The Radio Outdoor Unit (ODU) Chapter 1
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 1-7
The ODU comes in two form factors as shown in figure 1-5 below:

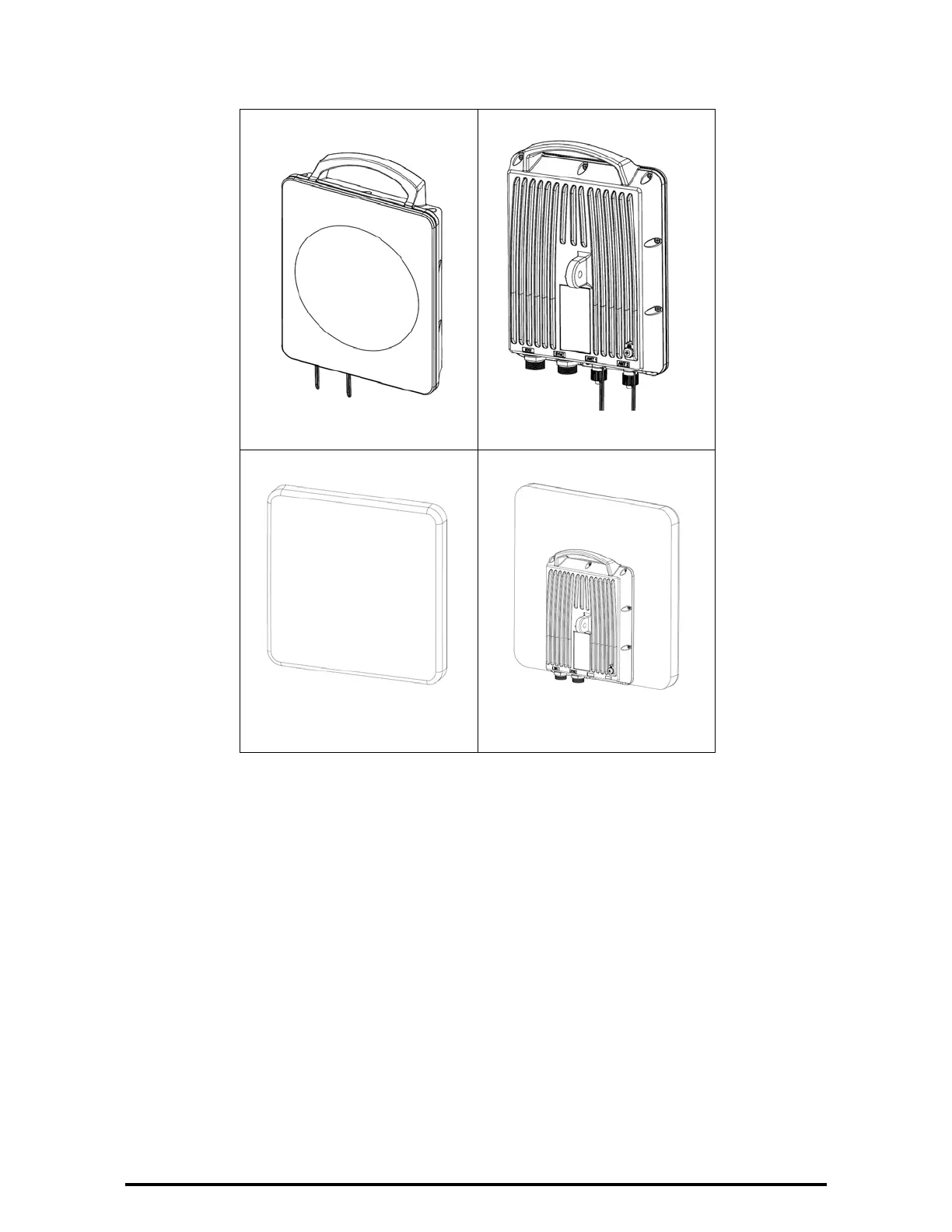

Figure 1-5: ODU Form Factors
• Integrated Antenna ODU
This ODU has an integrated 370mm (1.2ft) flat panel antenna, with
a gain of 23dBi. The ODU contains both the radio and the antenna
as a single unit housed in a weatherproof case.
• Connectorized ODU
This ODU has 2x N-type connectors for connecting an external
antenna.
a. Connectorized ODU - Front b. Connectorized ODU - Rear
c. Integrated Antenna ODU -
Front
d. Integrated Antenna ODU -
Rear
