Rain Bird ESP-RZ User Manual

8

NOTE: This appliance is not intended for use
by persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.

WARNING: If the supply cord of an outdoor
controller is damaged, it must be replaced by
a special cord or assembly available from the
manufacturer or its service agent.
If the supply cord of an indoor controller
is damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.

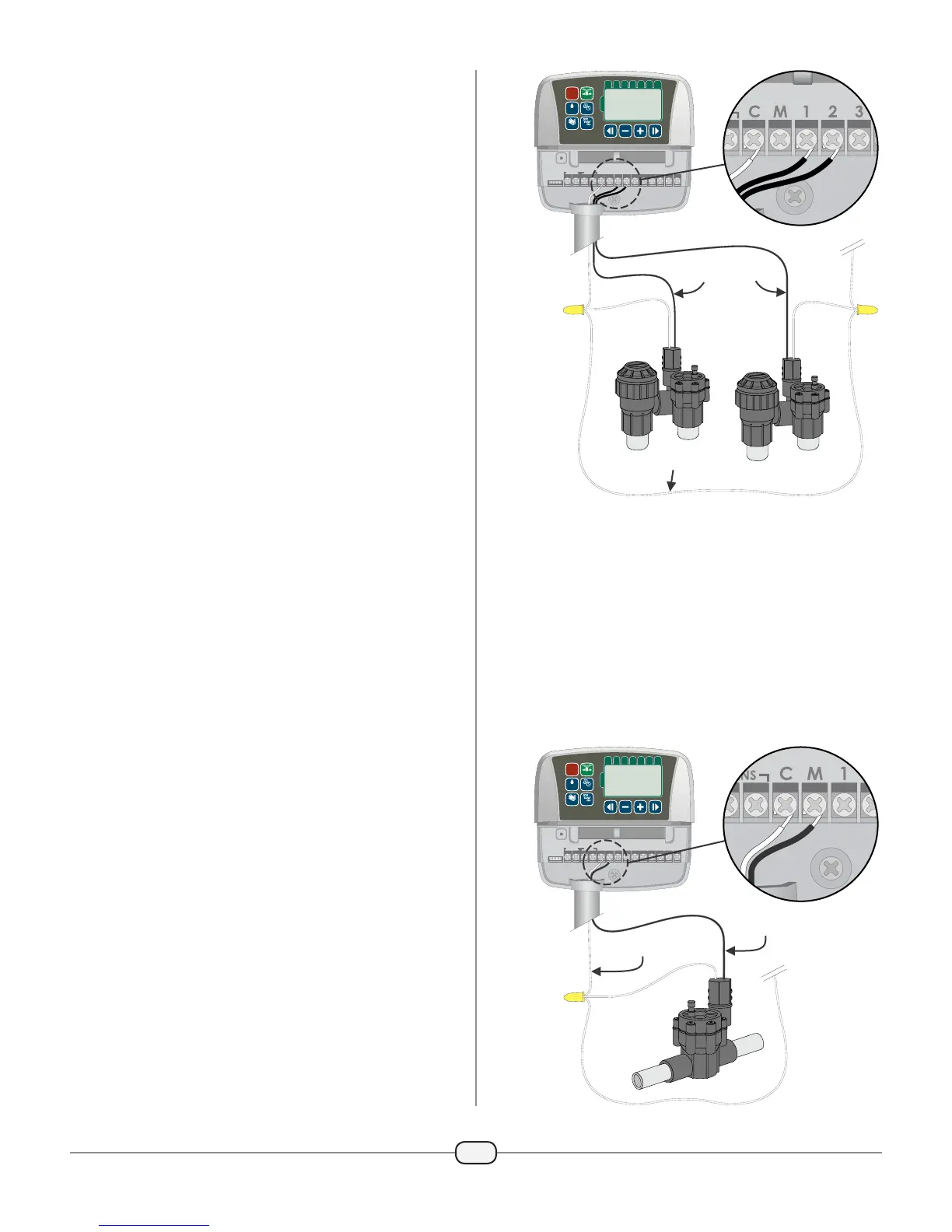

Wiring Connections
Connect the valve wires for each Zone and for
(optional) Master Valve, Pump Start Relay or Rain
Sensor.

NOTE: If installing an outdoor model, route
all eld wires through conduit or through the
knock-out on back of the unit.
Connect Zone Valves
 Connect the power wire from each Zone valve
to the corresponding Zone number on the
controller terminal block.
 Connect the common wire from each valve to
the COMMON (C) terminal.
ZONE 1
VALVE
POWER
COMMON
ZONE 2
VALVE
ETC.
ESP-RZ
Z
O
N
E
OFF
AUTO
T
2
W
3
TH
4
F
5
S
6
SU
7
M
1
DATE/TIME
SCHEDULE
MANUAL
SEASONAL
ADJUST
BACK OFF ON NEXT
REMOTE
24VAC
ACCESSORY
SENS
12345678CM
RESET
Connect Master Valve
Connect an optional Master Valve to the ESP-RZ
controller.
 Connect the power wire from the master valve
to the master (M) terminal on the controller
terminal block.
 Connect the common wire from the master
valve to the COMMON (C) terminal.
COMMON
MASTER
VALVE
POWER
ESP-RZ
Z
O
N
E
OFF
AUTO
T
2
W
3
TH
4
F
5
S
6
SU
7
M
1
DATE/TIME
SCHEDULE
MANUAL
SEASONAL
ADJUST
BACK OFF ON NEXT
REMOTE
24VAC
ACCESSORY
SENS
12345678CM
RESET

Rain Bird ESP-RZ Specifications

General

Brand	Rain Bird
Model	ESP-RZ
Category	Controller
Language	English
