Wiring Connections

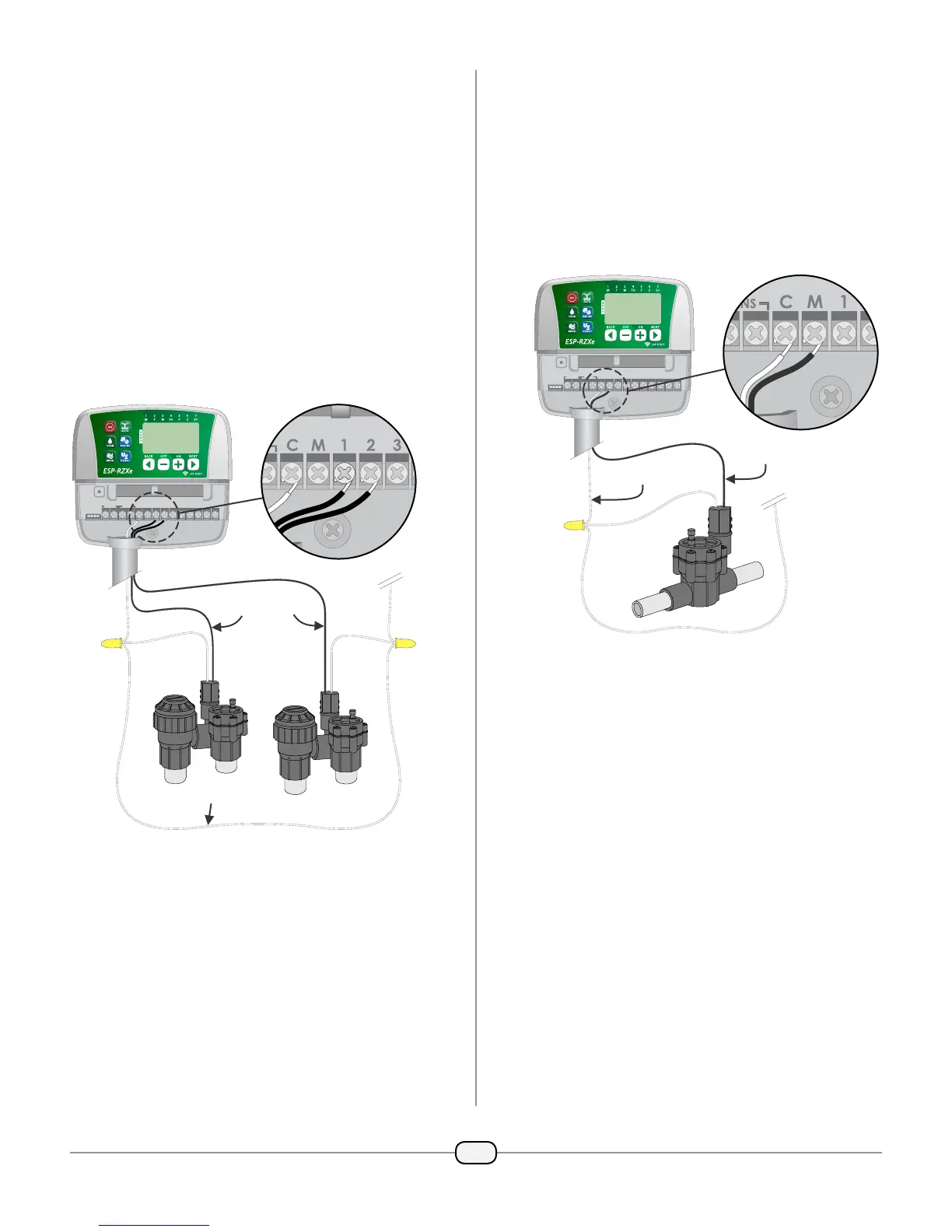

Connect the valve wires for each Zone and for
(optional) Master Valve, Pump Start Relay or Rain
Sensor.

NOTE: If installing an outdoor model, route
all eld wires through conduit or through the
knock-out on back of the unit.
Connect Zone Valves
 Connect the power wire from each Zone valve
to the corresponding Zone number on the
controller terminal block.
 Connect the common wire from each valve to
the COMMON (C) terminal.
REMOTE
24VAC
ACCESSORY
SENS
12345678CM
RESET
Connect Master Valve
Connect an optional Master Valve to the ESP-
RZXe controller.
 Connect the power wire from the master valve
to the master (M) terminal on the controller
terminal block.
 Connect the common wire from the master
valve to the COMMON (C) terminal.
REMOTE
24VAC
ACCESSORY
SENS
12345678CM
RESET
POWER
ZONE 1
VALVE
ZONE 2
VALVE
ETC.
COMMON
COMMON
POWER
MASTER
VALVE

Rain Bird ESP-RZXe Specifications

General

Zones	4, 6, or 8
Enclosure	Indoor/Outdoor
Start Times per Zone	6
Manual Watering	Yes
Delay Between Zones	Yes
Sensor Compatibility	Yes
Transformer Output	24 VAC
Pump/Master Valve Output	Yes
Voltage	24 VAC
Watering Start Times	6 per zone
Cycle + Soak	Yes
Sensor Input	1
Enclosure Rating	NEMA 3R
Wi-Fi Connectivity	Optional, with LNK2 WiFi Module
Programming	Zone-based
Display	Large LCD display
Power Source	24V AC transformer
Weather Sensing	Yes, via optional WR2 Wireless Rain Sensor or wired rain sensor
Remote Compatibility	Yes, with optional WiFi module
Station Output	24 VAC 650mA
Station Run Time	1 to 199 minutes
Backup Battery	No
Weight	680 g
