Rain Bird ESP-RZXe User Manual

5

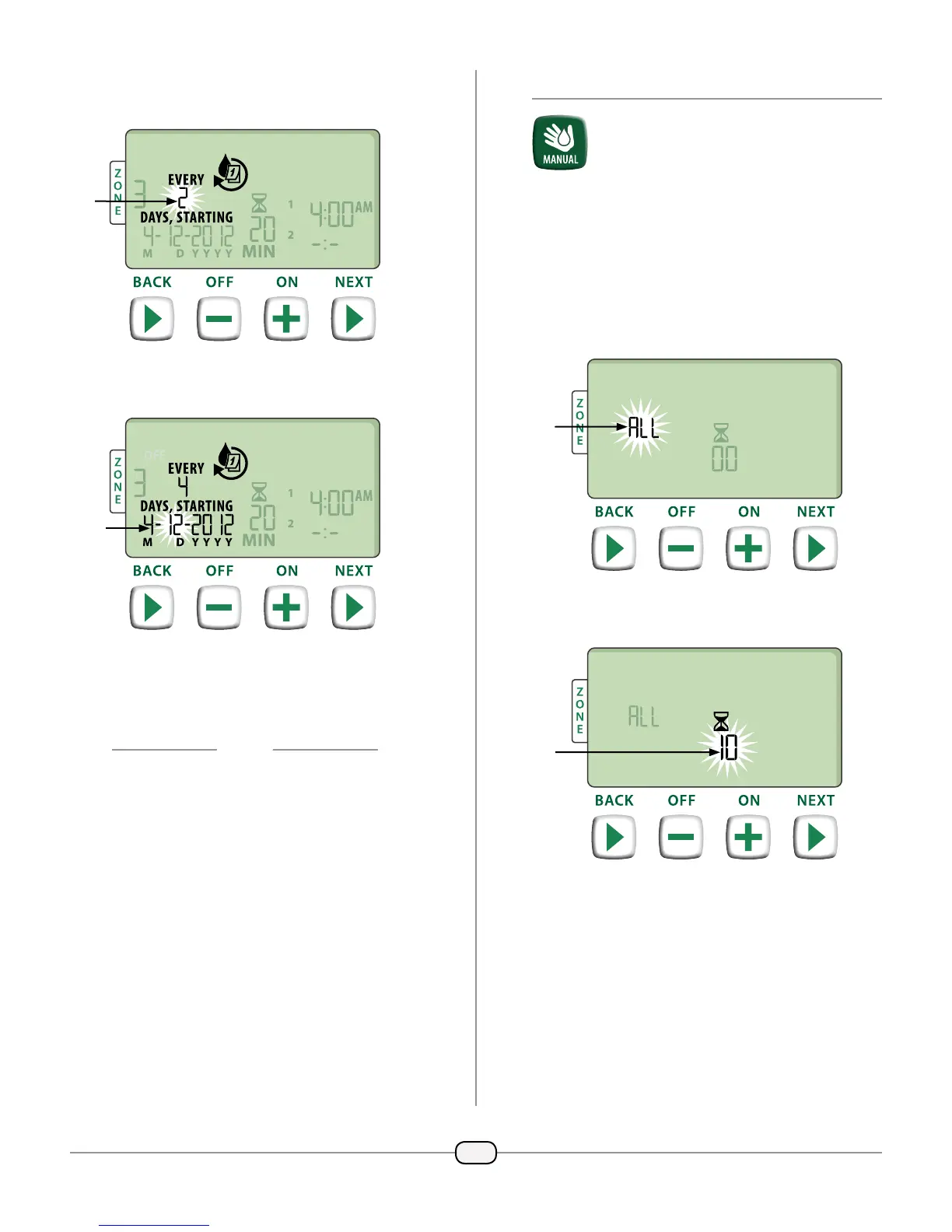

 Press
+
or
–
key to set the desired Day Cycle;
then press NEXT.
DAY
CYCLE
 Press
+
or
–
to set desired Start Date;
then press NEXT.
START
DATE

NOTE: The Start Date can only be set to occur
within the current day cycle. The display will
always update to show the next scheduled
irrigation day.
THEN

REPEAT steps 1-4 for additional Zones as
desired.
Additional Features
Manual Watering
Start watering immediately for ALL Zones or for
any ONE Zone.
Water ALL Zones:
 Press the MANUAL WATERING key.
 ALL Zones appears as the default selection;
press NEXT to continue.
MIN
ALL
ZONES
 Press
+
or
–
to set the desired Run Time; then
press NEXT to begin watering.
MIN
RUN
TIME
During Manual Watering:
 Press
+
or
–
to adjust watering Run Time
remaining for the active Zone as desired.
 Press NEXT to immediately cancel watering for
the active Zone and advance to the next Zone in
the irrigation queue.

Rain Bird ESP-RZXe Specifications

General

Zones	4, 6, or 8
Enclosure	Indoor/Outdoor
Start Times per Zone	6
Manual Watering	Yes
Delay Between Zones	Yes
Sensor Compatibility	Yes
Transformer Output	24 VAC
Pump/Master Valve Output	Yes
Voltage	24 VAC
Watering Start Times	6 per zone
Cycle + Soak	Yes
Sensor Input	1
Enclosure Rating	NEMA 3R
Wi-Fi Connectivity	Optional, with LNK2 WiFi Module
Programming	Zone-based
Display	Large LCD display
Power Source	24V AC transformer
Weather Sensing	Yes, via optional WR2 Wireless Rain Sensor or wired rain sensor
Remote Compatibility	Yes, with optional WiFi module
Station Output	24 VAC 650mA
Station Run Time	1 to 199 minutes
Backup Battery	No
Weight	680 g
