3. Other Parts
A. Z-axis Endstop Limit Switch
Limits the maximum position in the Z direction and provides a Z-axis zero reference.
B. Extruder (Left/Right)
Feeds the filament into the hotend.
C. X-axis Guide Rail
Guides the extruder’s movement along the X-axis.
D. X-axis Motor (Left/Right)
Respectively controls the corresponding extruder for horizontal movement.
E. Z-axis Motor (Left/Right)
Controls both ends of the X-axis beam for synchronous lifting movements.

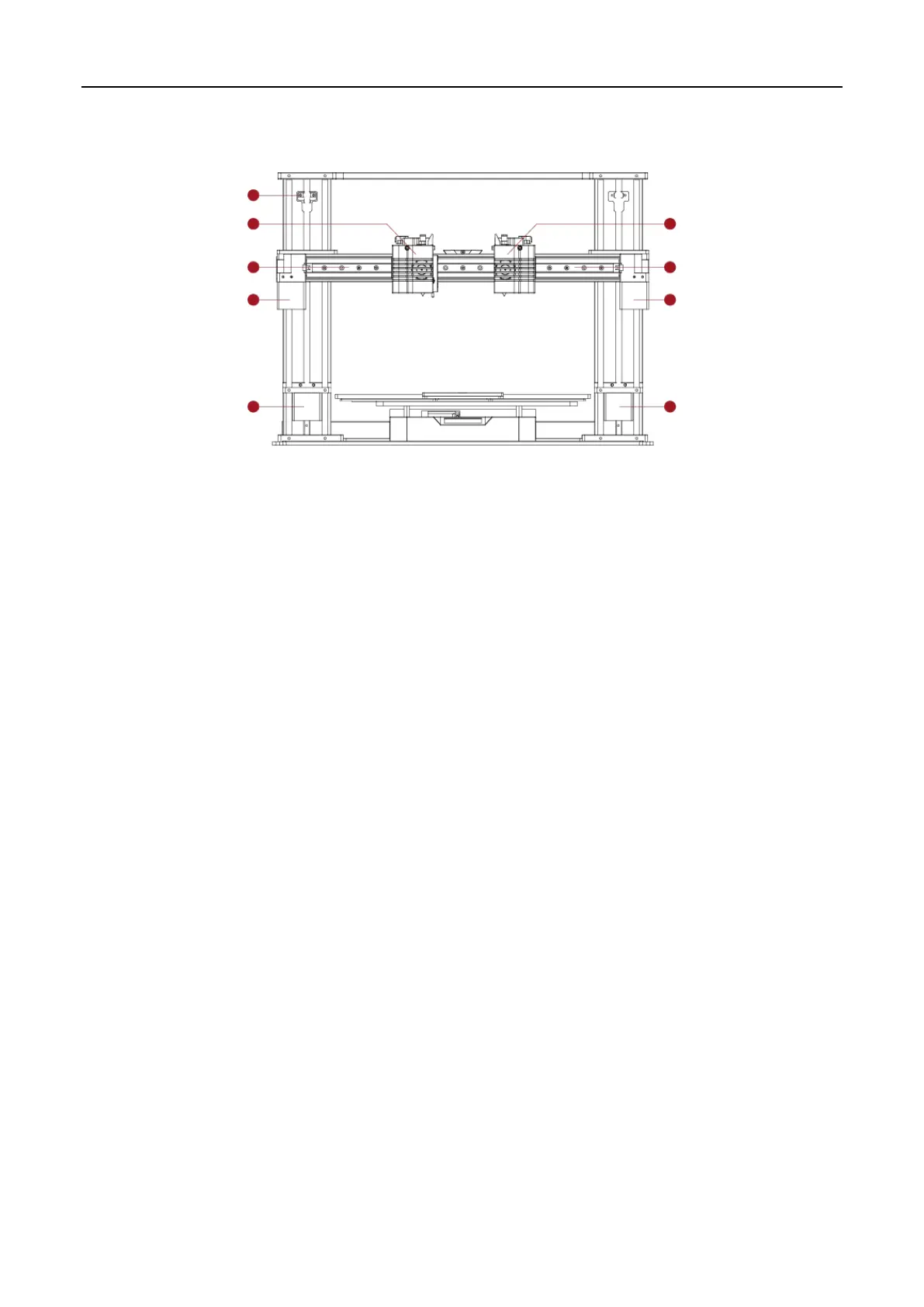

D. X-axis Left Motor
A. Z-axis Endstop
Limit Switch
B. Left Extruder
B. Right Extruder
C. X-axis Guide Rail
D. X-axis Right Motor
E. Z-axis Right Motor
E. Z-axis Left Motor
C. X-axis Guide Rail
