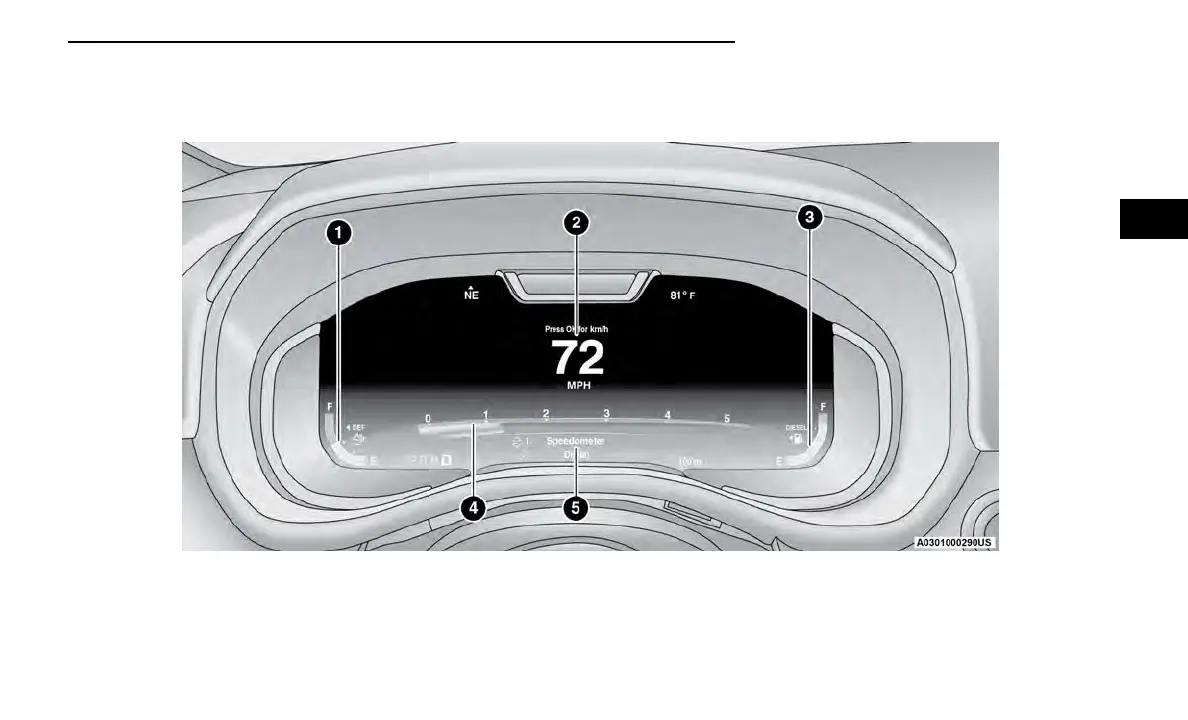

PREMIUM INSTRUMENT CLUSTER — DIESEL

Holding the OK button on the Instrument Cluster Display controls located on the steering wheel will allow you to change your display from Analog to Digital.
