7.4.3 Replacement Criteria for Motor Brakes
Table 2. Replacement criteria for motor brakes
Figu

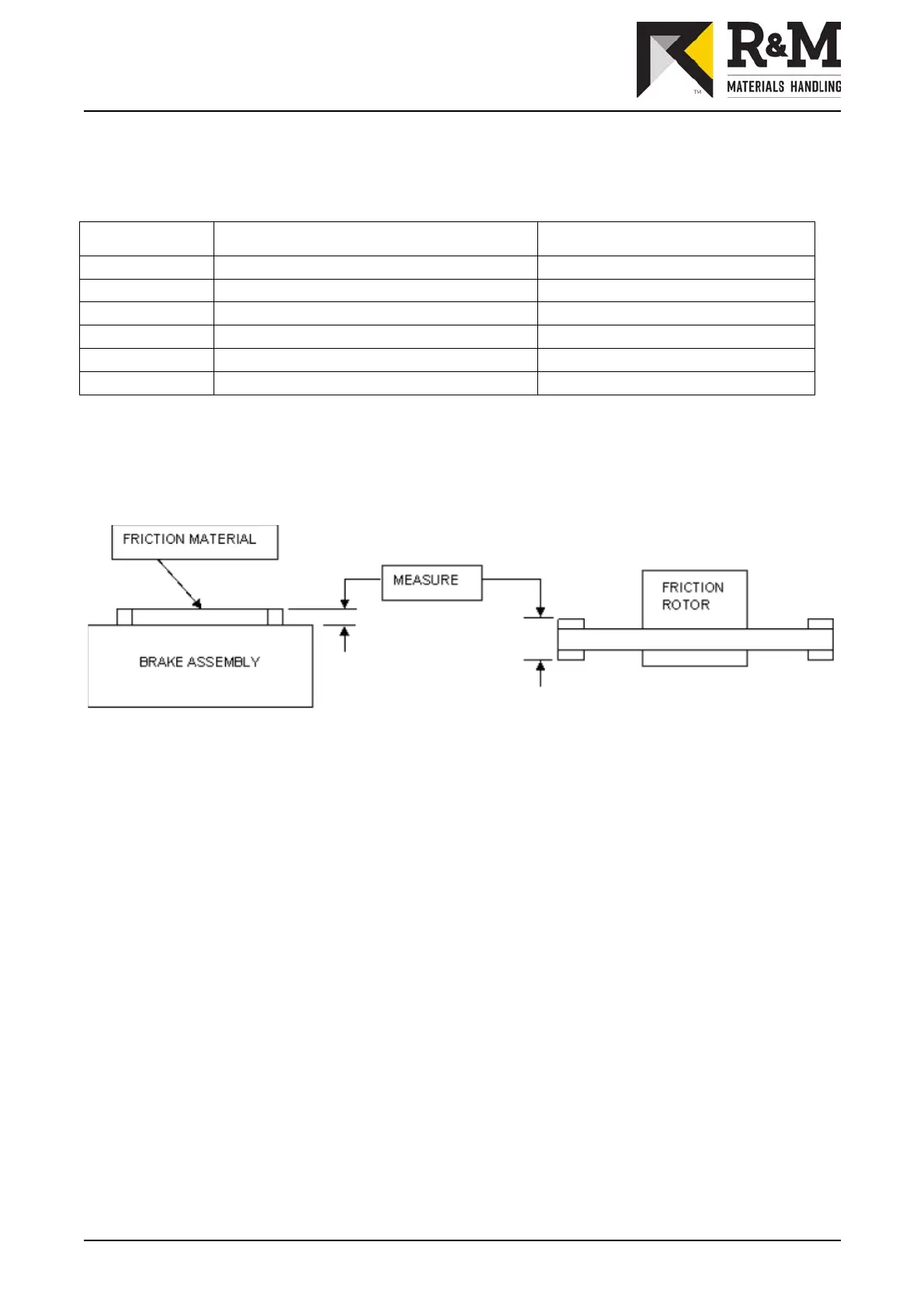

re 12. Replacement criteria for motor brakes
LM 01 / 05 / 10 MODELS LM 16 / 20 / 25 MODELS
THIC
KNESS AS NEW REPLACE WHEN
LM 01 0.260 inches (6.6 mm) 0.220 inches (5.6 mm)
LM 05 0.370 inches (9.4 mm) 0.330 inches (8.4 mm)
LM 10 0.055 inches (1.4 mm) 0.016 inches (0.4 mm)
LM 16 0.406 inches (10.3 mm) 0.366 inches (9.3 mm)
LM 20 0.406 inches (10.3 mm) 0.366 inches (9.3 mm)
LM 25 0.406 inches (10.3 mm) 0.366 inches (9.3 mm)
