9.12 Push Button Assembly – Vertical Buttons (Option)

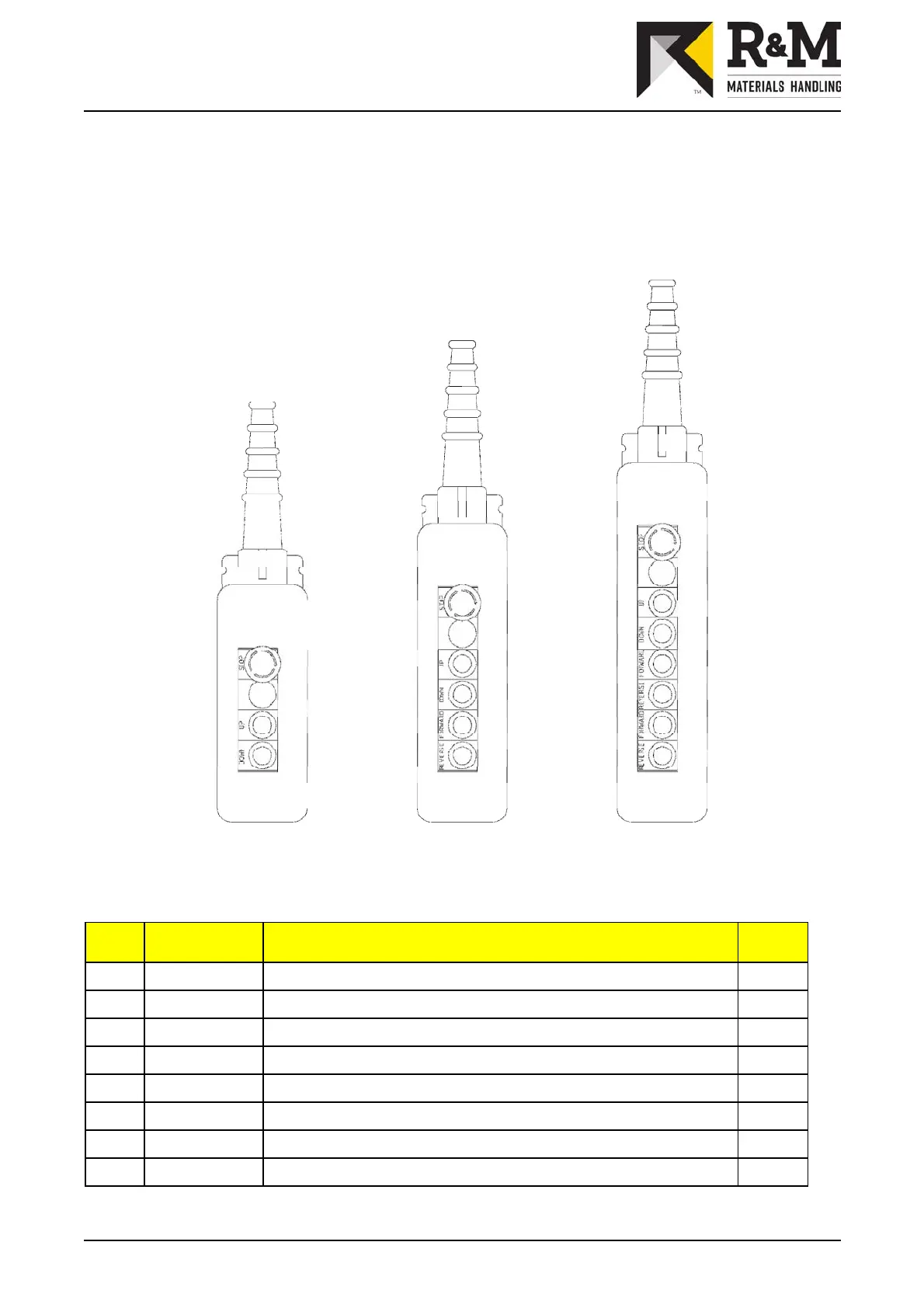

Figure 49. Push button assembly – vertical buttons
Table 21. Push Button Assembly - Vertical Buttons (Option) Parts List
ITEM
PART
NUMBER
DESCRIPTION QTY
1 2212932011 3 BUTTON P/B TELEMECANIQUE – S*, 1H 1
1 2212932012 3 BUTTON P/B TELEMECANIQUE – S*, 2H 1
2 2212932032 5 BUTTON P/B TELEMECANIQUE – S*, 1H, 2T 1
2 2212932033 5 BUTTON P/B TELEMECANIQUE – S*, 2H, 2T 1
3 2212932034 7 BUTTON P/B TELEMECANIQUE – S*, 2H, 2T, 2B 1
3 2212932035 7 BUTTON P/B TELEMECANIQUE – S*, 1H, 2T, 1B 1
3 2212932036 7 BUTTON P/B TELEMECANIQUE – S*, 2H, 2T, 1B 1
3 2212932037 7 BUTTON P/B TELEMECANIQUE – S*, 1H, 2T, 2B 1
