7.16 Two-Speed Solo Hoist - 230 Volt Wiring Diagram

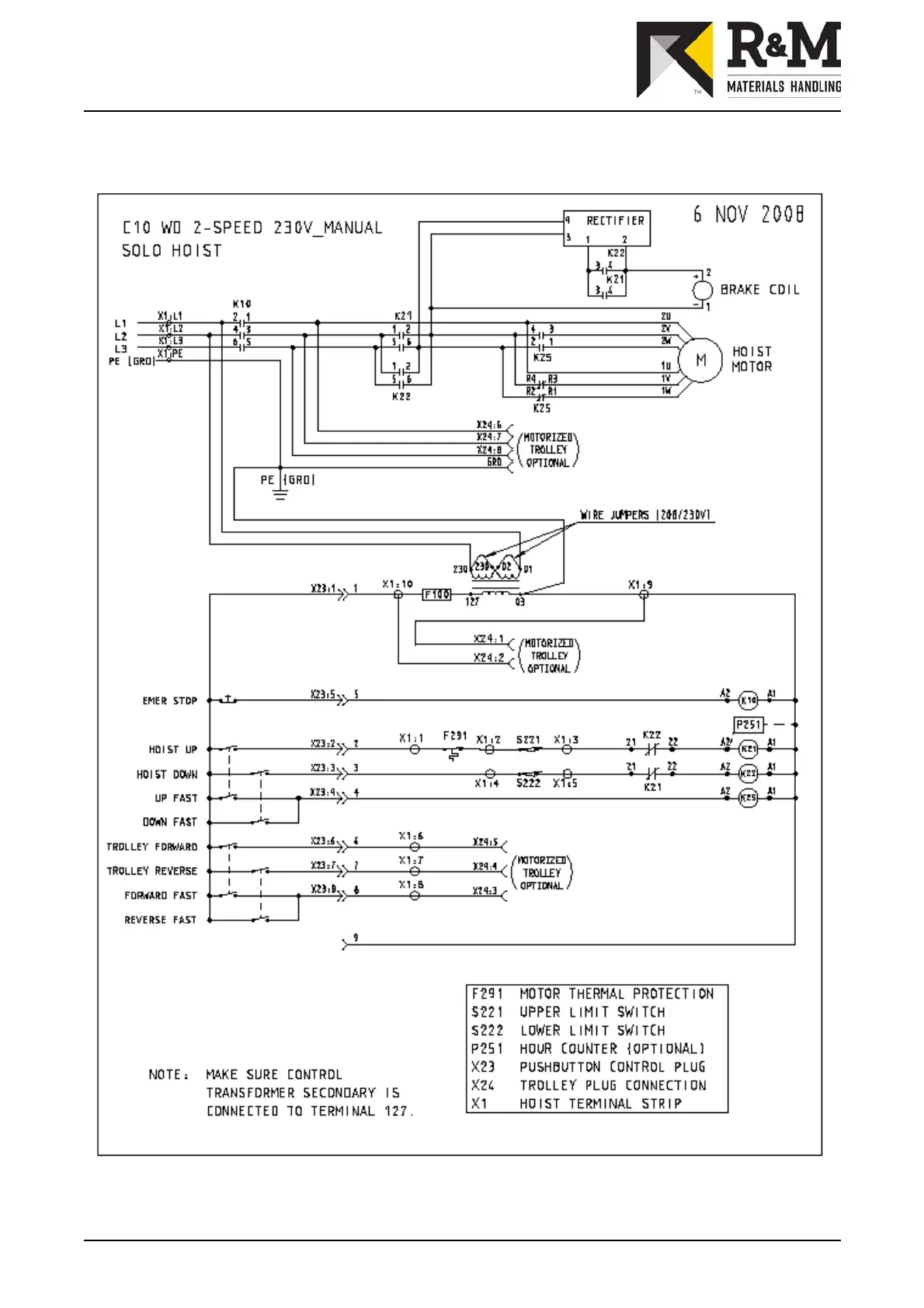

Figure 27. Two-speed solo hoist – 230 volt wiring diagram
