9.9 Push Button Assembly – Horizontal Pairs of Buttons

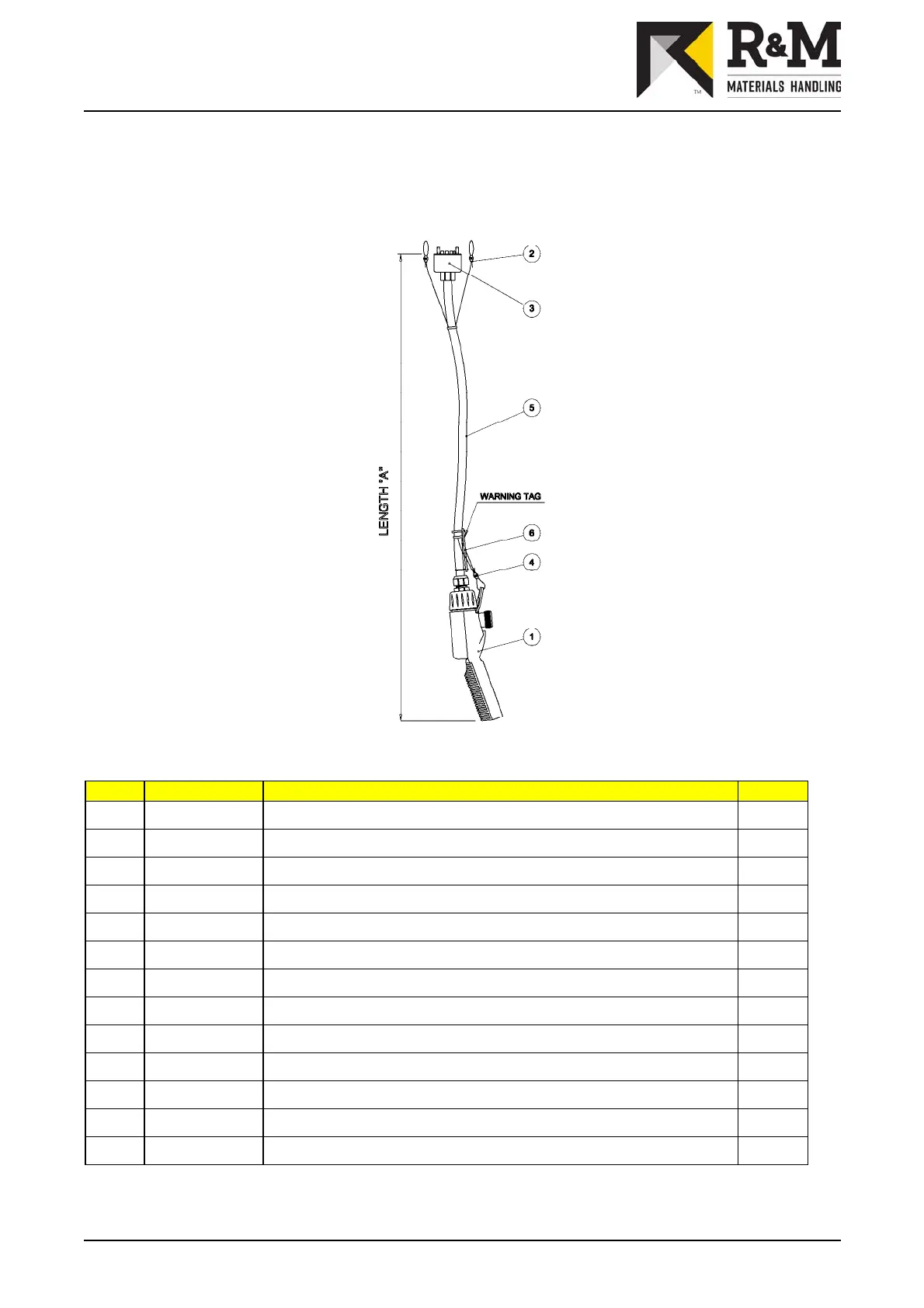

Figure 46. Push button assembly – horizontal pairs of buttons
Table 18. Push Button Assembly (Horizontal Pairs of Buttons) Parts List
ITEM PART NUMBER DESCRIPTION QTY
- 2309765010 P/B ASSEMBLY 10 FT, E-STOP, TWO SPEED HOIST 1
- 2309765015 P/B ASSEMBLY 15 FT, E-STOP, TWO SPEED HOIST 1
- 2309765020 P/B ASSEMBLY 20 FT, E-STOP, TWO SPEED HOIST 1
- 2309767010 P/B ASSEMBLY 10 FT, E-STOP, TWO SPEED HOIST, TWO SPEED TROLLEY 1
- 2309767015 P/B ASSEMBLY 15 FT, E-STOP, TWO SPEED HOIST, TWO SPEED TROLLEY 1
- 2309767020 P/B ASSEMBLY 20 FT, E-STOP, TWO SPEED HOIST, TWO SPEED TROLLEY 1
1a 52301832 P/B ENCLOSURE ASSEMBLY – E-STOP – TS HOIST 1
1b 2213466004 P/B ENCLOSURE ASSEMBLY – E-STOP – TS HOIST, TWO SPEED TROLLEY 1
2 2218000 UPPER SUSPENSION KIT 1
3 7285036 P/B ASSEMBLY - PLUG KIT 1
4 558073 SUSPENSION UNIT 1
5 52292266 PUSH BUTTON ELECTRICAL CABLE 16 GAUGE / 12 CONDUCTOR RPC 1
6 2309414005
R&M OPERATOR’S WARNING TAG - ENGLISH
1
