9.10 Push Button Assembly – Horizontal Pairs of Buttons
Figu

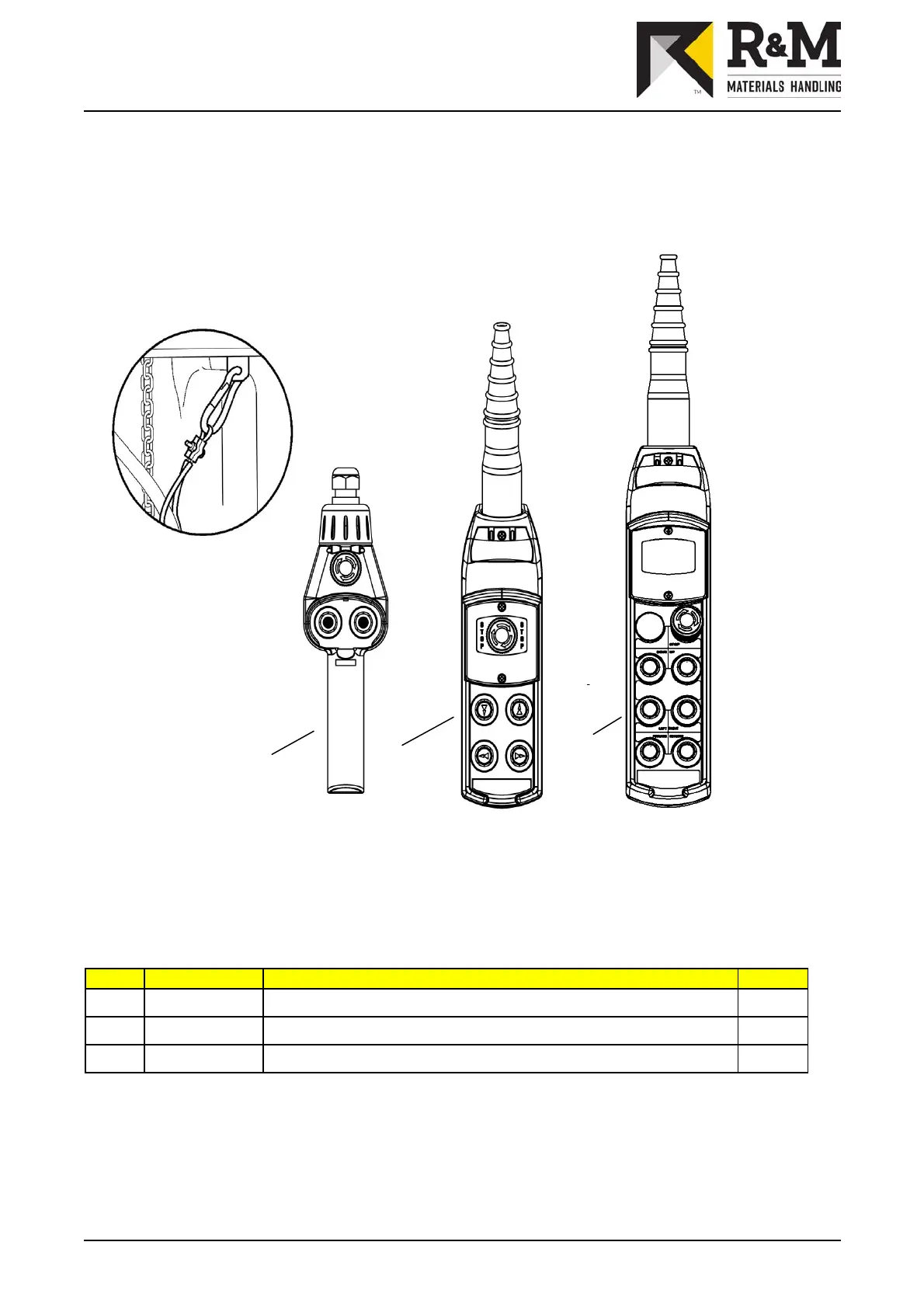

re 47. Push button assembly – horizontal pairs of buttons
Table 19. Push Button Assembly – Horizontal Pairs of Buttons Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 52301832 PISTOL GRIP P/B CONTROL ASSEMBLY – TWO SPEED 1
2 2213466004 P/B CONTROL ASSEMBLY – TWO SPEED – 5 BUTTON 1
3 2213466005 P/B CONTROL ASSEMBLY – TWO SPEED – 7 BUTTON 1
2
1
3
