9.5 Upper and Lower Limit Switch

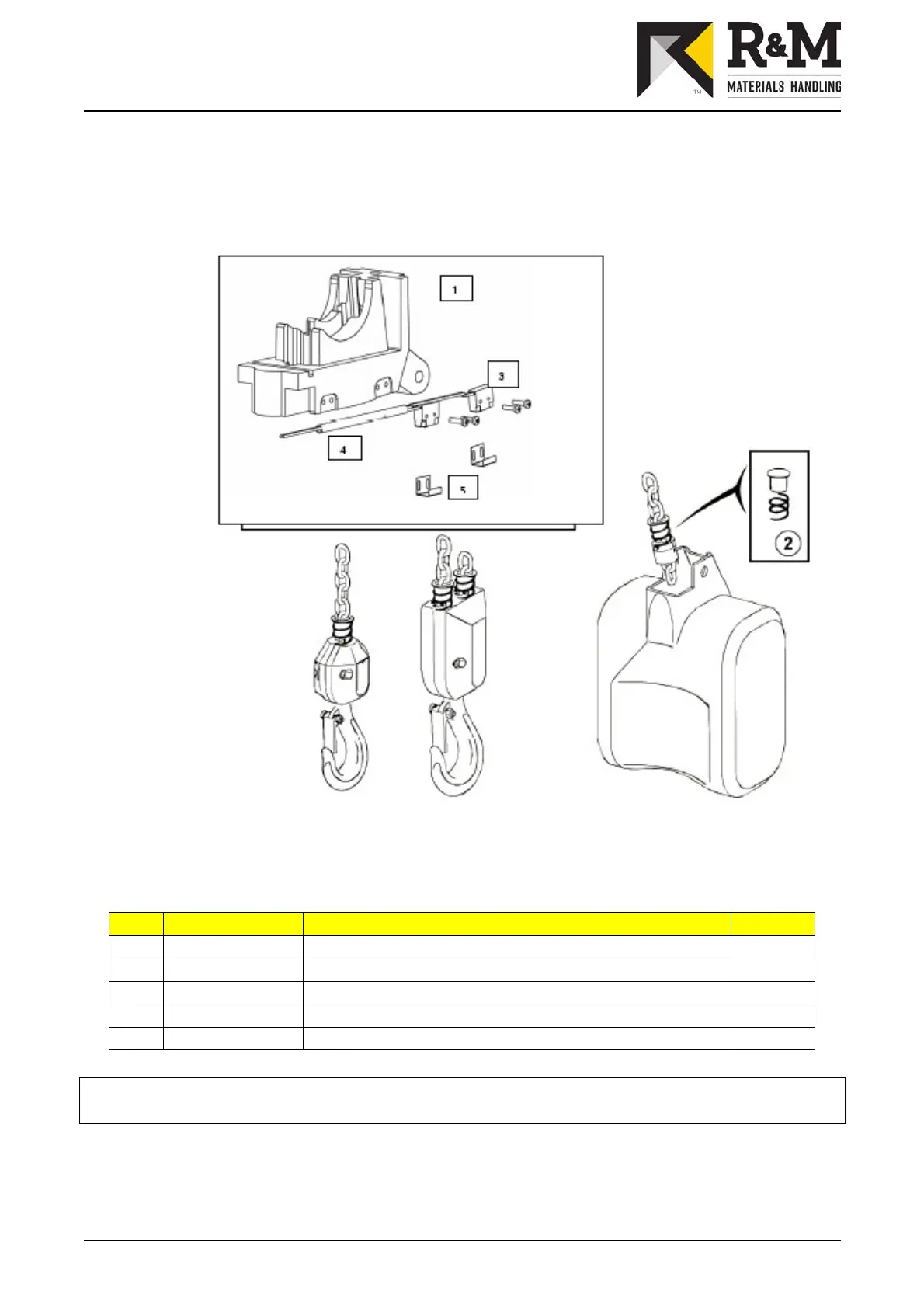

Figure 43. Upper and lower limit switch
Tabl
e 13. Chain Guide Assembly with Limit Switches Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 2243050 MICRO-SWITCHES ASSEMBLY 1
2 52295974 SPRING ASSEMBLY AND SUPPORT 1
3 7291040 MICRO SWITCHES 1
4 - CABLE GUIDE 1
5 52337705 SLIDES 2
m CAUTION: Cut off the main power supply before doing any work on the electrical cubicle.
