Instrument tour

R&S

LCX Series

30Getting Started 1179.2254.02 ─ 03

1 2

345678910

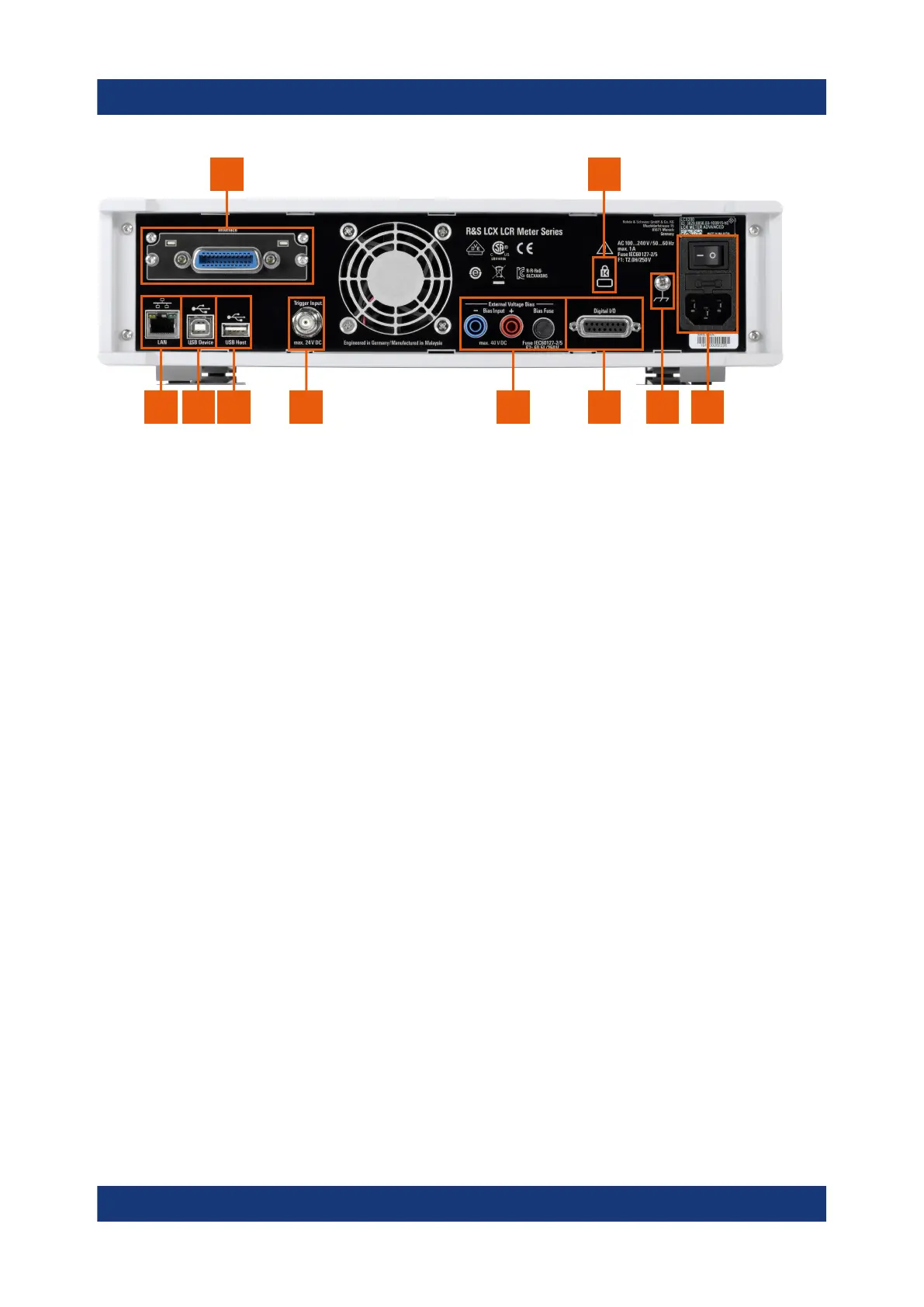

Figure 4-3: R&S

LCX rear panel

1 = IEEE-488 interface, see "IEC 625/IEEE 488" on page 30

2 = Kensington lock, see "Kensington lock" on page 30

3 = AC power connector and power switch, see "AC power supply" on page 30

4 = Ground terminal, see "Ground terminal" on page 31

5 = D-sub connector, see "Digital I/O" on page 31

6 = Bias connectors and fuse holder, see "External Voltage Bias" on page 31, "BIAS Fuse"

on page 31

7 = Trigger input connector, see "Trigger Input" on page 31

8 = USB host connector, see "USB A" on page 29

9 = USB device connector, see "USB B" on page 32

10 = Ethernet (LAN) interface connector, see "LAN" on page 32

IEC 625/IEEE 488

Option: R&S NG-B105

General purpose interface bus (GPIB) interface to connect a computer for remote

control of the R&S LCX.

See chapter "Network Operation and Remote Control > Connecting the R&S LCX

for Remote Access" in the user manual.

Kensington lock

Flat key security slot to prevent the instrument from removal.

The locking system consists of a small, metal-reinforced hole with a metal anchor

and a rubberized metal cable that is secured with a key lock. The loop at the end

of the cable allows you to tie the unit to a fixed object.

AC power supply

Mains power supply with power switch, fuse holder and IEC socket.

●

Mains power switch:

Rear panel tour

R&S LCX Series Getting Started
