Instrument control
R&S
®
LCX Series
39Getting Started 1179.2254.02 ─ 03
This manual describes the manual interaction with the instrument using the touch-
screen. It mentions the alternative methods using the keys on the instrument or
the on-screen keypads if it deviates from the standard operating procedures.
Throughout the manual, the term "select" refers to any of the described
methods, i.e. using a finger on the touchscreen or a key on the instrument or
on a keyboard.
For basic instructions on how to control the R&S LCX, see Chapter 6.2.2,
"Accessing the functionality", on page 47.
6.2.1 Understanding the display information
The initial display screen shows the measurement result window, status informa-
tion and general settings at the top. The main area displays the measurement
results, depending on the selected measurement and display mode.
For detailed information, see the user manual, chapter "Display Modes".
3
4
6
21
5

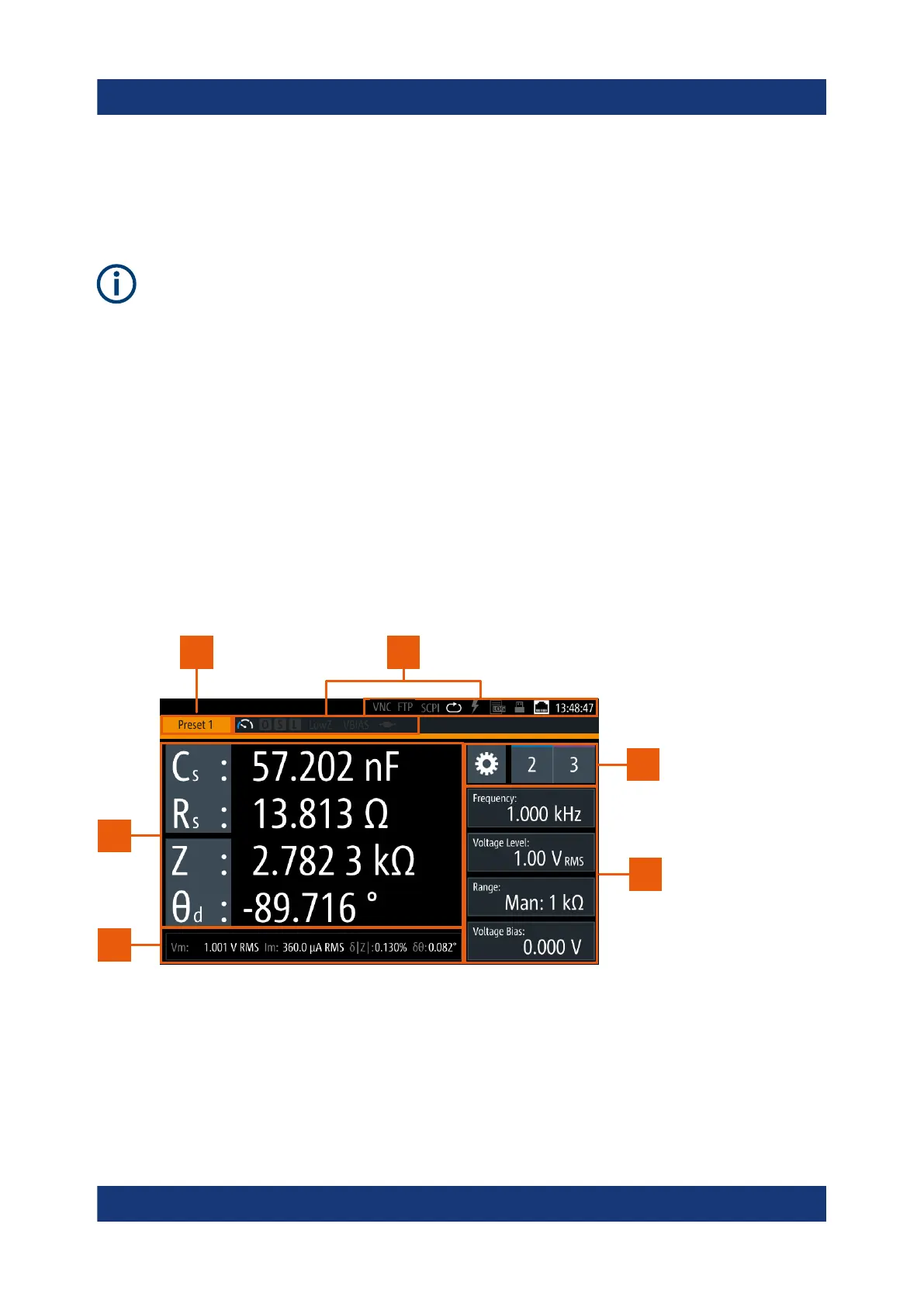

Figure 6-1: Example of screen display
1 = Configuration preset indicator, see Chapter 6.2.1.1, "Configuration preset indicator",
on page 40
2 = Status bars, see Chapter 6.2.1.2, "Status bar", on page 40
3 = Settings softkey and configuration preset softkeys, see Chapter 6.2.1.3, "Settings softkey",
on page 43, Chapter 6.2.1.4, "Configuration preset softkeys", on page 43
Means of manual interaction
