R&S LCX Series Getting Started

Instrument tour
R&S
®
LCX Series
26Getting Started 1179.2254.02 ─ 03
9 = Ground connector, see "Ground socket" on page 29
10 = POWER key, see Chapter 4.1.2.7, "POWER On/Standby key", on page 28
11 = USB host connector
4.1.1 Touchscreen display
The color TFT touchscreen at the front panel is the graphical user interface. It
shows the measurement readings, status information and settings, and provides
access to settings dialogs.

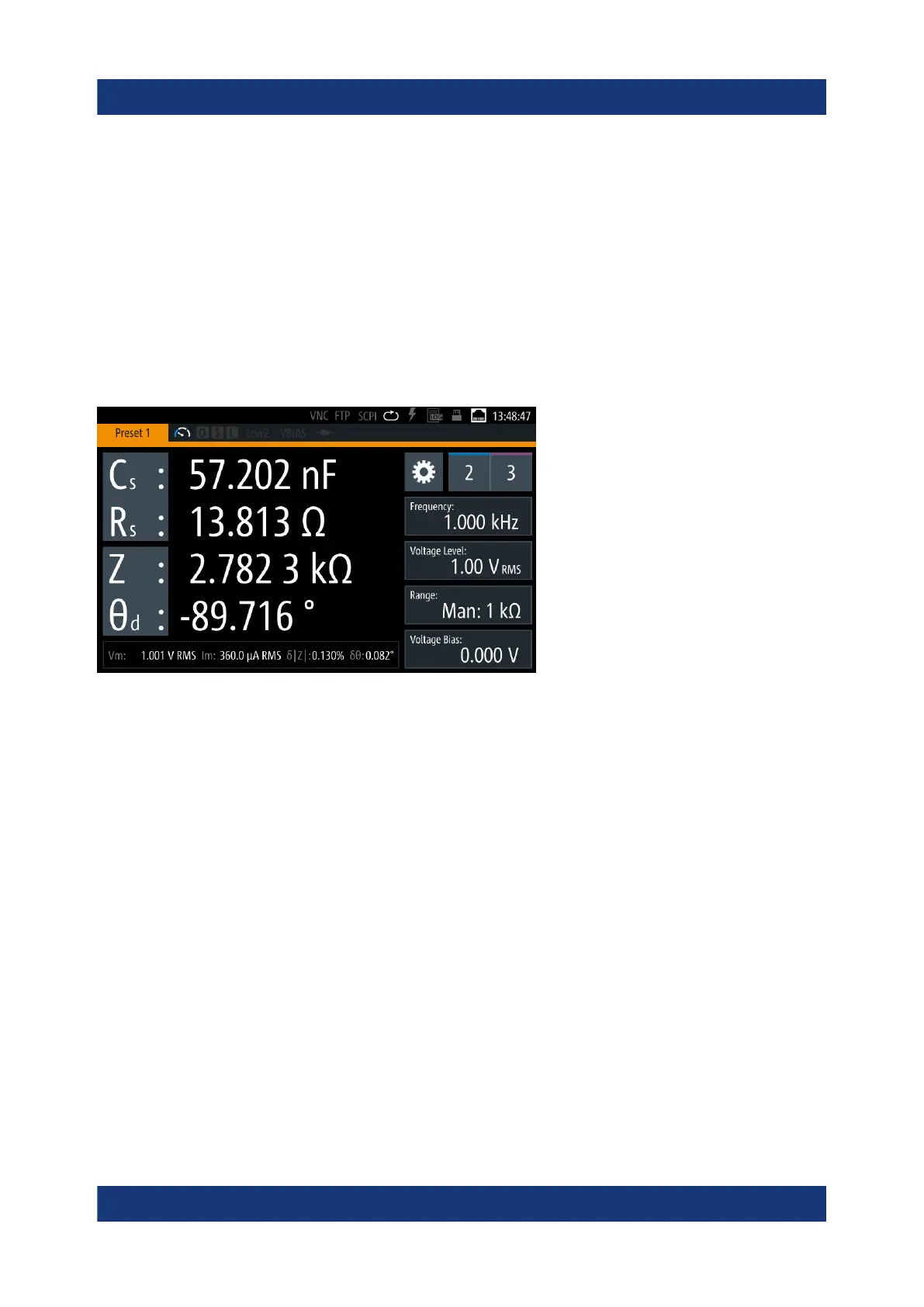

Figure 4-2: Touchscreen display
For details on the screen display, see Chapter 6.2.1, "Understanding the display
information", on page 39.
The touch-sensitive panel provides an alternative means of user interaction for
quick and easy handling of the instrument, see Chapter 6.2, "Means of manual
interaction", on page 37.
4.1.2 Keys
This section introduces the functionality of the hardkeys at the front panel. These
controls lead you to menus and dialogs displayed on the screen. For information
on how to operate the instrument, see Chapter 6.2, "Means of manual interac-
tion", on page 37.
Front panel tour
