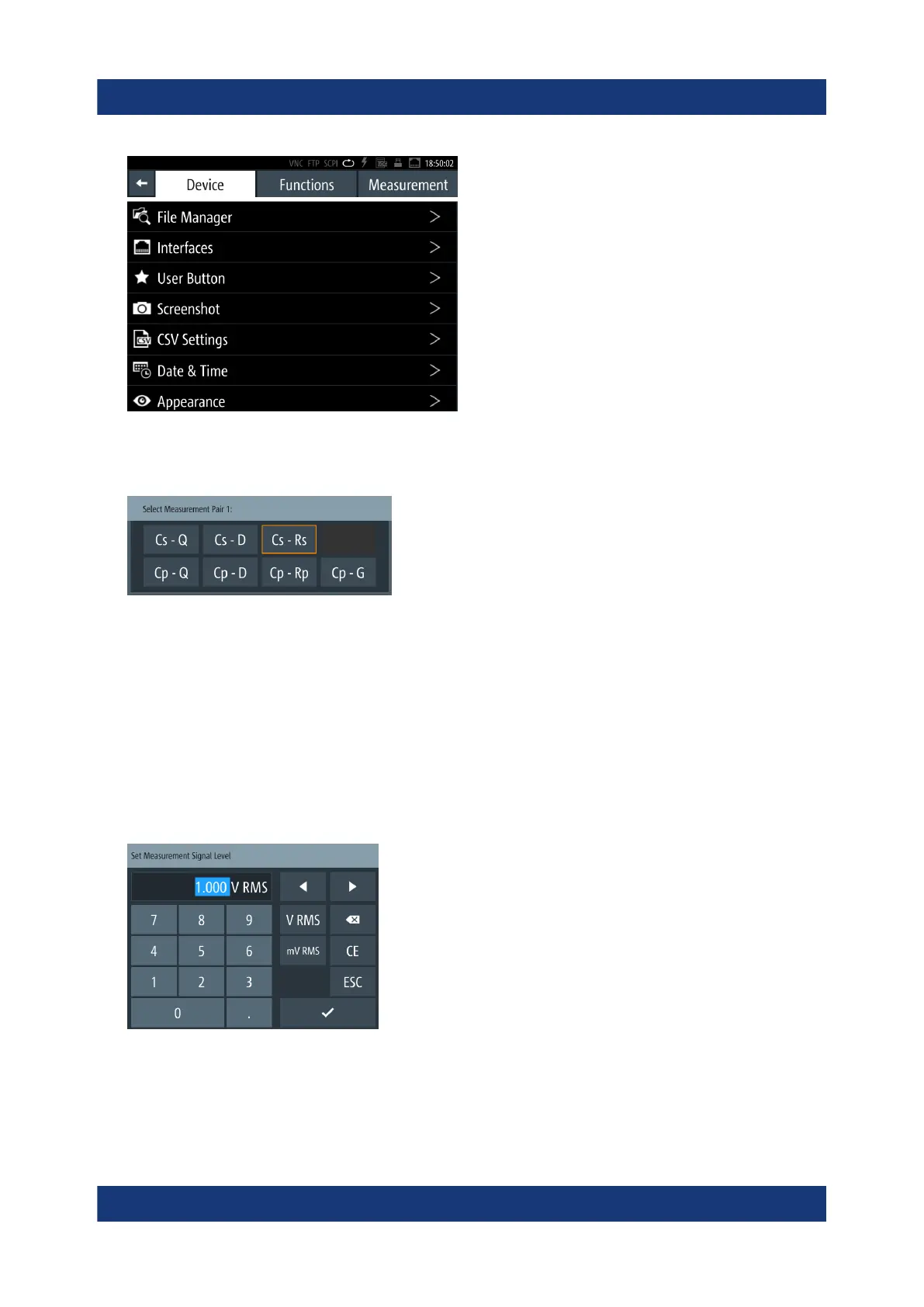

Figure 6-5: Example of a menu
●
Selection editors
Figure 6-6: Example of selection editor for measurement parameter pairs
When opened, a generic label in the header of the editor window shows the
parameter for selection. Each editor lists the available values and buttons to
confirm the selection.
●
On-screen keypads
As additional means of interacting with the instrument, either a numerical or
alphanumerical on-screen keypad appears when you activate an entry field
(see Chapter 6.2.3, "Entering data", on page 48).
Figure 6-7: Numeric on-screen keypad
