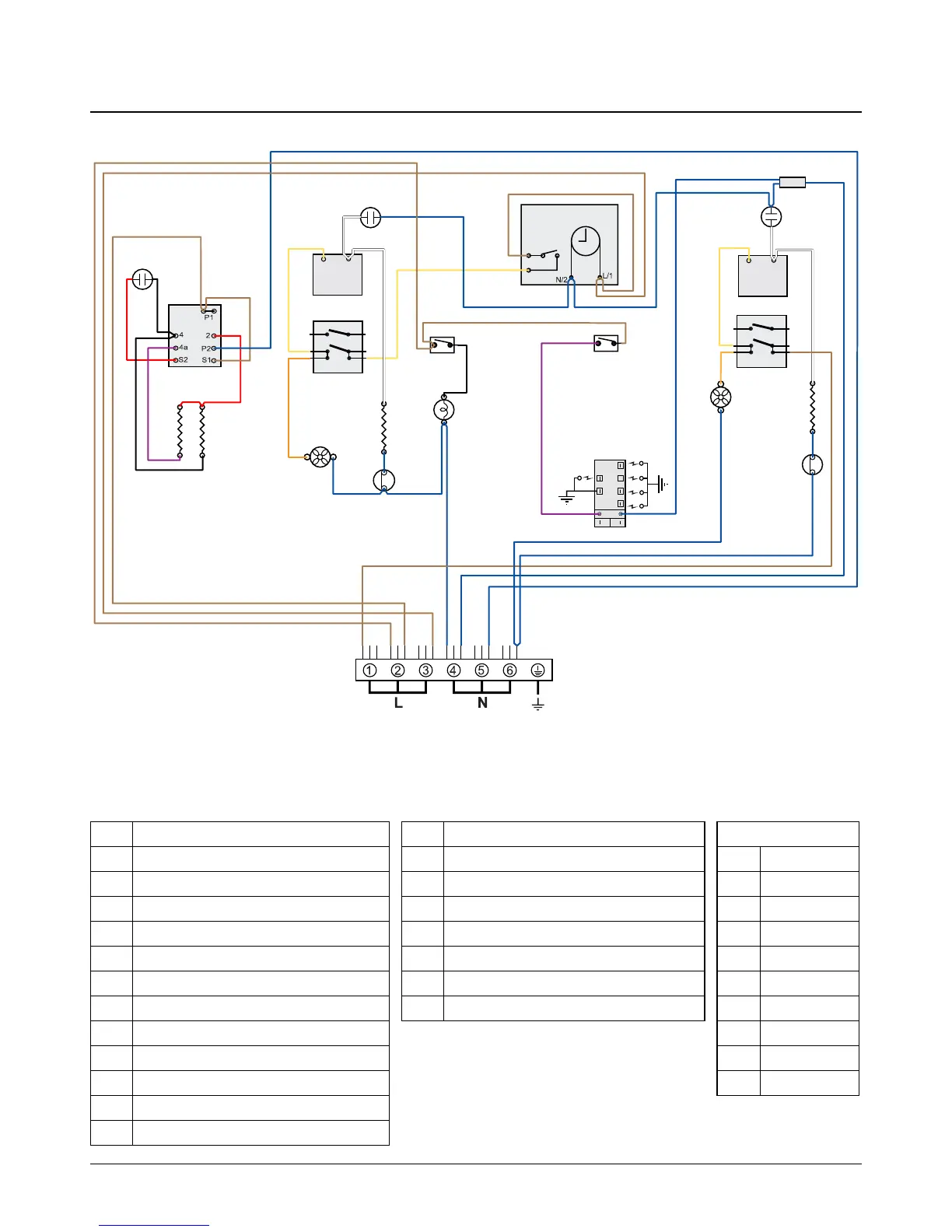

9. Circuit Diagram
a
b
e
f
c
d
1
2





�



























 






 





 


















       























Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230V 50Hz.
Colour Code
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/yellow
gr Grey
Code Description
A1 Grill control
A2 Grill element right-hand side
A3 Grill element left-hand side
B1 Left-hand fan oven thermostat
B2 Left-hand fan oven control
B3 Left-hand fan oven element
B4 Left-hand fan oven fan
C Clock
D1 Right-hand fan oven thermostat
D2 Right-hand fan oven control
D3 Right-hand fan oven element
D4 Right-hand fan oven fan
Code Description
F1 Oven light switch
F2 Oven lamp
G1 Ignition switch
G2 Ignition spark generator
H Neon
I Thermal cut-out
J Connector
