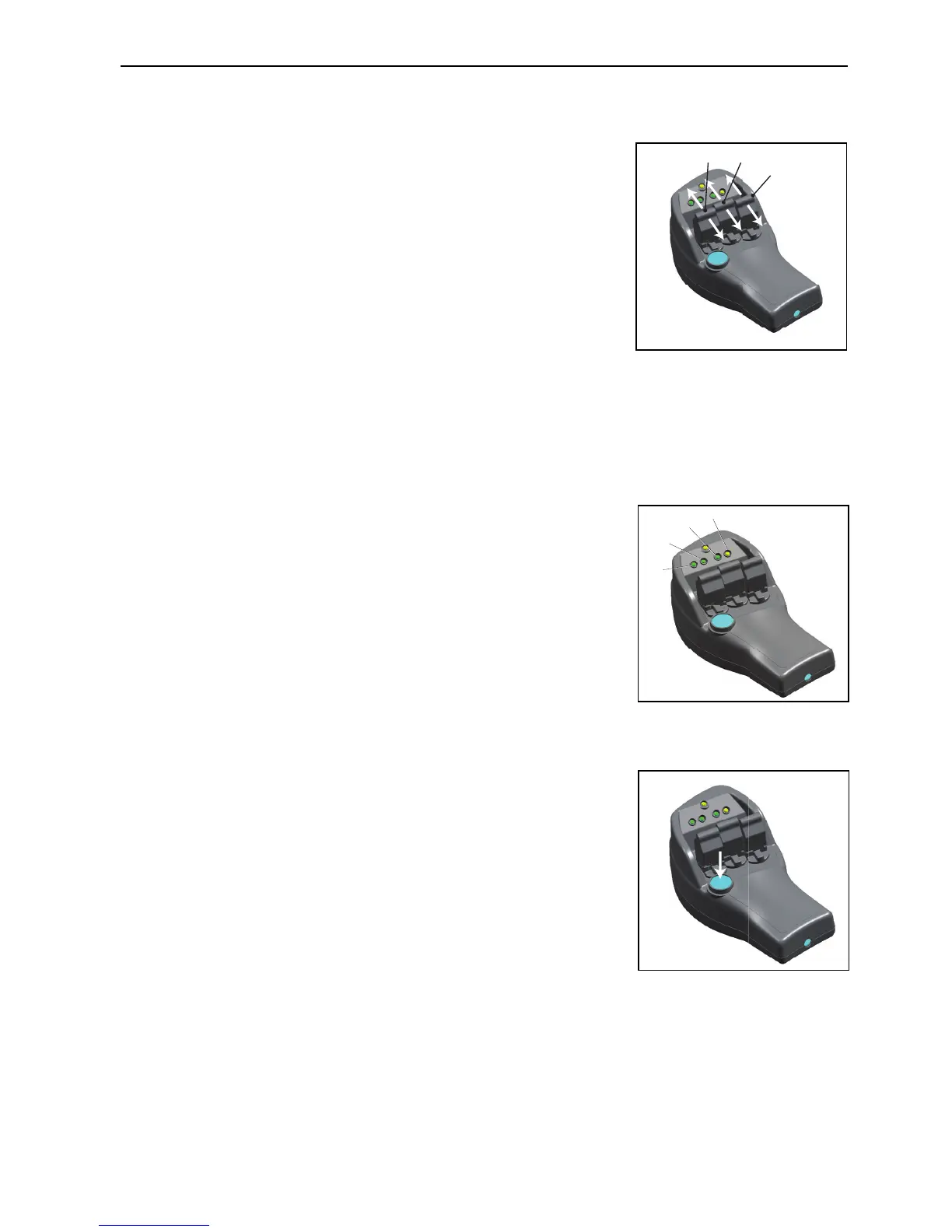

5.2.N/P/R LIFT/LOWER SWITCH’S ____________________________________________
N. Right Hand Wing Cutter Deck
P. Front Cutter Deck
R. Left Hand Wing Cutter Deck
To lower the cutting unit move the switch lever forward.
To raise the cutting unit move the switch lever rearwards
NOTE:
If the cutter is engaged when the unit is lowered the green led will illuminate when the
unit is below 400mm from the ground.
The yellow PTO LED will illuminate when the reel is rotating.
If the lever is pulled momentarily rearwards the unit will raise to the cross cut position
and continue to rotate for 3 seconds. Lowering the unit within 3 seconds will let the reel continue rotating without stopping.
If the lever is held and the unit lifts above the cross cut position the unit will continue to lift and the reel will stop rotating at
400mm. The lift will stop when the lever is released.
5.2.S, T, W, X INDICATOR LAMPS _______________________________________
S PTO engaged
T Right hand cutting unit in cutting position.
W Centre hand cutting unit in cutting position.
X Left hand cutting unit in cutting position.
5.2Y WEIGHT TRANSFER BUTTON _______________________________________
The button is blue and will transfer weight by the hydraulic system between the drive
wheels and the cutter deck.
To adjust the amount of weight transfer manually on the lift valve. See section 7.2.
