8.6 HYDRAULIC SYSTEM __________________________________________________
To fill the hydraulic tank with hydraulic oil.

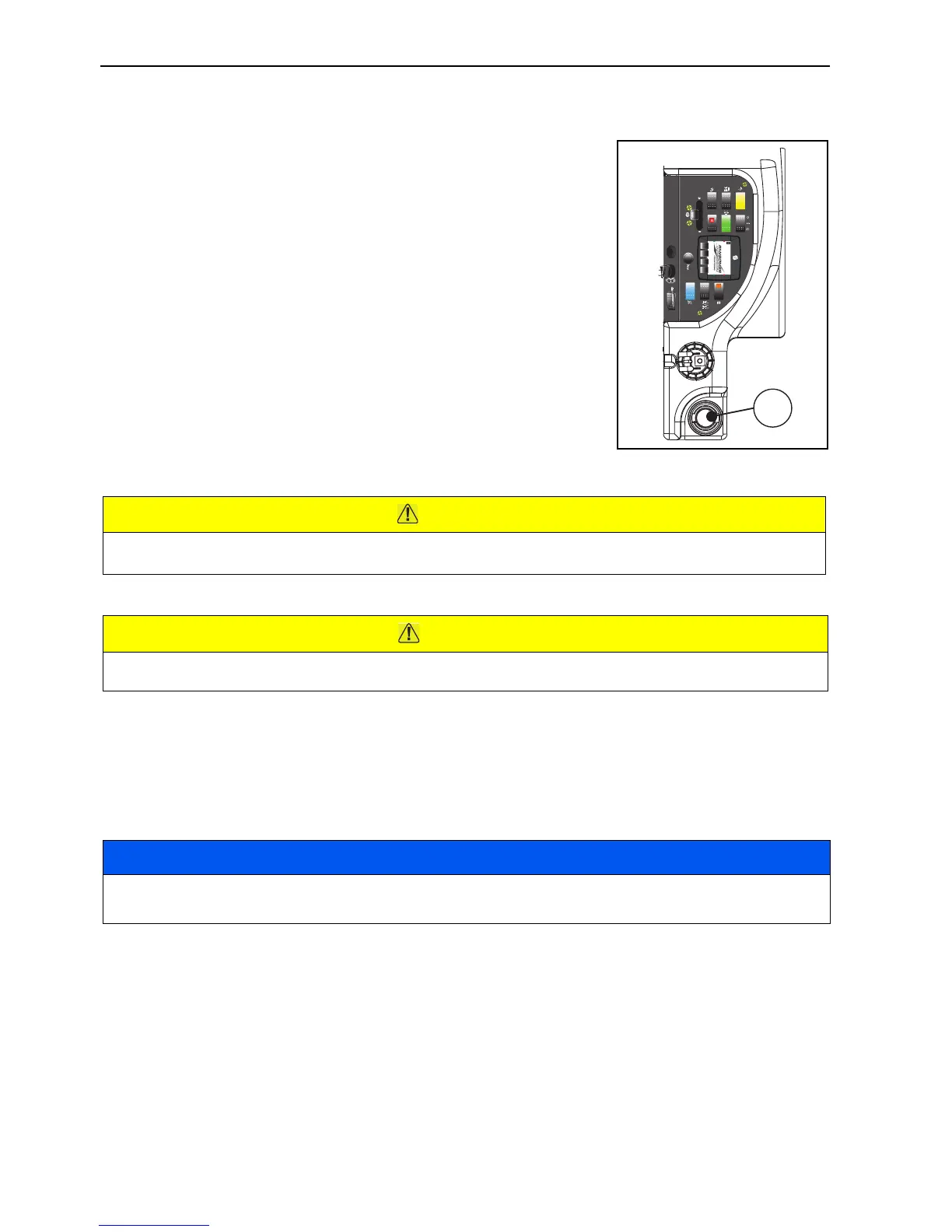

(a) Remove the filler cap (A)
(b) Using a 25 micron filter fill the tank with the correct hydraulic oil to the
correct level.
(c) Replace the hydraulic tank cap (A)
8.7 HYDRAULIC FILTER ___________________________________________________
The hydraulic system is protected by two 10 micron filters. Flow through the filter is monitored while you operate
the mower. When the difference in hydraulic pressure across the filter is greater than 16 to 20 psi (1.1 to 1.4
BAR), the hydraulic oil filter warning will be shown on the visual display. To make sure continued protection of the
hydraulic system, replace filter as soon as possible after light illuminates.
CAUTION
The Hydraulic Oil Can Damage Your Skin. Use Gloves When You Use Hydraulic Oil. If Hydraulic Oil
Touches Your Skin, Clean The Area Immediately.
CAUTION
Discard Used Hydraulic Oil As Shown In Local Safety Regulations.
NOTICE
During cold weather, the oil filter warning light can illuminate until the hydraulic fluid becomes warm.
Wait until the oil becomes warm and the warning light turn off before you operate the mower.
