en-44
6 OPERATION

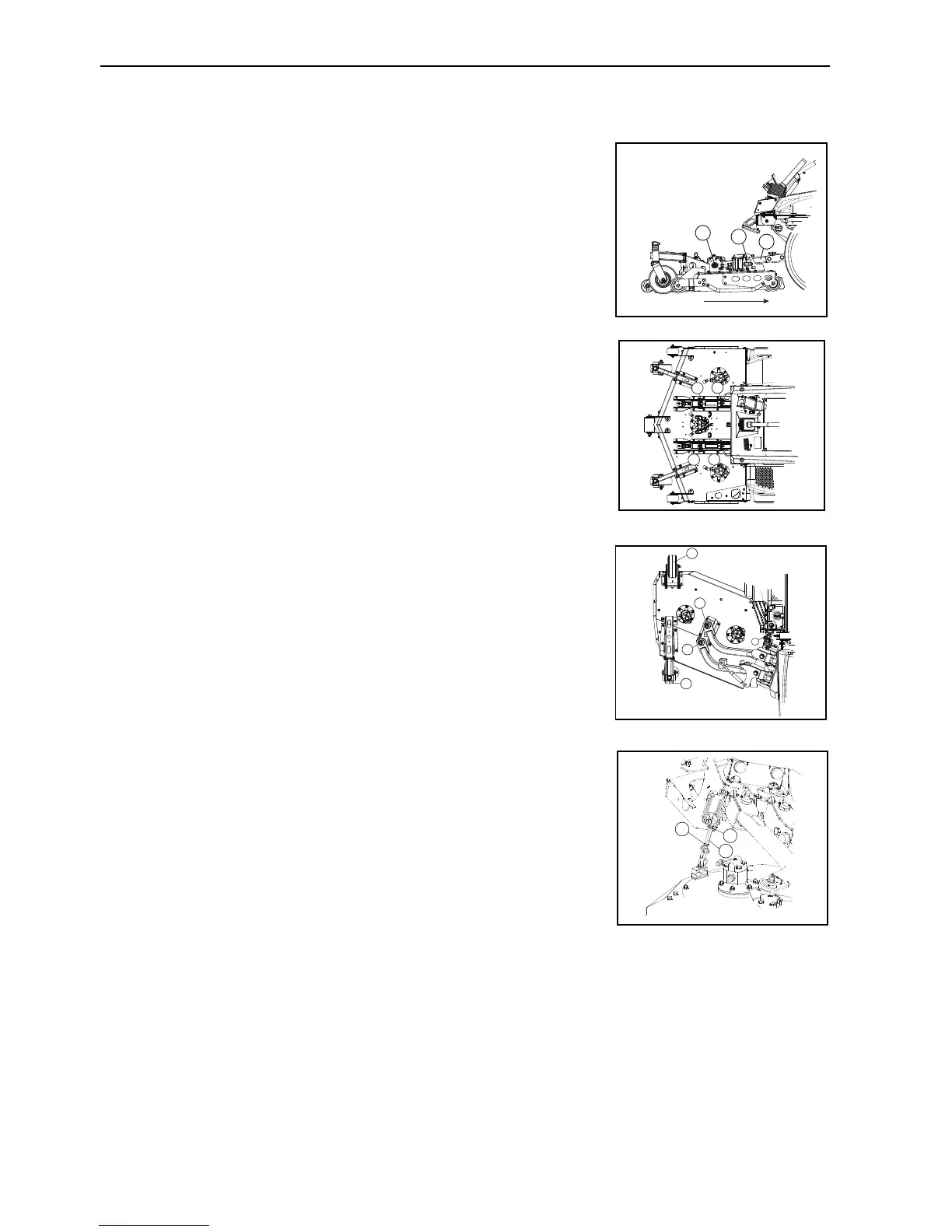

6.4 TO FIT THE CUTTER DECKS TO THE MACHINE ____________________________
Front Deck Mounting
1. Make sure the hydraulic hoses are plugged. Start the engine and
lower the lift arms (A), stop the engine and remove the ignition key.
2 Position cutter deck and align the lift arms (A) with mounting
brackets.
3 Fit the pin to the front position (B) of the arm and bracket.
4. Fasten with R clips.
5. Start the engine and lift the deck into the cross cut position, stop the
engine and remove the ignition key.
6. Fit the rear pins and R clips in the holes (C) for the height of cut
needed.
7. Start the engine and lower the deck to the ground.
Wing Deck Mounting
• Lower the wing lift arms into the lowest position.
• Move the deck into position and move the ball joints over bolts in
bridge (A). Fasten with M16 Nuts.
• Set the 2 outer caster wheels (B) to the lowest height of cut (use
decals on the decks).
• Fit the height of cut chain (C) to the bracket attached to the deck and
the bottom most hole in the belly frame bracket, see decal on deck.
• Make sure the deck is positioned parallel to the ground with the use
of a level, or by removing bolts at front of deck and measuring to the
ground.
• To change level of deck - release nuts (H) locking ball joints in
position and turn the hexagon bar (J) in the center to the right or to
the left side to lift / lower the deck. Fasten when deck is level.
• When deck is in the up most position make sure that the anti step cut chain is tight (a small amount of
slack is acceptable), when on the ground this chain must be slack.
Hydraulic Hoses
1. Assemble the hydraulic hoses to the deck motors. Tighten the hoses finger tight, then use a spanner to
tighten a further 1/2 to 3/4 of a flat (approximately).
B
C
A
C
C
B
B
B
C
B
A
A
H
H
J
