5 | Placement
28 / 92 80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB

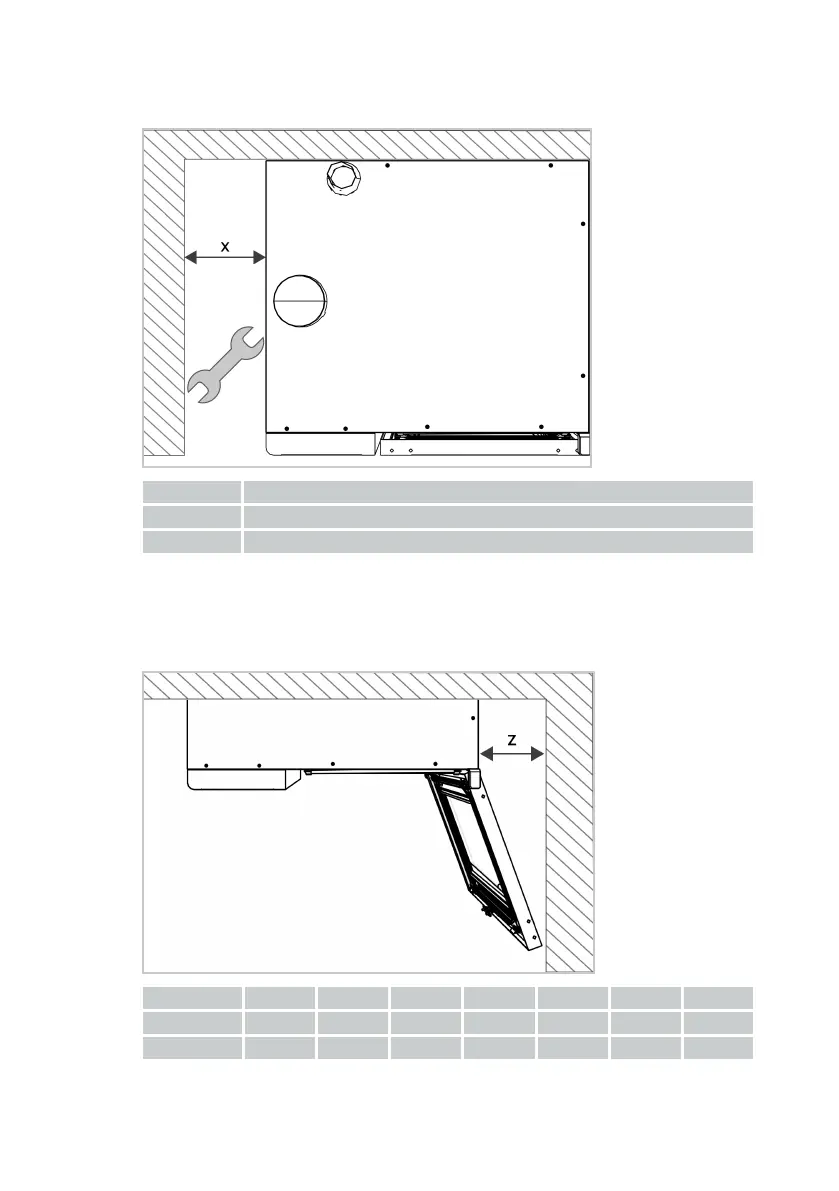

If this clearance on the left side of the unit is not possible, place the unit so that
the unit can be pulled out from the installation recess for maintenance work.
Distance on the left unit side
x (mm) 500
x (inch) 20
Recommended clearance on right side of the unit
To open the unit door to the first lock lever, place the unit with a minimum re-
commended clearance to the wall on the right. The clearance depends on the
unit size, as shown in the following table.
Unit size 6-2/3 6-1/1 6-2/1 10-1/1 10-2/1 20-1/1 20-2/1
z (mm) 279 246 316 246 316 268 338
z (inch) 11 10 12 1/2 10 12 1/2 11 13
