6 | Electrical connection
80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB 51 / 92
6.5 Conduit connection (USA and Canada only)
The conduit connection for installing tabletop units is not included with the unit
and must be ordered separately.
The conduit connection is required for units with the following voltage variants.
Refer to the following table for diameters of conduit connection kits:
Voltage vari-
ants
6-1/1 10-1/1 6-2/1 10-2/1
11 - 3 AC240V
60 Hz
3/4 inch 1 inch 1 inch 1 1/4 inch
12 - 3 AC208V
60 Hz
19 - 2 AC208V
60 Hz
1 inch
42 - 3 AC440V
60 Hz
1/2 inch 3/4 inch 3/4 inch 1 inch
43 - 3 AC480V
60 Hz
1/2 inch 3/4 inch 3/4 inch 1 inch
6.5.1 Carry out conduit connection
a The unit is switched off.
a All power sources are switched off by way of an external circuit breaker.
a The matching pipe adapter is loosely placed on the wires (the pipe adapter is
not included).
a The wires are inserted in the cable. The lock nut and the seals for the outside
of the unit are loosely on the cable.

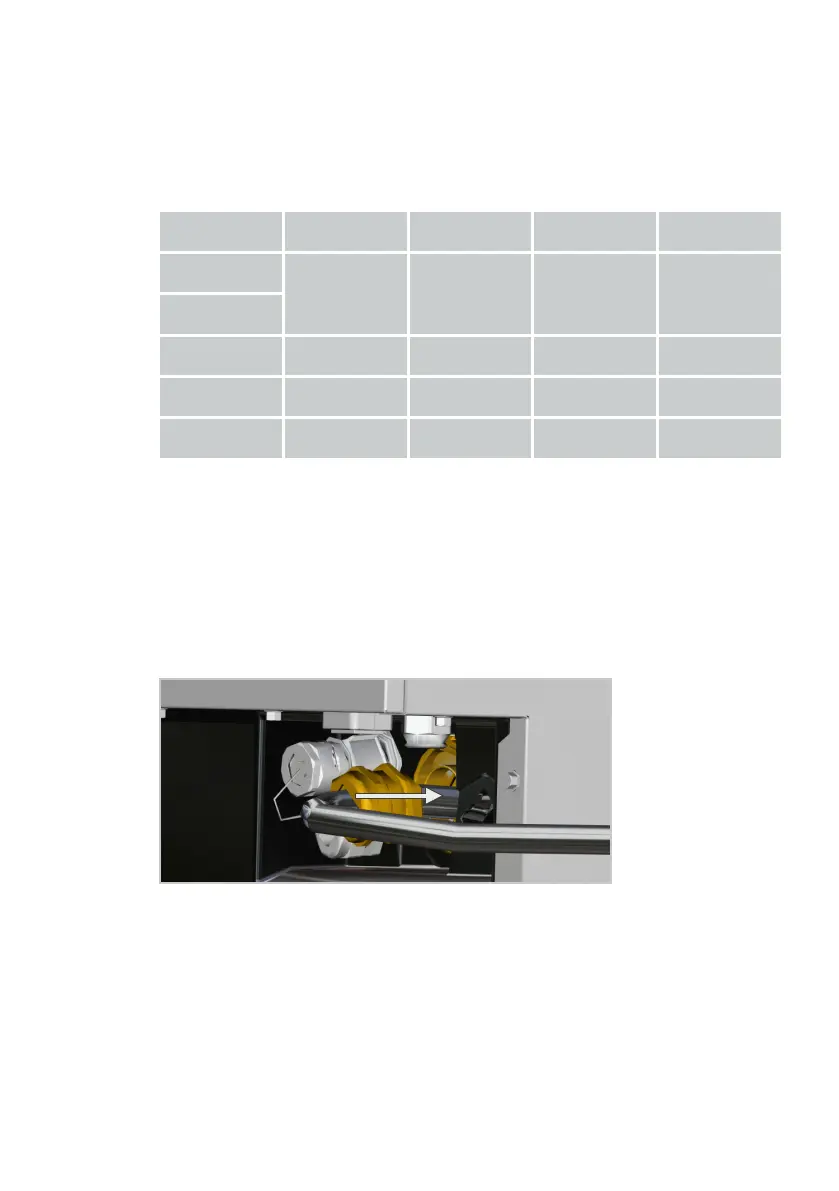

1. Mount the appropriate pipe adapter to the electrical connection on the back
of the unit.
2. Open the left side panel.
> The electrical compartment is open.
