5 | Placement
80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB 33 / 92

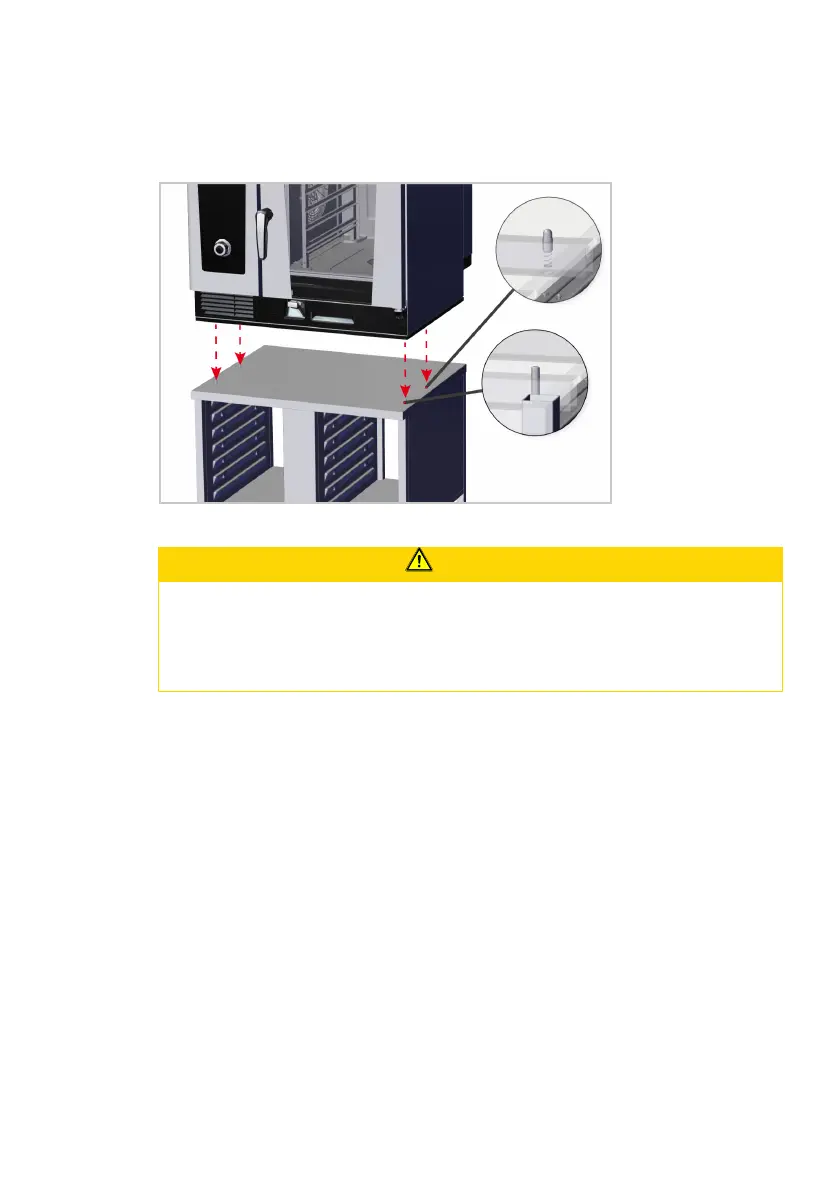

1. Lift the unit onto the stand, e.g. using carrying straps.
2. Position the unit with the spring pins.
3. Screw the unit to the stand with 2 screws. The diagram indicates the posi-
tion of the screws in the stand. The screws are attached with the nuts wel-
ded in the unit.
5.2.3 Align the base frame horizontally and fasten
CAUTION
Shifting the unit to the installation position.
Risk of crushing if the unit is shifted.
Gas units can damage gas lines.
n
Secure the unit with the fixing kit.
Non-mobile stand
Levelling the stand
a The unit is positioned on the stand and is standing at its intended installa-
tion surface.
1. Place 2 spirit levels on the unit: 1 spirit level along the right edge of the unit
and 1 spirit level along the front edge of the unit.
2. Make the unit level on the right by turning the front right and back right feet
of the stand.
3. Make the unit level on the left by turning the front left and back left feet of
the stand.
Securing the stand
Secure the stand against slipping with the mounting kit.
