5 | Placement
34 / 92 80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB
The mounting kit including the special label, screws and dowels is not included
in the delivery of the unit and can be ordered separately from the manufac-
turer under article number 8700.0317.

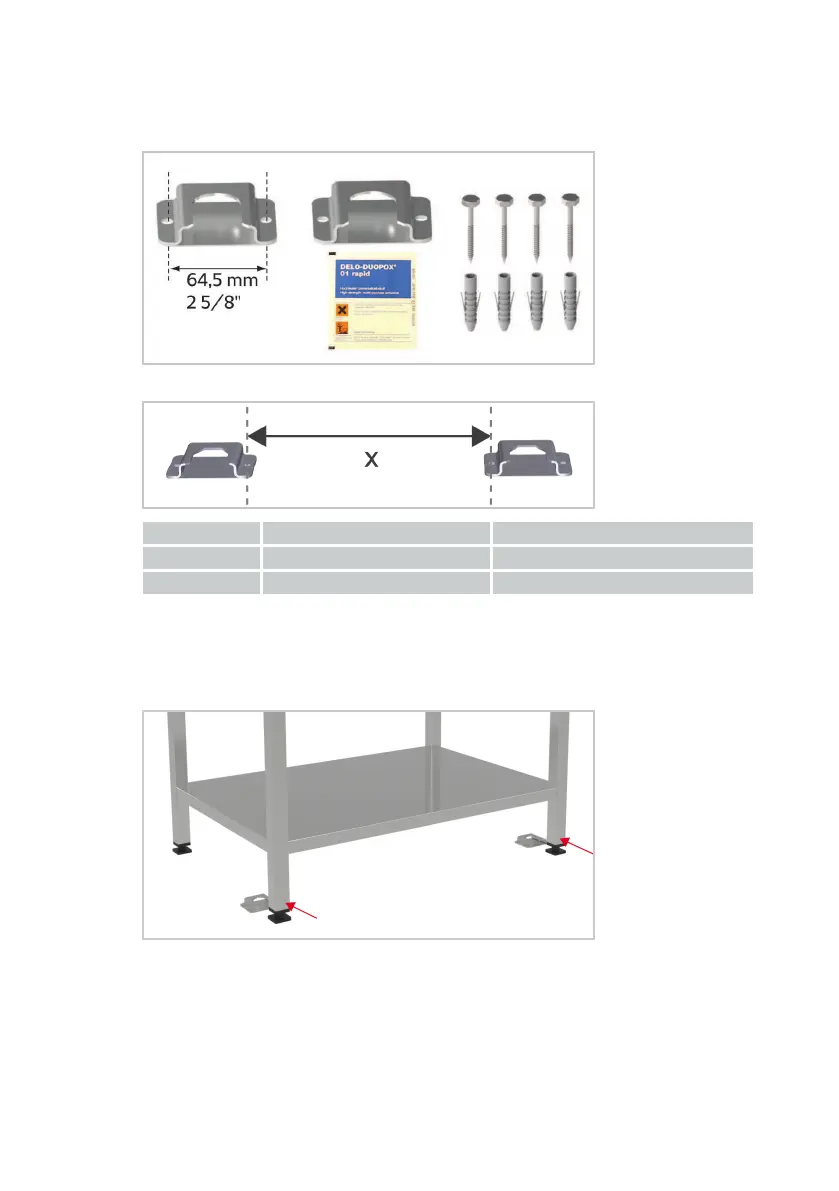

Adhere to the clearances of the foot locks for the relevant unit sizes:
6-1/1 - 10-1/1 6-2/1 - 10-2/1
x [mm] 755.5 977.5
x [inch] 29 3/4 38 1/2
a The foot locking mechanisms and the mounting kit are ready for use.
1. Fix the foot locks to the floor for the front feet with the special adhesive or
screws and anchors. Make sure that both foot locks with the openings
show towards the front.
2. Insert the stand into the foot locks.
Mobile stand
Align mobile stand
To counter any bumps in the ground and to align the mobile stand, proceed as
follows:
1. Loosen the headless screws on the castors with an Allen key.
2. Adjust the height to the castors with a screw wrench until the castors are
secure.
