5 | Placement
32 / 92 80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB
WARNING
Height-adjustment with unit feet or levelling frame
Risk of burning during operation when loading on rack rails above 1600
mm [63 inch].
n
Affix the safety label enclosed to the unit.
n
Inform the end user about the hazard of elevated rack rails.
NOTICE
Dirty unit due to broken sealing strip
A sealing strip is affixed to the underside of the unit to seal it at the
installation site. The sealing strip prevents dirt from getting underneath the
unit. When moving the unit, take care not to damage this seal.
Pre-requisites
n
When placing the unit on a base frame or base cabinet, be sure to use only
original equipment from the manufacturer for the base frames and cabin-
ets.
n
The unit must only be placed on a level installation surface. Unevenness
across the width of the unit must be no greater than 1 mm [0.04 inches] .
n
If the installation surface is not even, use a levelling frame to level the sur-
face.
n
The installation surface must be clean and free of grease.

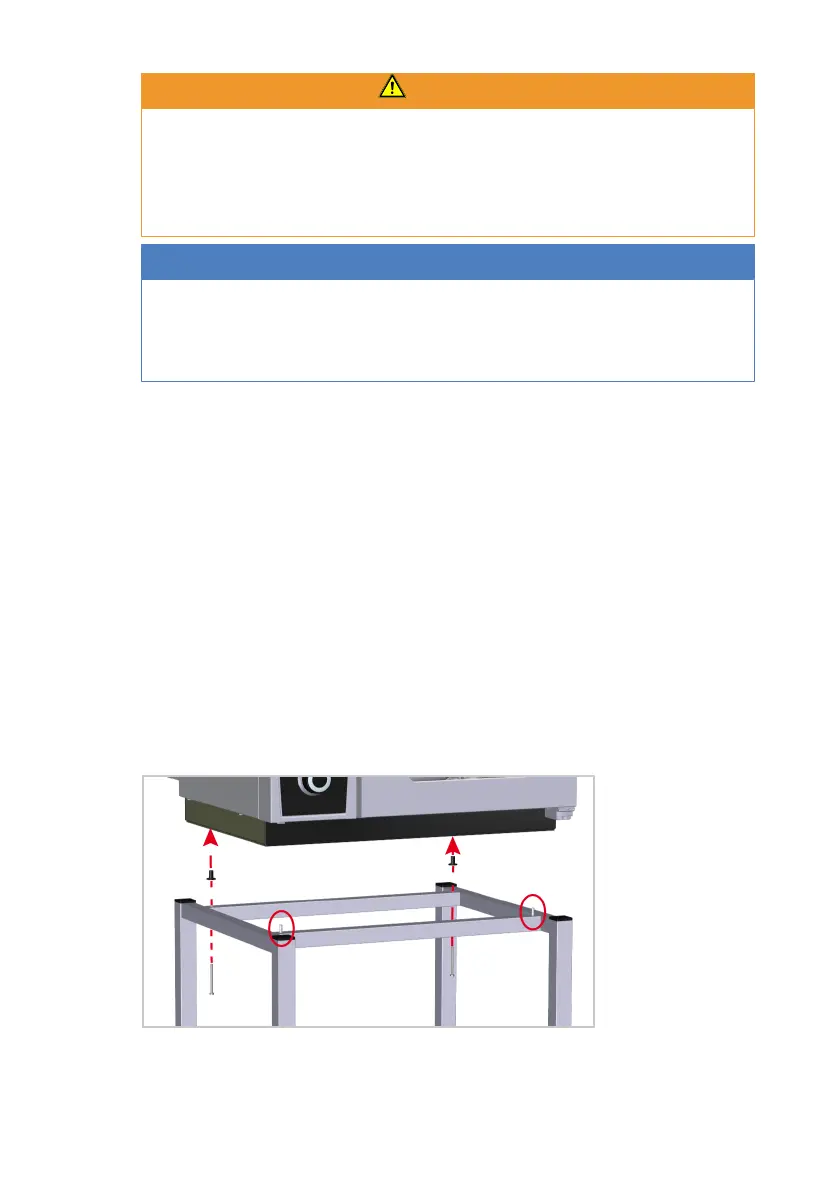

5.2.1 Unit size 6-2/3 GN set up on base frame
a The installation surface is level, clean and free of grease.
a 2 neoprene blind rivet nuts and 2 screws are provided to secure the unit.
1. Place the 2 neoprene blind rivet nuts in the holes on the rear area on the
underside of the unit.
2. Place the unit on the stand. Make sure that the positioning bolts of the
stand fit into the front holes on the underside of the unit.
3. Insert the 2 screws from underneath into the rear holes and tighten them.
5.2.2 Unit sizes 6-1/1 up to 10-2/1 GN set up on base frame
a The installation surface is level, clean and free of grease.
a Carrying aids such as carrying straps are available.
