INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 17 of 60
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
11.0 CONTROLS
11.1 Plus device control unit (only for
G8945V.26S - G8945ITV.26S -
G8945D.26S - G8945ITD.26S models)

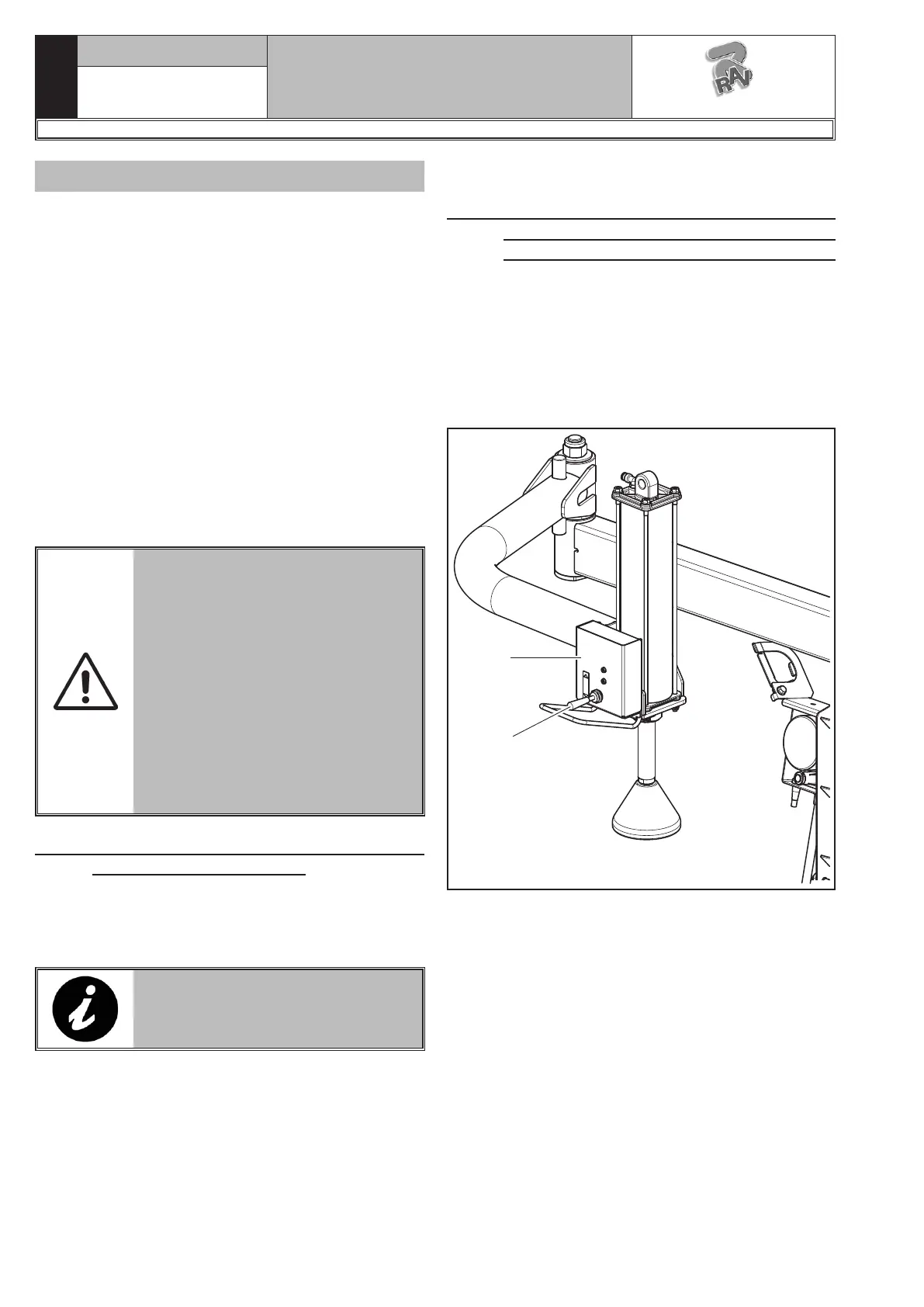

It is made up of an handle control (Fig. 16 ref. 1),
positioned on the device. This handle control allows
to operate the vertical translation of the pressor roll.
Lift the lever (Fig. 16 ref. 2) to operate the upwards
translation, and lower the lever (Fig. 16 ref. 2) to
perform the downwards translation.
The device positioning next to the tyre is a completely
manual operation.
1
2
Fig. 16
Only for 110V - 60Hz monophasic version
The machine is supplied with bipolar cable of 2 m,
CSA certified. A plug corresponding to the following
requirements must be connected to the cable:
• Conformity to Norm UL/CSA
• 110V - 60Hz – 32A
• 1P + N + Ground
• Protection degree IP 44 or equivalent
On delivery, the machines are preset to operate at a
three-phase voltage of 230/400 V - 50/60 Hz, with a
monophasic voltage of 220/240 V - 50/60 Hz (for the
versions with inverter) or with a monophasic voltage of
110V 60Hz (on demand for G8945V.26 - G8945ITV.26
- G8945V.26S - G8945ITV.26S models).
For any other type of power supply, ask the manufac-
turer at the time of purchase: a machine functioning
under the required voltage conditions will be prepared.
FIT A TYPE-APPROVED PLUG
TO THE MACHINE CABLE (THE
GROUND WIRE IS YELLOW/GREEN
AND MUST NEVER BE CONNECTED
TO ONE OF THE PHASE LEADS).
MAKE SURE THAT THE ELECTRI-
CAL SYSTEM IS COMPATIBLE
WITH THE RATED POWER AB-
SORPTION SPECIFIED IN THIS
MANUAL AND APT TO ENSURE
THAT VOLTAGE DROP UNDER
FULL LOAD WILL NOT EXCEED
4% OF RATED VOLTAGE (10%
UPON START-UP).
10.1 Direction of rotation of motor (versions
with three phase motor)
Once all power connections have been made, make
sure that the mandrel is rotating in the right direction
(pedal lowered, clockwise rotation). If the direction of
rotation is wrong, swap two phase wires in the plug.
FAILURE TO OBSERVE THE ABOVE
INSTRUCTIONS WILL IMMEDIATE-
LY INVALIDATE THE WARRANTY.
