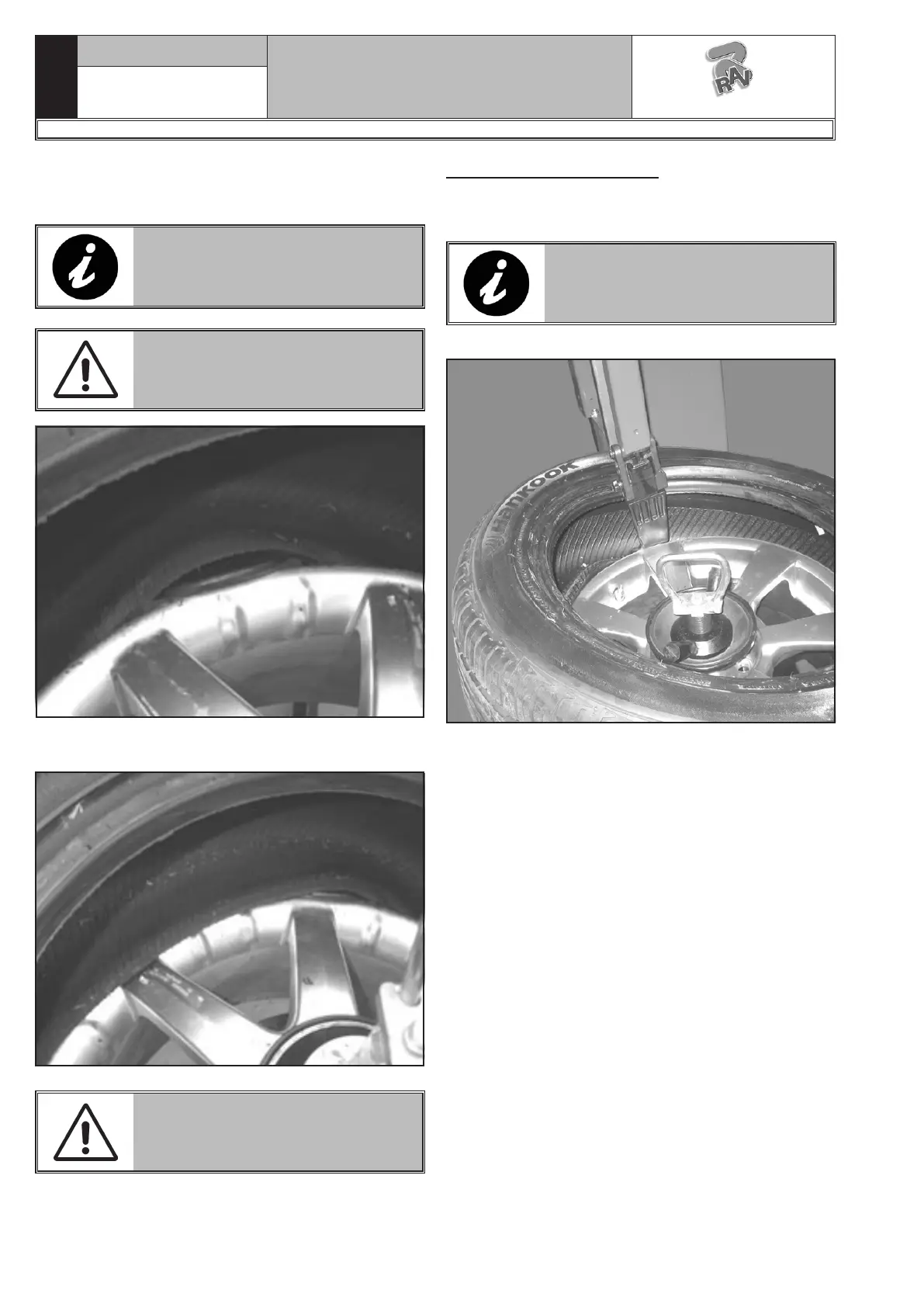

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 29 of 60
2. Therefore, introduce the beading roll through the
appropriate lever (see Fig. 18 ref. 3) between the
rim edge and the lower bead (see Fig. 48).
THE BEADING DISC MUST EXERT
PRESSURE ON THE TYRE BEAD
BUT NEVER ON THE RIM.
USE VERY CAREFULLY THE BEAD
BREAKING ROLLER IN ORDER TO
AVOID POSSIBLE HANDS CRUSH-
ING.
Fig. 48
3. Then, rotate and complete bead disassembly (see
Fig. 49).
Fig. 49
WHEN THE BEADS COME OUT OF
THE RIM THE TYRE MIGHT FALL.
CARRY OUT VERY CAREFULLY
THESE OPERATIONS.
12.8 Mounting the tyre
To mount the tyre, proceed as follows:
1. Lubricate the tyre’s beads.
USE ONLY TYRE LUBRICANTS.
SUITABLE LUBRICANTS CONTAIN
NO WATER, HYDROCARBONS, OR
SILICON.
2. Position the tool (Fig. 50 ref. 1) onto the rim edge.
Fig. 50
3. Hook the lower bead on the tool then rotate clock-
wise until the complete assembly.
4. Then, position the upper bead on the tool assembly
area (Fig. 51 ref. 1).
5. Place the presser cone (Fig. 51 ref. 2) (if present) in
“4 o'clock” position from the machine-head axis and
press on the tyre operating the lever of the control
unit (Fig. 51 ref. 3) downwards.
6. Rotate clockwise until tyre complete assembly.
7. When these operations are over move the tool and
grip-cone (if present) into rest position.
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
