INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 22 of 60

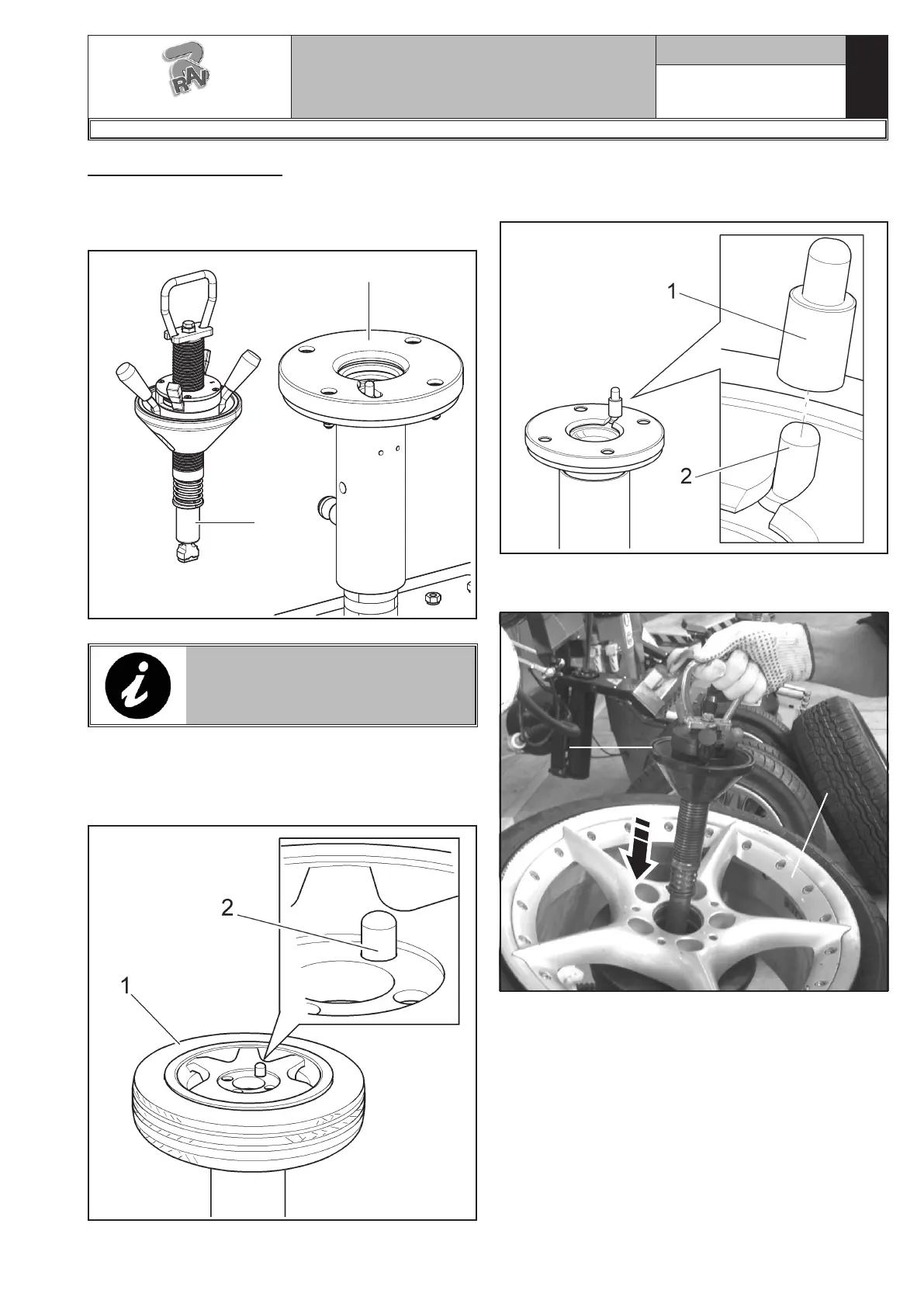

12.5 Wheel clamping
All rims must be locked on the rubber plate (Fig. 24
ref. 1
) through the central hole using the proper lock-
ing device (
Fig. 24 ref. 2
).
1
2
Fig. 24
IN CASE OF USE OF RIMS WITHOUT
CENTRAL HOLE, IT’S NECESSARY
TO USE THE PROPER FIXTURE
(AVAILABLE ON DEMAND).
To lock a rim proceed as follows:
1. Dowel the wheel (Fig. 25 ref. 1) on the locking
platform and check that the dragging pin (Fig. 25
ref. 2) enter in a hole placed on the rim hub.
Fig. 25
2. If the wheel hub is higher then the dragger (Fig. 26
ref. 2), use the extension (Fig. 26 ref. 1) supplied
on issue.
Fig. 26
3. Insert the shaft complete with cone (Fig. 27 ref. 1)
on the rim (Fig. 27 ref. 2).
Fig. 27
1
2
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
