INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 23 of 60

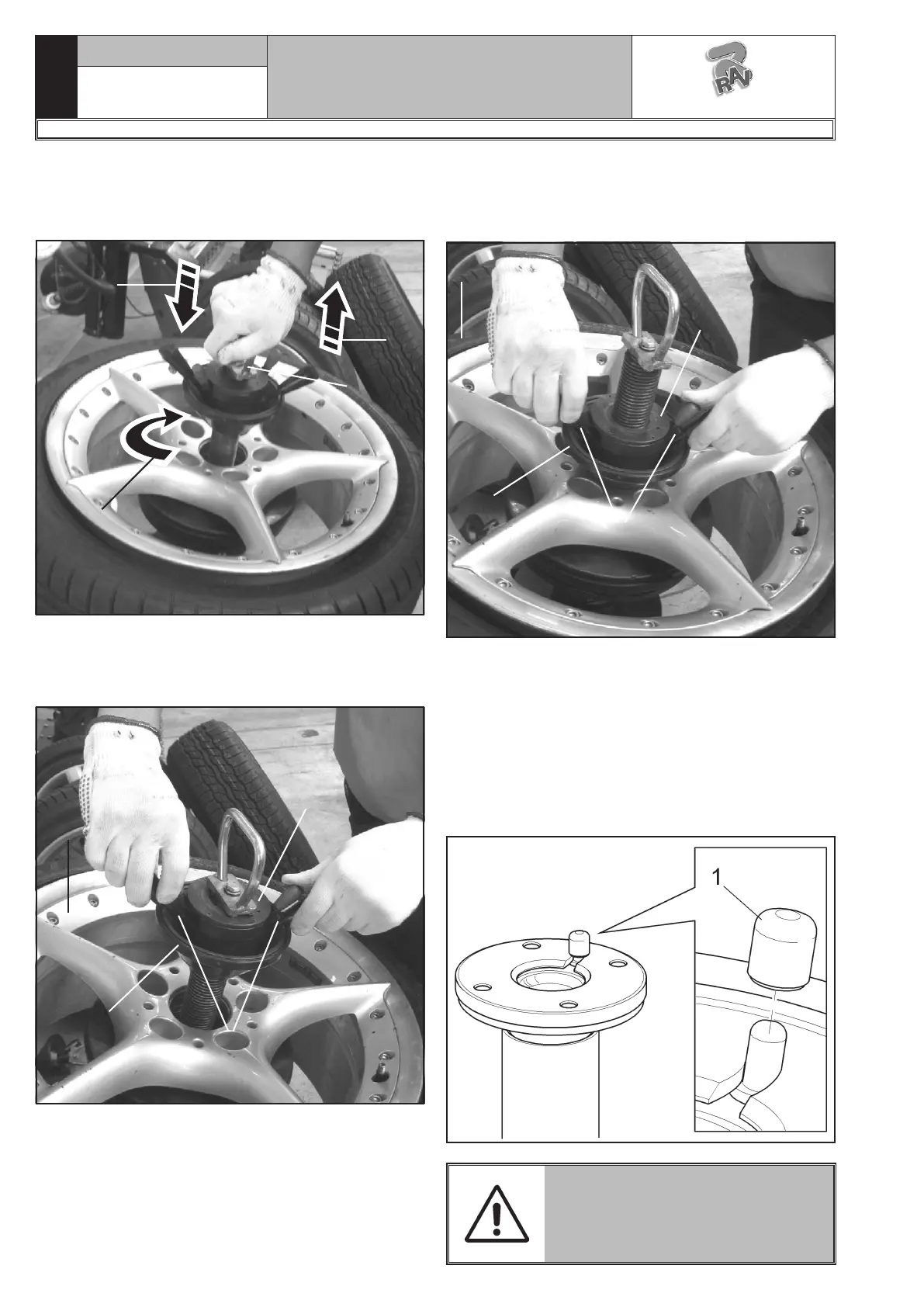

4. Through the proper handle (Fig. 28 ref. 1), push
on the lower part (Fig. 28 ref. 2), turn it of 90°
(Fig. 28 ref. 3) and lift the shaft (Fig. 28 ref. 4)
to hook it into the hole.
Fig. 28
1
2
3
4
5. Trough the internal little levers (Fig. 29 ref. 1),
loose the ring nut and approach the ring nut
(Fig. 29 ref. 3) and cone (Fig. 29 ref. 4) to the
rim (Fig. 29 ref. 2).
Fig. 29
1
3
4
2
6. Then, turn the ring nut (Fig. 30 ref. 1) trough
the external levers (Fig. 30 ref. 2) until the cone
complete clamping (Fig. 30 ref. 3) on the wheel
(Fig. 30 ref. 4).
Fig. 30
1
2
3
4
7. At the end of the operations, loosen the device re-
alising the cone with the external levers and then
move away the ring nut and the rim cone with the
little levers.
8. Lower the shaft to release it from its seat, turn it
of 90° on counter-clockwise and extract it from the
hole through the proper handle.
9. For wheels with alloy rims, use a proper plastic
guard (Fig. 31 ref. 1).
Fig. 31
NEVER LEAVE THE WHEEL FITTED
ON THE MACHINE FOR A PERIOD
LONGER THAN NECESSARY FOR
CARRYING WORK AND IN ANY CASE
NEVER LEAVE IT UNATTENDED.
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
